VICTORY I

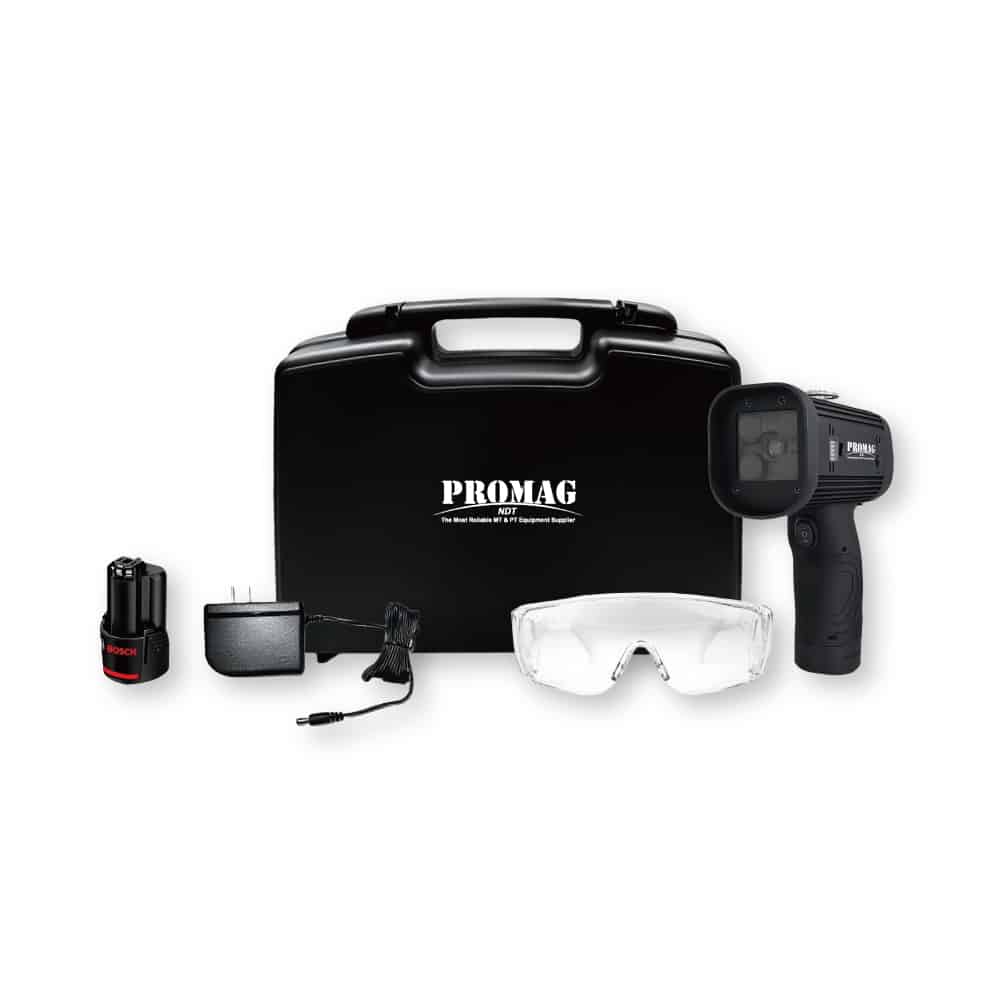

The PROMAG VICTORY I Handheld UV-A Lamp is a compact and durable inspection lamp designed for professional non-destructive testing (NDT) applications. Combining high-intensity UV-A illumination with a lightweight, portable design, it delivers reliable performance for extended inspection tasks. With flexible power options and a range of compatible accessories, VICTORY I offers a practical solution across diverse applications.

Download Materials

Datasheet

Product information:

Key Features

Four high-performance UV-A LEDs provide intense illumination for accurate inspections
Lightweight 600g design improves portability and reduces operator fatigue
Dual power options support both battery and AC power sources
Long service life of up to 20,000 hours
Robust dual design for durability and stability, ensuring reliable inspection results

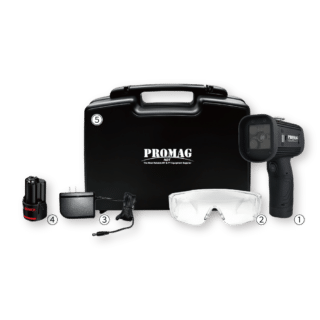

Compatible with optional accessories, including Bosch 3.0Ah battery, shoulder strap, and mobile phone holder

Applications

Non-destructive testing (NDT) inspections
Fluorescent Penetrant Inspection (FPI)
Magnetic Particle Inspection (MPI)
Aerospace maintenance and manufacturing
Automotive quality control
Industrial inspection and defect detection
Maintenance, repair, and overhaul (MRO) operations

Technical Specifications

Power Supply: Mains powered & Battery
Light Source: LED UV-A & White Light LED
Dimension (L×W×H): 14×6.5×18 cm (5.51×2.56×7.09 in)
Weight: 600 g (1.3 lb) (with battery pack)
Visible Light in UV-A Mode (38cm): ≤2 foot-candles (20 lux)
Visible Light Intensity in Visible Mode (38cm): 20 foot-candles (200 lux)
Power Requirements: 90–240 VAC
Battery Pack
- Type: 12V, Li-ion rechargeable battery
- Run time: 1.5 hours continuous
- Full Charge Time: 4 hours

*The outcome may vary depending on the actual usage conditions.
*Once the product is disassembled, the waterproof warranty is void.

S/N	P7110	P7111	P7113
Type	VIC1-AS1 (UV-A Only)	VIC1-AS (UV-A + WH)	VIC1-SD (UV-A + WH)
UV-A Intensity at 15"(38 cm ) (μW/cm²)	< 5,000	< 5,000	≥ 8,000
UV-A Coverage Area at 15"(38 cm)Minimum 1,000 μW/cm²	Ø7.87 ± 0.4 in (20 ± 1 cm)	Ø7.87 ± 0.4 in (20 ± 1 cm)	Ø6.7 ± 0.4 in (17 ± 1 cm)
RRES 90061	✓	✓
AITM6-1001	✓	✓
ASTM E3022	✓	✓	✓
