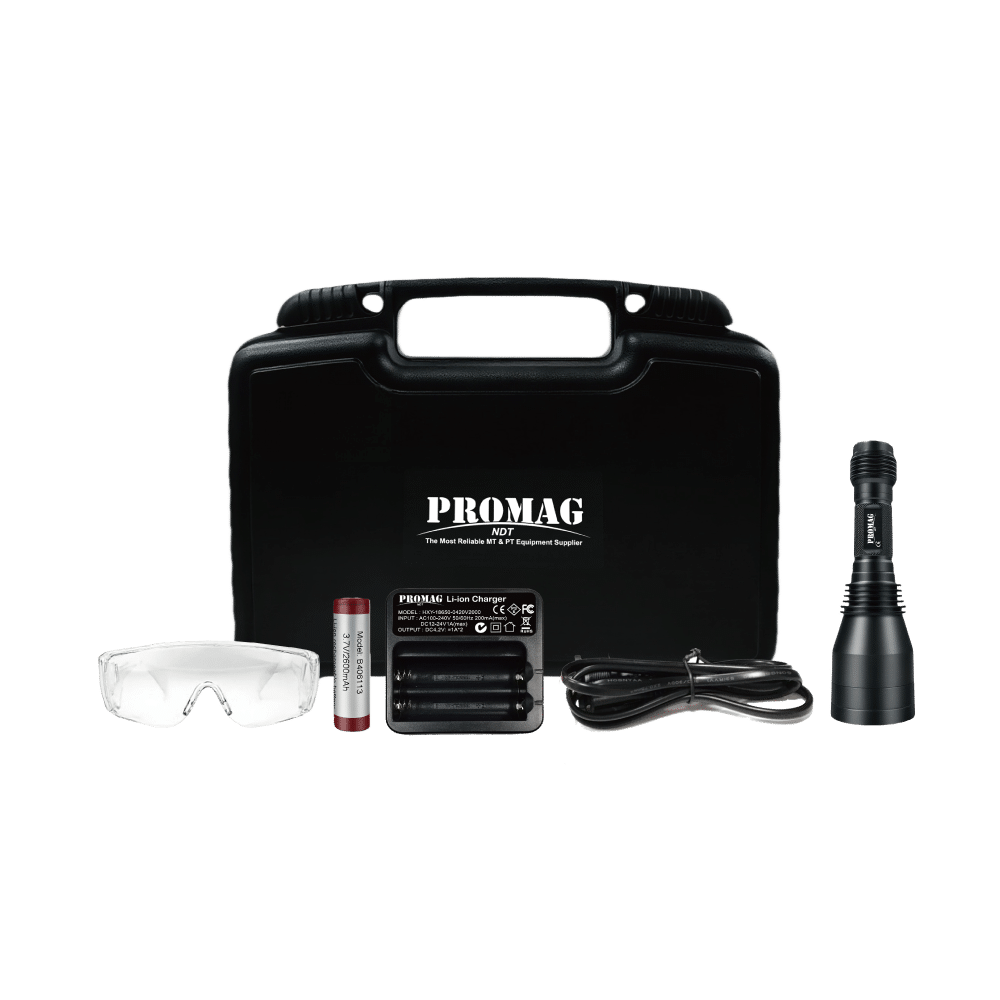

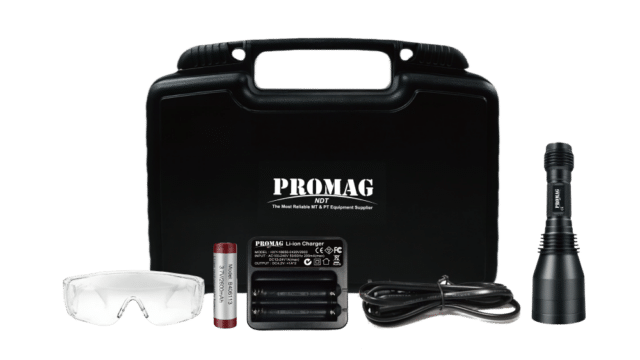

PROUV 100/200

The PROMAG PROUV 100/200 LED UV-A Inspection Flashlight is a lightweight and portable inspection tool designed for professionals who require reliable UV-A performance in the field or laboratory. Featuring an optimized 365 ± 5 nm UV-A spectrum, it delivers consistent illumination for accurate defect detection. With instant start-up, compact design, and long lifespan, the PROUV 100/200 is ideal for inspections of small components and difficult-to-access areas.

Download Materials

Datasheet

Product information:

Key Features

Optimized UV-A output at 365 ± 5 nm for precise inspection performance
Ultra-Light design (245 g) for comfortable one-handed operation
Compact and portable for use in laboratory and field environments
Instant full-power illumination with no preheating required
Long-lasting 50,000-Hour Lifespan
Ideal for inspecting small parts or hard-to-reach areas
Low-maintenance cost and long-term reliability

Applications

Non-destructive testing (NDT) inspections
Fluorescent Penetrant Inspection (FPI)
Quality control and defect detection
Inspection of small components and assemblies
Aerospace and automotive maintenance
Laboratory inspections and research applications
Field inspections in confined or hard-to-reach locations

Technical Specifications

Power Supply: Battery
Light Source: LED UV-A
Length: 16 cm (6.3 in)
Outer diameter: 4.5 cm (1.77 in)
UV-A diameter: 4 cm (1.57 in)
Weight: 245 g (0.54 lb) (with battery pack)
Power Requirements: Rechargeable Battery
Battery Pack
- Type: Rechargeable battery
- Run time: 2.5 hours continuous
- Full Charge Time: 4 hours

*The outcome may vary depending on the actual usage conditions.
*Once the product is disassembled, the waterproof warranty is void.

S/N	P7313	P7314
Type	PROUV 100 (UV-A Only)	PROUV 200 (UV-A Only)
UV-A Intensity at 15"(38 cm ) (μW/cm²)	≥10,000	≥20,000
UV-A Coverage Area at 15"(38 cm)Minimum 1,000 μW/cm²	Ø4.3 ± 0.4 in (11 ± 1 cm)	Ø 3.5 ± 0.4 in (9 ± 1 cm)
RRES 90061
AITM6-1001	✓	✓
ASTM E3022	✓	✓
