OWL-80

The PROMAG OWL-80 UV-A Headlamp is a lightweight, hands-free inspection solution designed for professionals performing non-destructive testing (NDT), quality control, and leak detection. Combining high-intensity UV-A illumination with an ergonomic wearable design, it enables inspectors to work efficiently while keeping both hands free for critical tasks. Its compact construction, cordless operation, and extended battery life make it particularly well suited for confined spaces, elevated work areas, and prolonged inspection activities.

Download Materials

Datasheet

Product information:

Key Features

Fully compliant ASTM E3022, EN ISO 3059, and Airbus AITM6-1001standards
High-performance 365 nm UV-A LED delivers clear fluorescent indications
Specialized filter glass eliminates visible light interference to maximize UV transmittance
Cordless operation eliminates cable hazards and improves freedom of movement
Rear-mounted battery design provides balanced weight distribution and wearing comfort
Up to 5 hours of continuous operation on a single charge

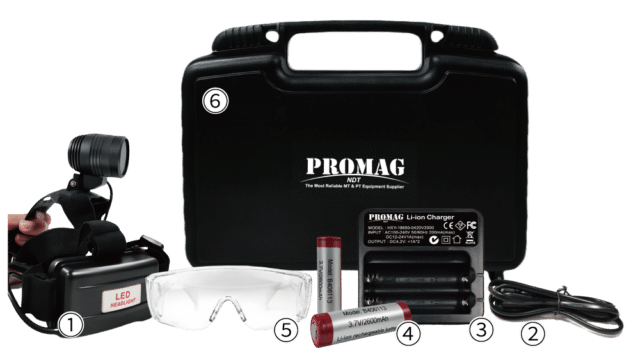

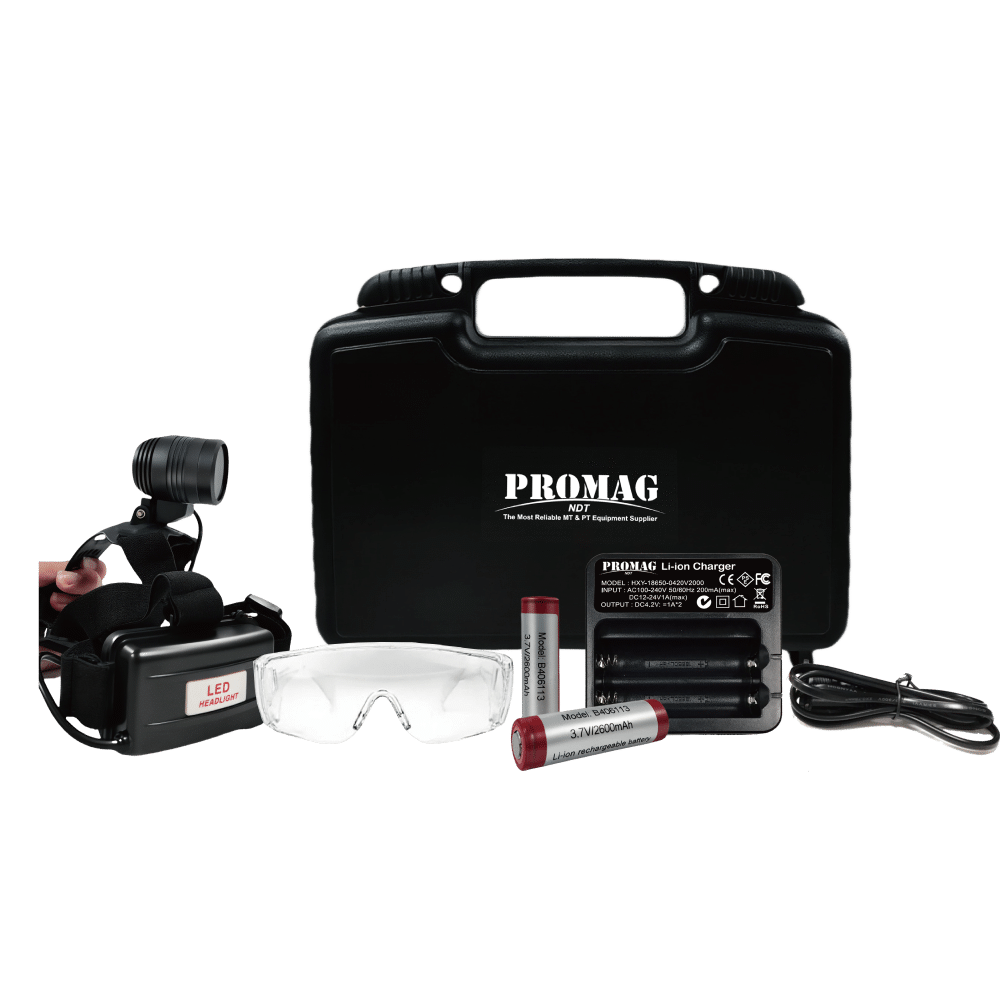

Extra spare battery and charger included for extended use
90° adjustable beam angle allows precise positioning of UV-A illumination
High-elasticity rubber strap fits securely on both heads and industrial safety helmets
Instant full-power brightness upon activation
Hands-free design improves inspection efficiency and mobility
Lightweight 238 g design reduces fatigue during extended use
Safe and pure UV-A content with limited UV-B and UV-C

Applications

Non-destructive testing (NDT) inspections
Industrial quality control and defect detection
Leak detection
Aerospace manufacturing and maintenance inspections
Inspection work in confined spaces and hard-to-reach areas
Maintenance, repair, and overhaul (MRO) activities
Field inspections requiring portable, hands-free UV-A lighting

Technical Specifications

Power Supply: Rechargeable Battery
Light Source: LED UV-A
Headlamp Length: 6.3 cm (2.48 in)
Headlamp Diameter: 4.8 cm (1.89 in)
UV-A Diameter: 4 cm (1.57 in)
Weight : 238 g (0.52 lb) (with battery)
Run Time: 5 hours continuous
Full Charge Time: approx. 4 hours
Requirements: 90–240 VAC

*The outcome may vary depending on the actual usage conditions.
*Once the product is disassembled, the waterproof warranty is void.

S/N	P7213
Type	OWL-80 (UV-A Only)
UV-A Intensity at 15"(38 cm )(μW/cm²)	≧ 10, 000
UV-A Coverage Area at 15"(38 cm) Minimum 1,000 μW/cm²	100 mm (Diameter)
RRES 90061
AITM6-1001	✓
ASTM E3022	✓
