PROUV 50

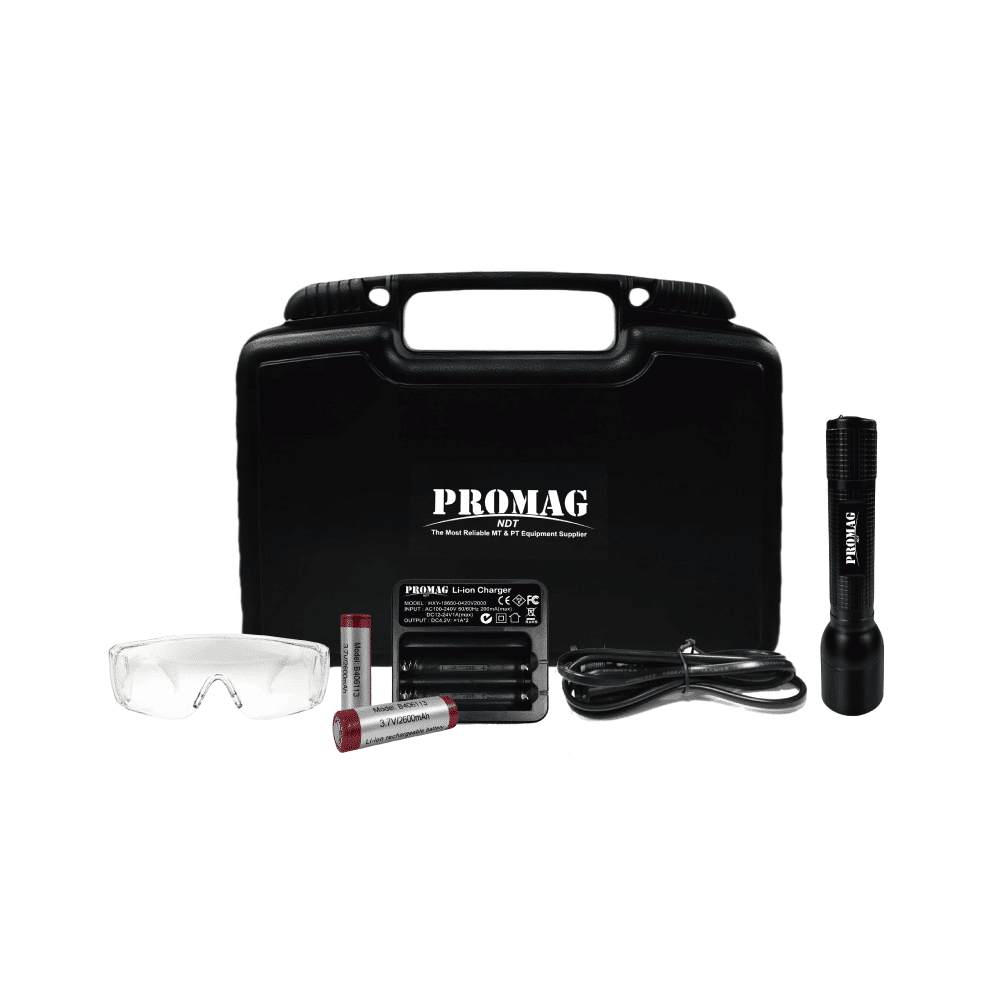

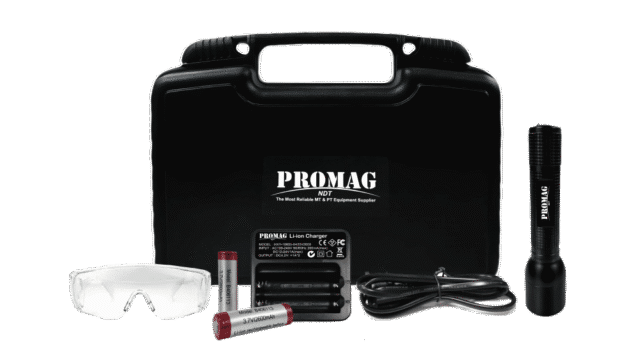

The PROMAG PROUV 50 LED UV-A Inspection Flashlight is a compact, high-performance inspection tool designed for applications that require precision and portability. Delivering optimized 365 ± 5 nm UV-A output, it provides reliable inspection in both laboratory and field environments. Its lightweight construction, instant start-up, and long operational life make it an ideal solution for inspecting small components and hard-to-access areas.

Download Materials

Datasheet

Product information:

Key Features

Optimized UV-A output at 365 ± 5 nm for accurate inspection performance
Ultra-Light design (213–245 g) for effortless one-handed operation in both laboratory and field environments
Compact, easy to carry and use in confined spaces
Instant full-power illumination with no preheating required
Long-lasting 50,000-Hour Lifespan
Ideal for inspecting small parts or hard-to-reach areas
Low-maintenance cost and long-term reliability

Applications

Non-destructive testing (NDT) inspections
Fluorescent Penetrant Inspection (FPI)
Quality control and defect detection
Inspection of small components and assemblies
Aerospace and automotive maintenance
Laboratory inspections and research applications
Field inspections in confined or hard-to-reach locations

Technical Specifications

Power Supply: Battery
Light Source: LED UV-A
Length: 16 cm (6.3 in)
Outer diameter: 3.5 cm (1.38 in)
UV-A diameter: 2.4 cm (0.94 in)
Weight: 213 g (0.47 lb)(with battery pack)
Power Requirements: Rechargeable Battery
Battery Pack
- Type: Rechargeable battery
- Run time: 2 hours continuous
- Full Charge Time: 3 hours

*The outcome may vary depending on the actual usage conditions.
*Once the product is disassembled, the waterproof warranty is void.

S/N	P7310
Type	PROUV 50 (UV-A Only)
UV-A Intensity at 15"(38 cm ) (μW/cm²)	< 5,000
UV-A Coverage Area at 15"(38 cm) Minimum 1,000 μW/cm²	Ø6.3 ± 0.4 in (16 ± 1 cm)
RRES 90061	✓
AITM6-1001	✓
ASTM E3022	✓
