HANSA

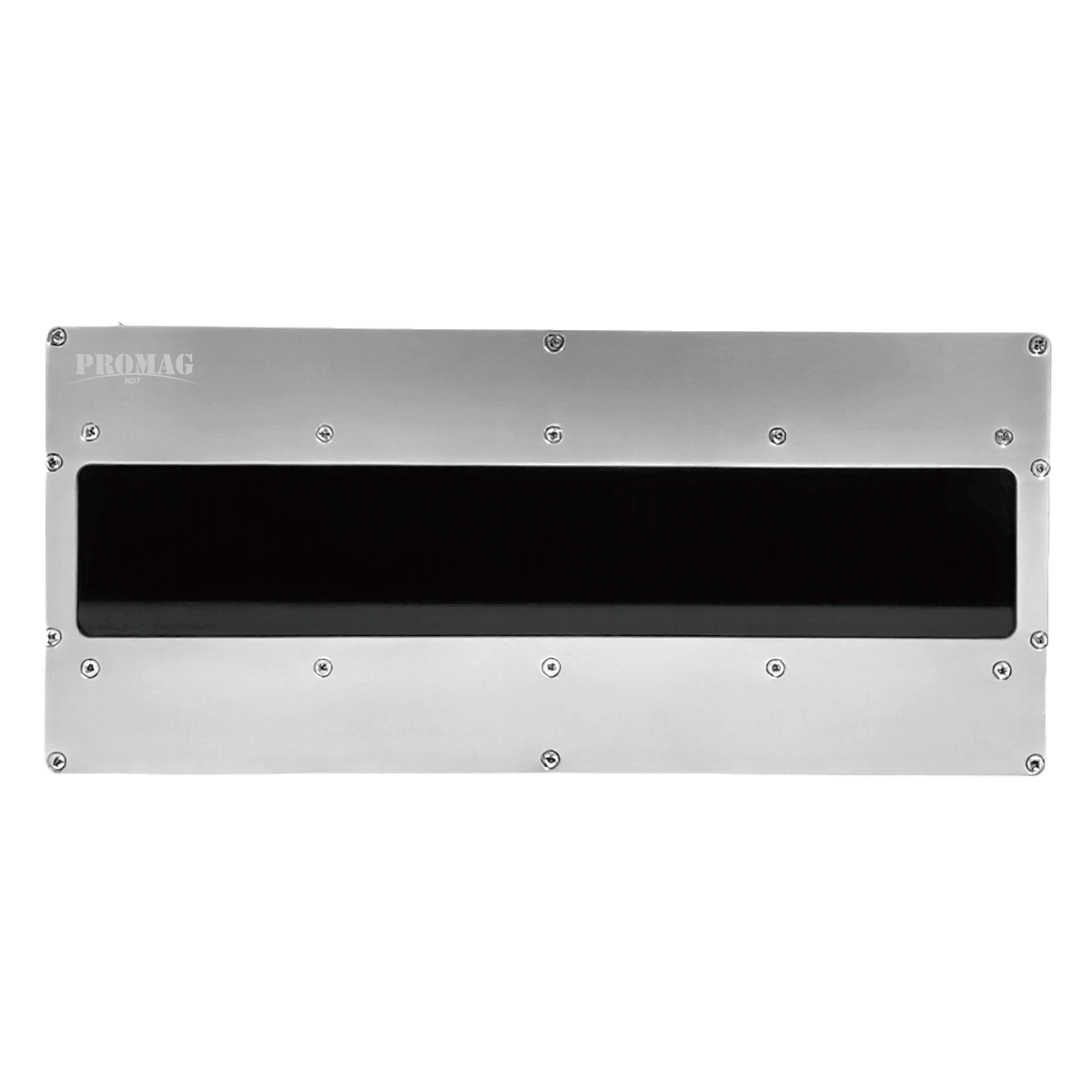

The PROMAG HANSA LED UV-A Overhead Lamp is a high-performance inspection tool built for reliability in demanding environments. Designed to deliver consistent UV-A output, it supports accurate inspection processes while maintaining durability and ease of use.

Download Materials

Datasheet

Product information:

Key Features

Optimized UV-A spectrum at 365 ± 5nm for accurate inspections
Flexible mounting options on both long and short sides
Modular design allows flexible expansion by connecting multiple units
Long operational lifespan of up to 50,000 hours
Operating efficiently within a 30℃–50℃ range
Wide and uniform UV-A coverage suitable for small to large components
Stable intensity output ensures consistent inspection results
Suitable for operation in humid and wet environments
Safe UV-A emission, free of UV-B and UV-C for operator protection
IP67 rating ensures dustproof and waterproof

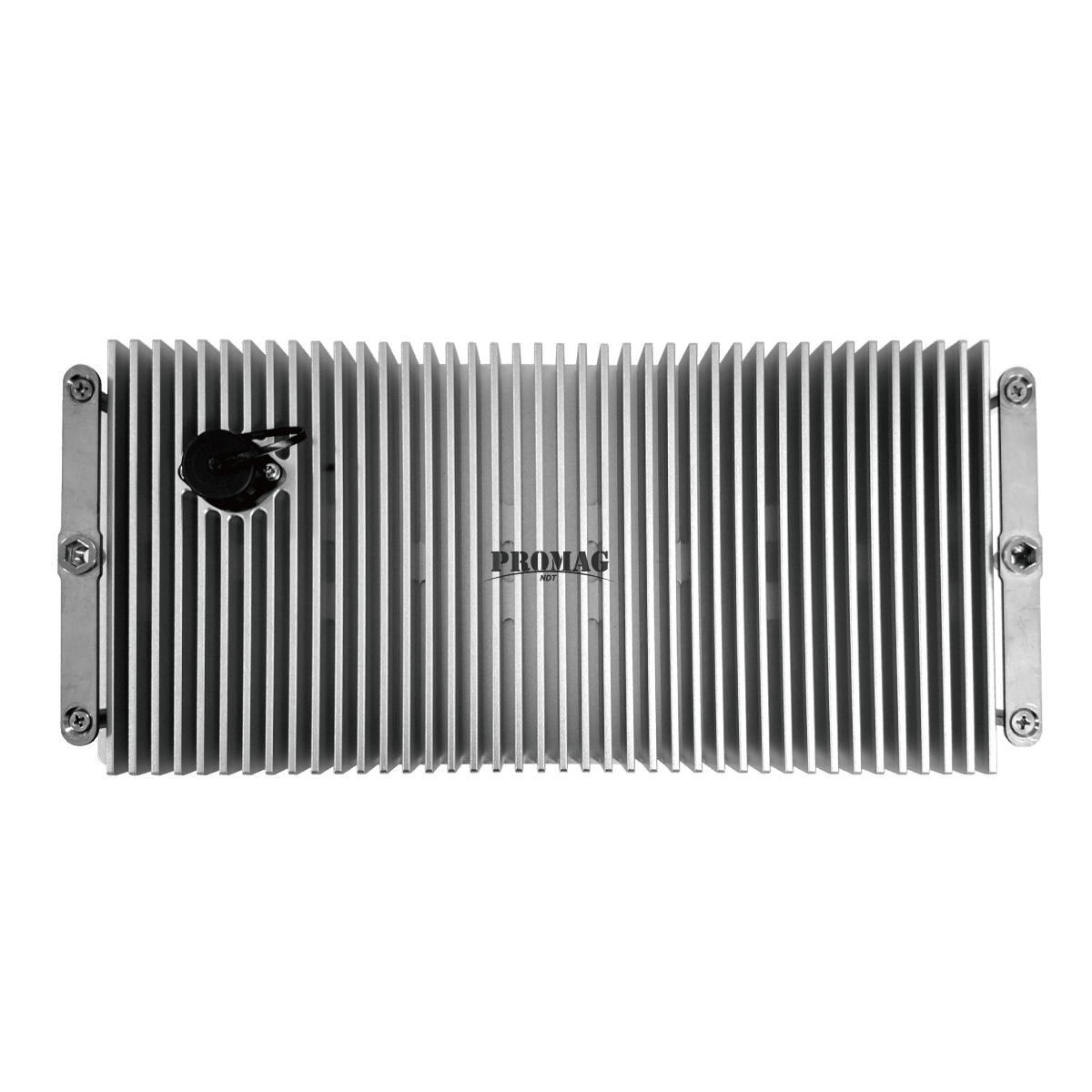

Rugged aluminum housing for durability and enhanced impact resistance
Lightweight design for portability and ease of handling

Applications

Non-destructive testing (NDT) inspections
Aerospace component inspection
Industrial quality control processes
Fluorescent penetrant inspection (FPI)
Inspection of large or complex surfaces requiring uniform UV coverage

Technical Specifications

Power Supply: Mains powered
Light Source: LED UV-A
Dimension(L×W×H): 32.5×14.5×6 cm (12.8×5.71×2.36 in)
Weight: 2,515 g (5.54 lb)
Visible Light in UV-A Mode (38cm): ≤2 foot-candles (20 lux)
Power Requirements: 90–240 VAC

*The outcome may vary depending on the actual usage conditions.
*Once the product is disassembled, the waterproof warranty is void.

S/N	P7722	P7726
Type	HANSA-AS1 (UV-A Only)	HANSA-SD (UV-A Only)
UV-A Intensity at 15'' (38cm) (μW/cm²)	<5,000	≥8,000
UV-A Coverage Area at 15in (38cm) at minimum 1000μW/cm²	21.65 x 13.8 ± 0.8 in (55 x 35 ± 2 cm)	21.65 x 13.8 ± 0.8 in (55 x 35 ± 2 cm)
RRES 90061	Yes
AITM6-1001	Yes
ASTM E3022	Yes	Yes
