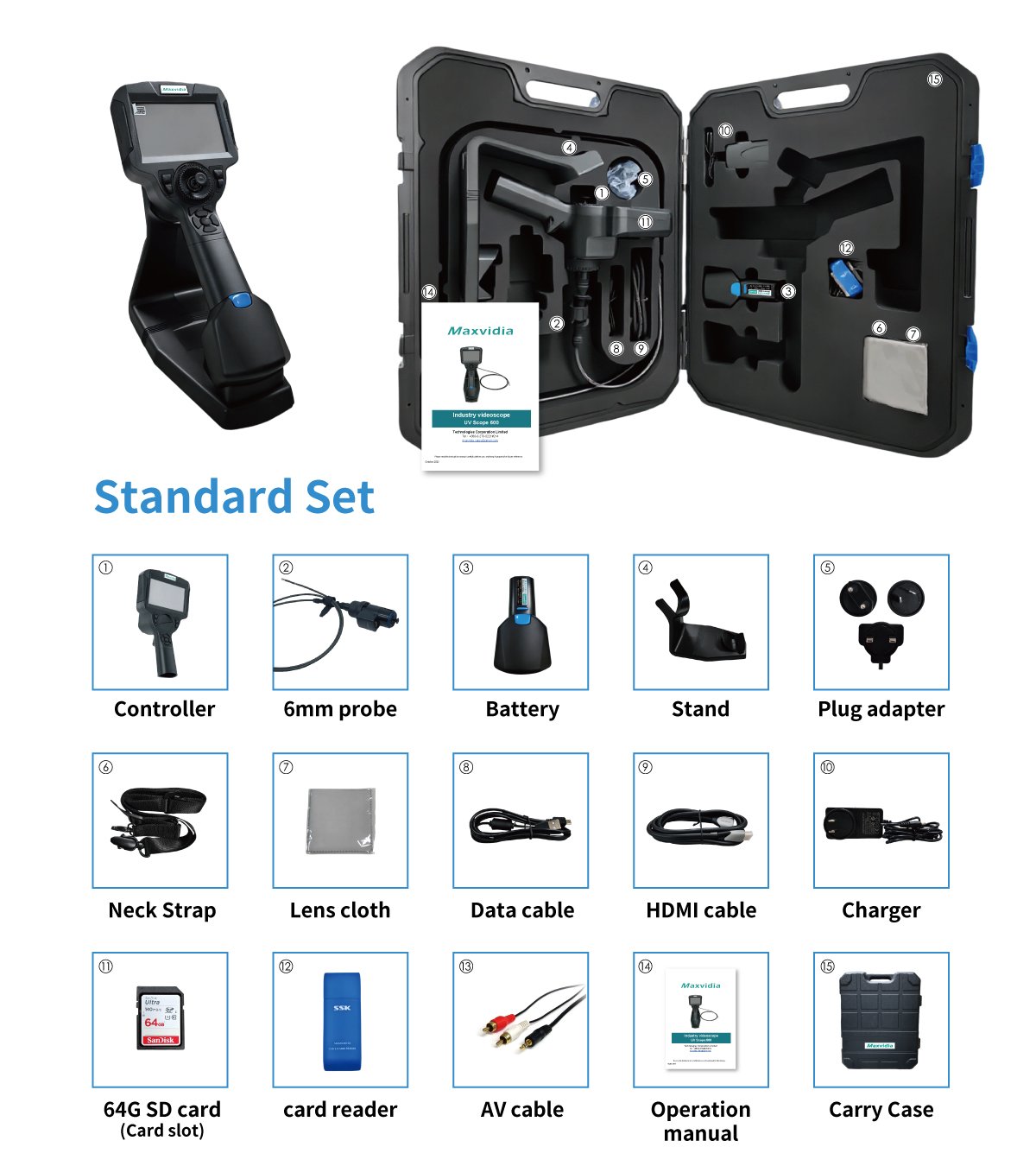

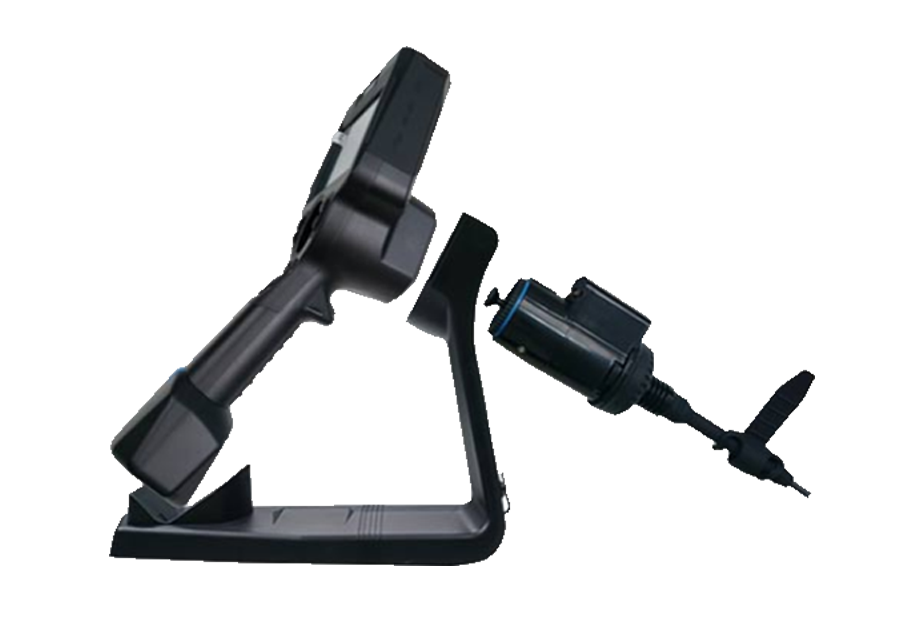

MAXVIDIA UV Videoscope Scope 600

Key Features

• Lightweight, portable design for easy transport and field use
• Highly durable and flexible insertion tube for accessing confined or difficult-to-reach areas
• Joystick-controlled 360° articulation for precise directional control
• 1.8GB built-in memory with support for 64GB SD cards
• Quick 5-second start-up for faster inspections
• Wireless charging dock for convenient charging and improved mobility
• 5" LCD touchscreen display (1280×720) provides sharp, detailed images
• High-Intensity LED Illumination
• High sensitiveness CCD/CMOS image sensor
• IP64-rated waterproof probe for reliable operation in demanding environments
• Rechargeable battery provides over 2 hours of continuous operation
• Intelligent imaging functions including one-touch 3D noise reduction, strong light suppression and real-time enhancement

Applications

• Aerospace: Airframe, Landing gear, Turbine blades, Combustion chamber
• Automotive: Engine parts, Cast parts, Assembled units, R&D, quality assurance
• Defense / Security: Aircraft maintenance, Police & special forces, Customs & border control, Search & rescue
• Power Generation: Turbine blades, Heat exchanger pipes, Wind gearboxes, Power plant equipment
• Oil / Gas / Chemical: Process pipes, Heat exchanger pipes, Tanks, Boiler maintenance

Technical Specifications

Controller

• Carton Dimension: 548 x 458 x 198 mm (21.57 x 18.03 x 7.8 in)
• Controller Weight: 1.2 kg (2.65 lb)
• Controller Size: 330 x 90 x 150 mm (12.99 x 3.54 x 5.91 in)
• Housing Material: ABS
• LCD: 5 inch 1280 x 720
• Contrast: 1000 : 1
• Brightness: 1000 cd/m²
• Display Frame Rate: 30 fps
• Articulation Control: Both mechanical and servo probe are available
• Interchangeable Probe: OK
• Output Interface HDMI / AV
• USB Interface: Mini-USB Type B
• Light Type: UV 365 nm LED
• Lamp Life: 10,000 Hours
• Brightness Control: Manual (5-level adjustment)
• White Balance: Auto / Manual
• Video Output: Manual, NTSC / PAL
• Video Input: NTSC / PAL
• SD Card: 64 GB

Software

• Image Format: JPEG 1024 x 768
• Video Format: AVI 720 x 576
• Operating System: Multitasking operating system, menu-driven and key operations
• Software Upgrading: Upgrade via USB flash drive
• Image Control: Real-time image 3x zoom, store image 3x zoom
• Languages: Chinese Simplified, Chinese Traditional, English, German, French, Korean, Russian, Italian, Japanese

Probe

• Diameter: 6.4 mm (0.25 in)
• Length: 16 mm (0.63 in)
• Testing Cable Length: 2 m / 3.5 m
• Photo Sensor: CMOS 1/7.5
• Effective Pixels: 720 P
• Depth of Field: 5 - 50 mm (0.2 - 1.97 in)
• FOV: > 120°
• Viewing Angle: 0°
• Illumination Style: 365 nm LED
• UV Irradiance: 2500 μW/cm²
• Articulation: 4 Ways
• Surface: Tungsten Braid
• Bending Direction: Electric 360°
• Bending Angle: 360° Rotation, > 90° Bending
• Control Mechanism: Electric Joystick
• Camera Working: -10°C ~ 50°C
• System Working: -10°C ~ 50°C
• Storage Temperature: -10°C ~ 50°C
• Liquid Proof: Oil, light oil or 5% salt
• Waterproof Level: IP64

Power Input

• AC Power Input: AC 100 - 240 V, 50 / 60 Hz, 0.35 A
• AC Power Output: 5 V / 3 A (Wireless Charging)

Battery

• Lithium Battery: 3.7 V / 9000 mAh
• Charging Time: 5 Hours
• Working Time: > 4 Hours
