Clean Solution

PROMAG Clean Technologies provides customized industrial cleaning, washing, rinsing, drying, and surface-treatment systems for components across demanding manufacturing and processing environments.

From compact ultrasonic cleaning tanks to fully automated chemical cleaning lines, PROMAG systems can be configured to suit component size, contamination type, production volume, process requirements, and level of automation.

Applications include degreasing, precision cleaning, stripping, surface preparation, NDT processes, and the removal of oil, grease, dirt, chips, polishing compounds, carbon, paint, wax, casting residues, oxides, smut, ink, and other contaminants.

Download Materials

Brochure

Product information:

Dynamic Flow Combination

PROMAG immersion systems use controlled mechanical movement within the processing chamber to improve cleaning, rinsing, and drying performance.

The integrated elevator system moves components into and out of each chamber while continuously agitating the parts during processing. This creates a dynamic flow around the components, helping reduce standing waves and part shadowing while providing more consistent surface coverage.

The result is improved cleaning performance, more uniform processing, and shorter cycle times compared with static immersion processes.

Tank Unit

PROMAG PUM-Series Clean Machine uses high-efficiency ultrasonic technology to achieve consistent cleaning performance. Transducers can be positioned on the base or sides of the tank according to the application, allowing the ultrasonic waves to be directed where it is most effective.

Key Benefits

High-performance ultrasonic cleaning technology
Fully digital, precisely tuned and energy-efficient generators
Fast and consistent cleaning cycles
Compact designs for space-constrained installations
Achieves top-level cleanliness for demanding applications
Ergonomic design for easy handling
Cost-effective solution with long-term reliability

PUM	Tank dimensions (inside) / mm
S	500 × 500 × 300
M	800 × 800 × 600
L	1200 × 1200 × 600
C	Customization

Ultrasonic Cleaning System Line

PROMAG ultrasonic cleaning systems are available in manual, semi-automated, and fully automated configurations, providing flexible solutions for different production volumes and process requirements.

Advanced control systems simplify operation and maintenance, while mid-range ultrasonic frequencies generate vibrations that help remove contaminants from difficult-to-reach areas, including miniature holes.

Key Benefits

Effective cleaning of complex components and hard-to-reach areas
Mid-range ultrasonic technology for deep and consistent cleaning
Material handling solutions for heavy components
Increased cleaning efficiency and production capacity
Integrated controls for ease of operation and maintenance
Stainless steel 304 or 316 construction
Fully encapsulated design to support operator safety and a good working environment

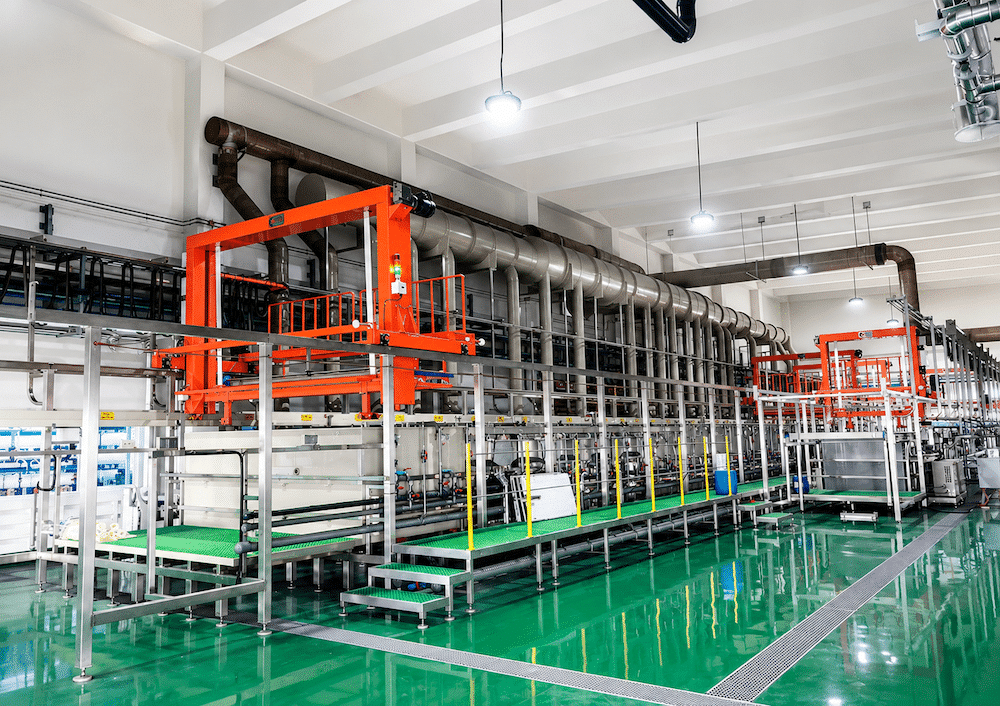

Automated Chemical Cleaning Systems

PROMAG chemical cleaning lines allow components to be immersed in chemical solutions for processes such as degreasing, rust inhibition, stripping, and surface preparation.

Depending on the application, chemical stages may use alkaline degreasers, surfactants, rust inhibitors, and other processing solutions to remove oil, paint, coatings, scale, grit, and other deposits before subsequent manufacturing or inspection processes.

Systems can be configured with multiple processing stages, automated part handling, controlled immersion times, and safety features designed to reduce operator exposure to aggressive chemicals.

Key Benefits

Manual or fully automated operation
Strict adherence to quality standards
Environmental-friendly technology
Customized handling and process configurations
Designed for production efficiency and consistent results
Safety-focused system design
Suitable for demanding industrial environments

Clean Cabinet

For large components requiring crane handling, PROMAG Clean Cabinets provide an enclosed environment for washing and preliminary cleaning.

These systems are particularly suitable for removing heavy grease and oil before subsequent chemical cleaning or surface-treatment processes.

Integrated exhaust systems provide ventilation and mist removal, while waterproof lighting improves visibility during manual cleaning operations.

Dryer / Oven

PROMAG designs industrial dryers for applications including component cleaning, powder coating, NDT processes, and other operations requiring reliable and safe heat circulation control.

Available configurations include:

Cabinet dryers
Walk-in dryers
Motorized conveyor dryers
Dryer stations
Top-loading systems
Side-loading systems
Two-way loading systems
Walk-in loading systems

Temperature control and air circulation are engineered to provide uniform heating across the drying chamber. Systems can be customized to suit component dimensions, loading requirements, production volumes, and process specifications.

Wash-jet Machine

PROMAG Wash-Jet machines use high-pressure spray systems to remove grease, dirt, and other contaminants from component surfaces.

Constructed from stainless steel 304 or 316, the systems can be configured for multi-stage automated cleaning and integrated with oil separation and filtration systems to improve process efficiency and reduce operating costs.

Strategically positioned spray nozzles provide comprehensive component coverage and can be configured for rotating or angled cleaning to suit different geometries.
