MPG Power Pack

The PROMAG MPG Series are high-performance multi-directional power generators designed for demanding Magnetic Particle Inspection (MPI) applications across automotive, steel, oil & gas, forging, and casting industries. Offering configurable magnetization, high and stable current output, and multi-directional control, it provides a flexible and cost-effective solution for both on-site, weld, and large-scale NDT inspections.

Download Materials

Brochure

Product information:

Key Features

Multi-directional magnetization for complex inspection requirements
Supports AC, HWDC, and FWDC magnetization modes
Configurable current output from 2,000 A to 10,000 A
Digital ammeters displays independently monitored outputs for quick calibration audits
System memory of 30 sets
Manufactured under ISO 9001 quality standards
Calibrated according to ASTM E709, ASTM E1444, and EN ISO 9934-3
Modular construction simplifies maintenance, calibration, repairs, and future upgrades

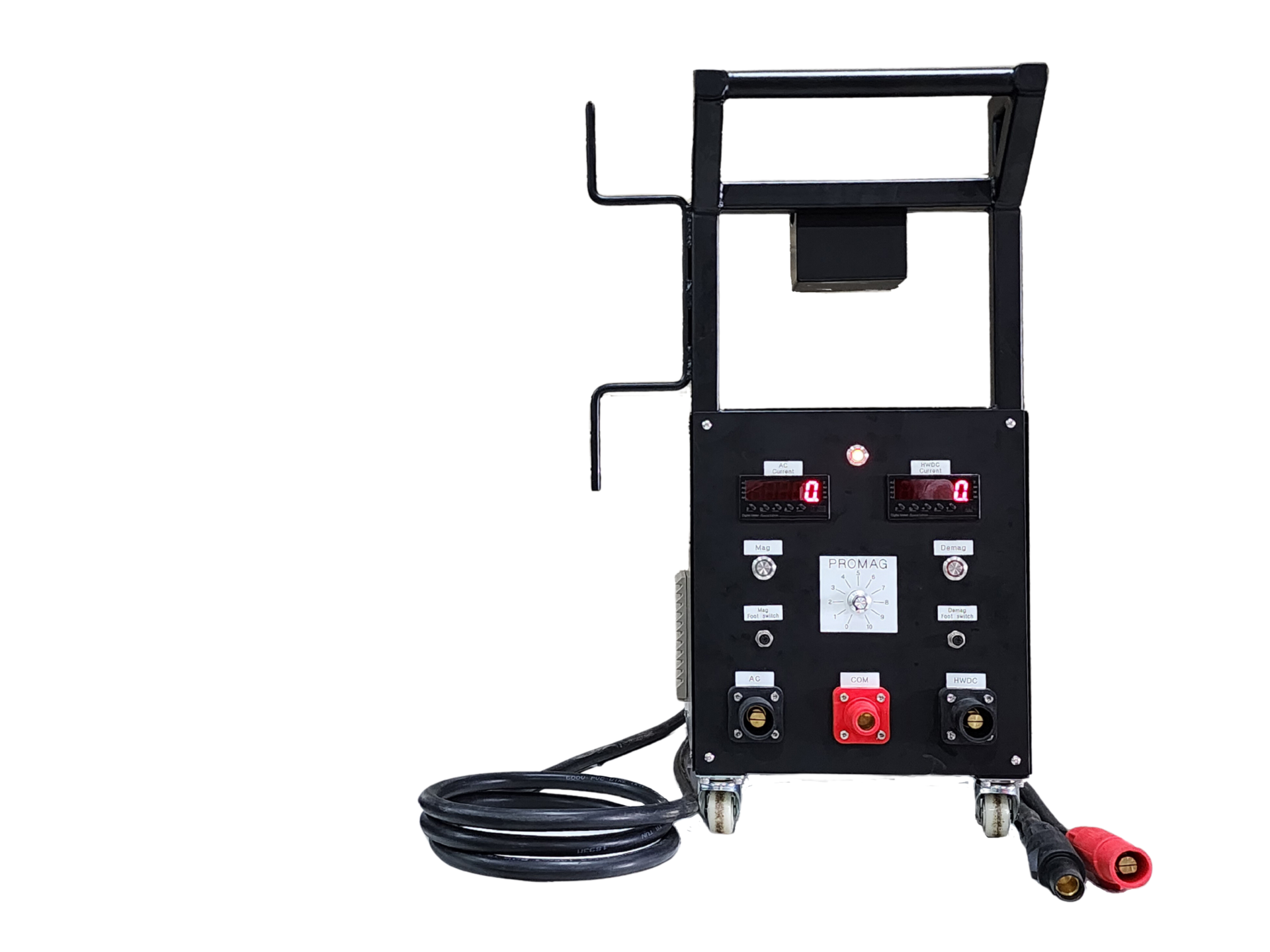

An excellent mobile solution for heavy components that cannot be easily moved, in-service equipment, and job-site weld evaluations

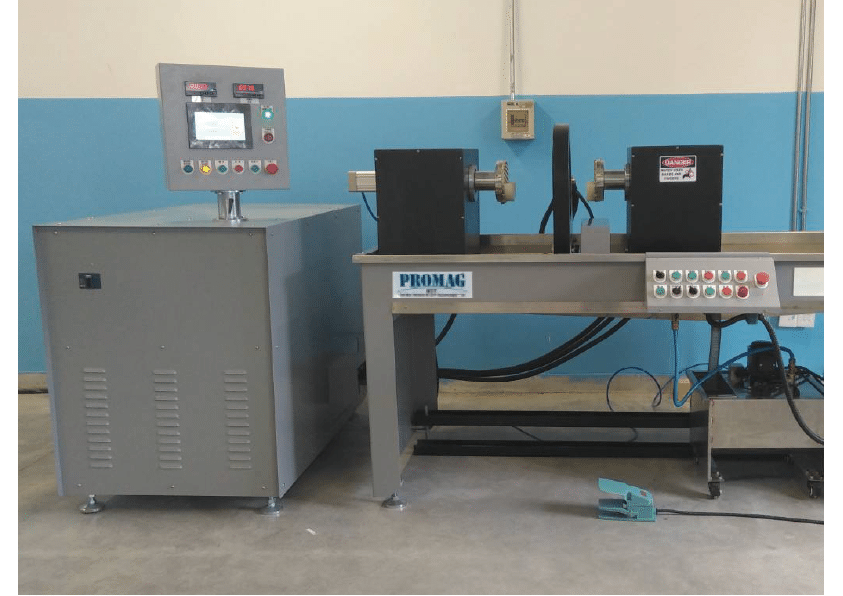

Easily integrate with customized stationary benches, auto-handling equipment, or upgrade older MPI systems

Optional Upgrades & Integrations

Full Magnetization Remote Control: Manage magnetization, demagnetization, power on/off, and active current adjustment remotely
Magnetization & UV Light Integration: Connect active magnetization controls directly with compatible UV inspection lighting for streamlined MPI workflow
Integrated Automated Conveyor Systems: Automatically transfers and aligns components inside testing lines upon software request
Foot Push Buttons & Alternative Activations: Add tailored triggers including foot switches, proximity sensors, or dual-button safety triggers to suit specific workflows
Expanded Memory: Increase storage capacity from 30 to 50 / 100 sets
CE Approval: CE-certified marking available on request

Applications

Automotive component inspection and high-volume defect detection
Steel mill inspection of rolled, forged, and heavy-duty steel components
Oil & gas inspection of pressure vessels, pipelines, and field welds
Forging and casting inspection for surface and subsurface defects
On-site weld inspection of in-service steel structures
Heavy-component inspection where equipment cannot be easily transported
Production-line MPI systems and automated inspection workflows
Quality control and maintenance inspection across heavy industries

Technical Specifications

MPG Series	Model A Portable	Model X Mobile Power Pack		Model Y Multi-Directional		Model C Customized
Machine Type	HDA-2020	FDA-6025	FDA-1040	3FDA-6025	3FDA-1040	—
Magnetization Performance
Mag. Current Type	AC & HWDC	AC & FWDC	AC & 1P FWDC	AC & 3P FWDC	3P FWDC	Available on Request
Contact Capacity (Max. Current)	2,000 A	AC 2,500 A FWDC 6,000 A	AC 4,000 A 1P FWDC 10,000 A	AC 2,500 A 3P FWDC 6,000 A	AC 4,000 A 3P FWDC 10,000 A	Available on Request
Control & Power Supply
Mains Supply	230 / 380 / 415 / 480 V · 50 / 60 Hz (230 V only design for 2,000 A. Spec. confirmed before order placing.)					Available on Request
Physical Specifications
Dimensions (L×W×H)	600 × 350 × 800 mm / 23.6 × 13.8 × 31.5 in	Power Pack 6,000 A 1100 × 700 × 930 mm / 43.3 × 27.56 × 36.6 in Power Pack 10,000 A 1300 × 900 × 1050 mm / 51.18 × 35.4 × 41.3 in		Power Pack 6,000 A 1100 × 700 × 930 mm / 43.3 × 27.56 × 36.6 in Power Pack 10,000 A 1300 × 900 × 1050 mm / 51.18 × 35.4 × 41.3 in		Based on Final Capacity
Weight	Up to 80 kg (176 lb)	Power Pack 6,000 A = Up to 380 kg (838 lb) Power Pack 10,000 A = Up to 460 kg (1,014 lb)				N/A
