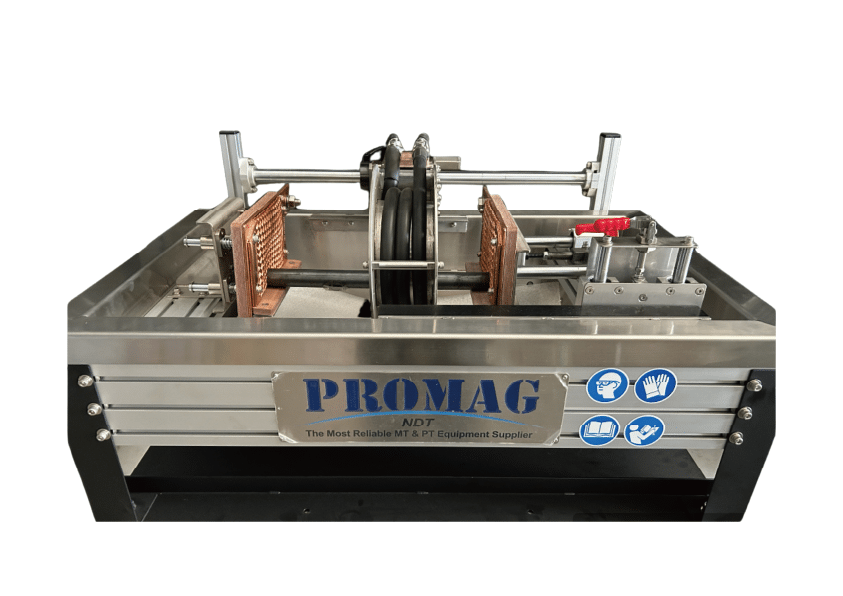

ECO MPI Bench
The PROMAG ECO MPI Series is a wet stationary magnetic particle inspection (MPI) system designed for quality control, laboratory testing, and educational applications. Manufactured under ISO 9001 quality standards and calibrated to ASTM E709 and ASTM E1444, it delivers reliable and consistent inspection performance. Its lightweight, portable design and customizable system make it a practical solution for small-quantity sampling, third-party laboratories, testing facilities, and academic institutions.
Download Materials
Product information:
Key Features
- Manufactured under ISO 9001 quality management standards
- Calibrated to ASTM E709 and ASTM E1444 requirements
- Lightweight, easy to operate, and the bench stand could be disassembled easily to carry around.
- Moveable coil application
- Variable-position headstock features a secure manual clamping system supporting standard 200 mm copper pads with an optional 300 mm upgrade
- Independent, stepless adjustment of circular and longitudinal magnetic fields for precise inspection control
- Integrates advanced MPG & MTB modular technology, providing high-performance magnetization output at a highly competitive pricing structure
- Customizable bench length and optional features to suit different workpiece sizes and inspection requirements
Applications
- Magnetic Particle Inspection (MPI) of ferromagnetic components
- Quality control (QC) and quality assurance (QA) inspections
- Third-party testing and inspection laboratories
- Material testing and certification centres
- Small-batch production and sampling inspections
- Educational and training institutions
- Research and development laboratories
Technical Specifications
| Model A Compact |
Model B Large |
Model C Customized |
|
|---|---|---|---|
| Machine Type | 2010 | 3016 | — |
| Physical Dimensions | |||
| Dimensions (L×W×H) | 528 × 368 × 235 mm 20.79 × 14.49 × 9.25 in |
888 × 534 × 300 mm 34.96 × 21.02 × 11.81 in |
Available on Request |
| Weight | 30 kg (66 lb) | 50 kg (110 lb) | Available on Request |
| Contact Pad (W×H) | 130 × 80 mm 5.12 × 3.15 in |
— | Available on Request |
| Magnetization Capacity | |||
| Clamping Length | 200 mm 7.87 in |
300 mm 11.81 in |
Available on Request |
| Coil ID | Ø 100 mm 3.94 in |
Ø 160 mm 6.3 in |
Available on Request |
