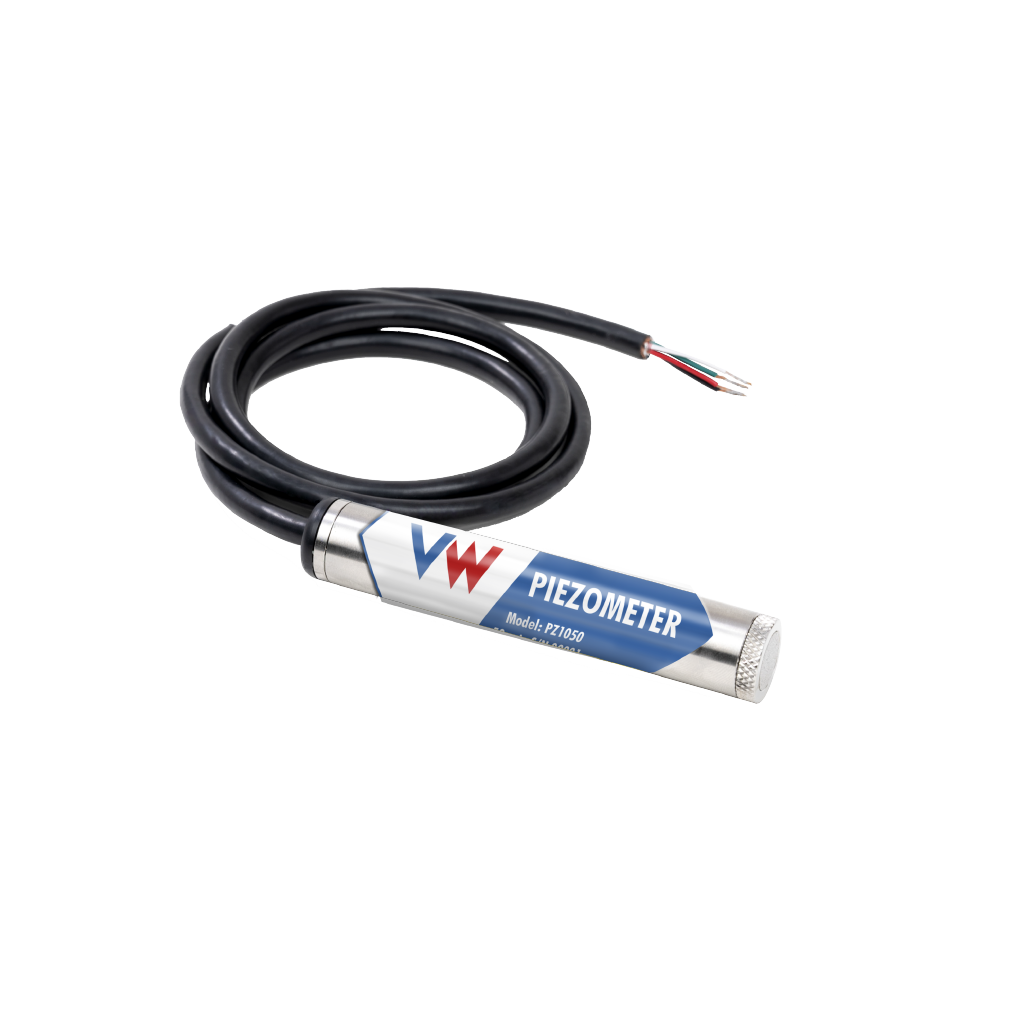

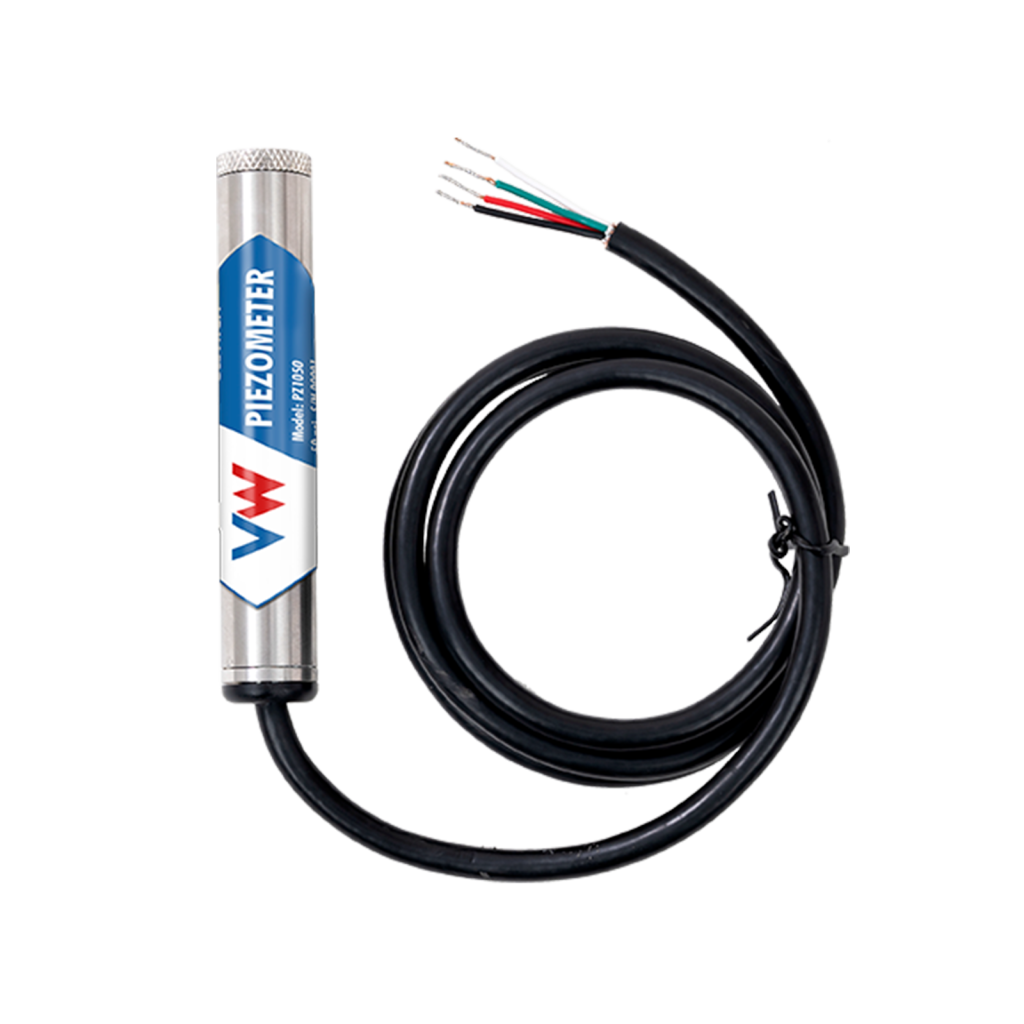

VW Piezometer
The Sanlien VW Piezometer is a high-precision vibrating wire sensor designed to measure groundwater levels and pore water pressure in a wide range of geotechnical and civil engineering applications. Robust and durable, it ensures reliable, long-term monitoring in challenging conditions.
Product information:
Key Features
- Alloy pressure sensor
- Multi-layer cable sealing for long-term reliability
- Temperature sensor
- Mechanical locking system
- Wide applications range from dams to tunnels and mining wells
Applications
- Suitable for dams, tunnels, mining wells, and soft ground surfaces
- Groundwater level monitoring
- Borehole pressure measurement
- Structural health monitoring, geotechnical investigations, machinery analysis,
- Environmental studies, research and development
Technical Specifications
- Sensor Type: Vibrating Wire Sensor
- Temperature Type: Thermistor, resolution 0.1°C
- Measuring Range: 50 psi or 100 psi
- Working Temperature: -40°C to 125°C
- Accuracy: ±0.1% F.S.
- Filter: 50-micron sintered stainless steel
- Max Pressure: 150 %
- Resolution: 0.025% F.S.
- Material: SUS316 Stainless Steel
- Dimension (W x L x H): 20.2 x 114 x 20.2 mm
- Signal Cable: 4 wire
