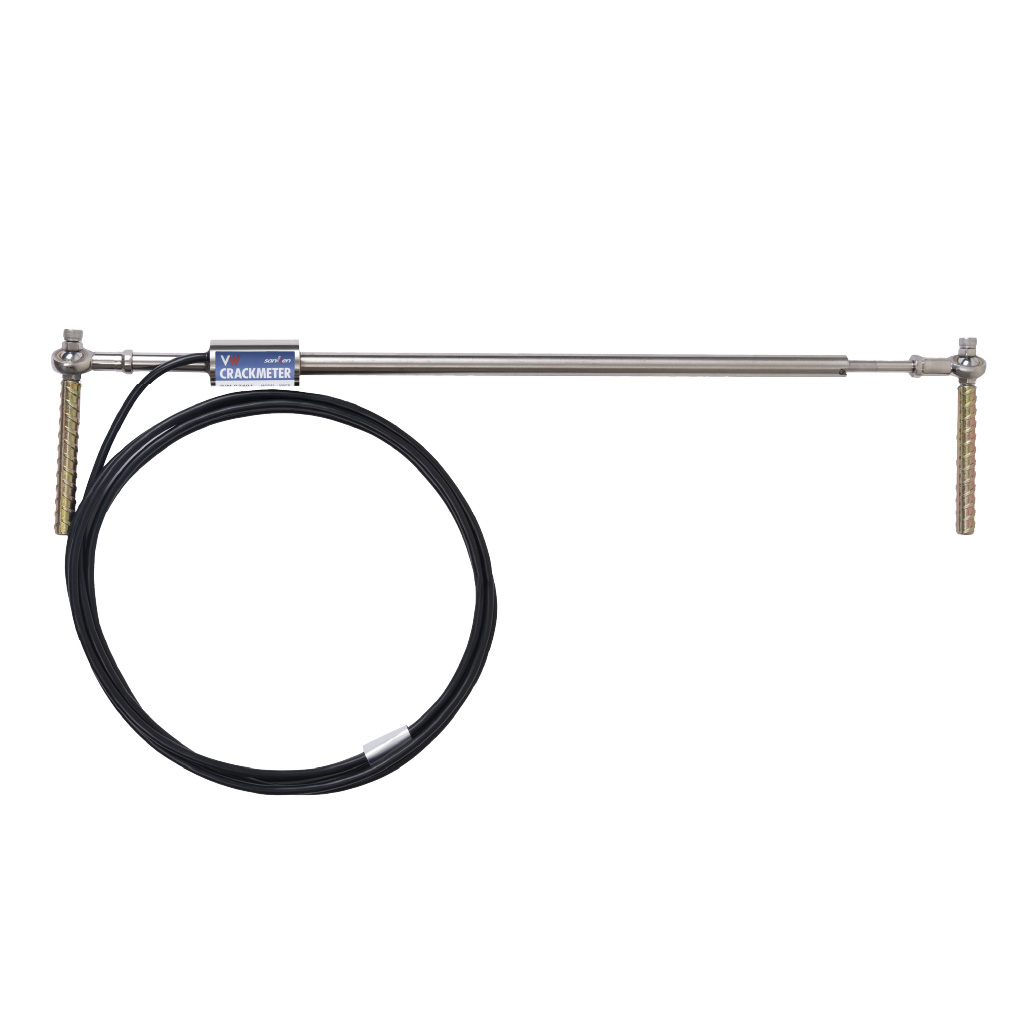

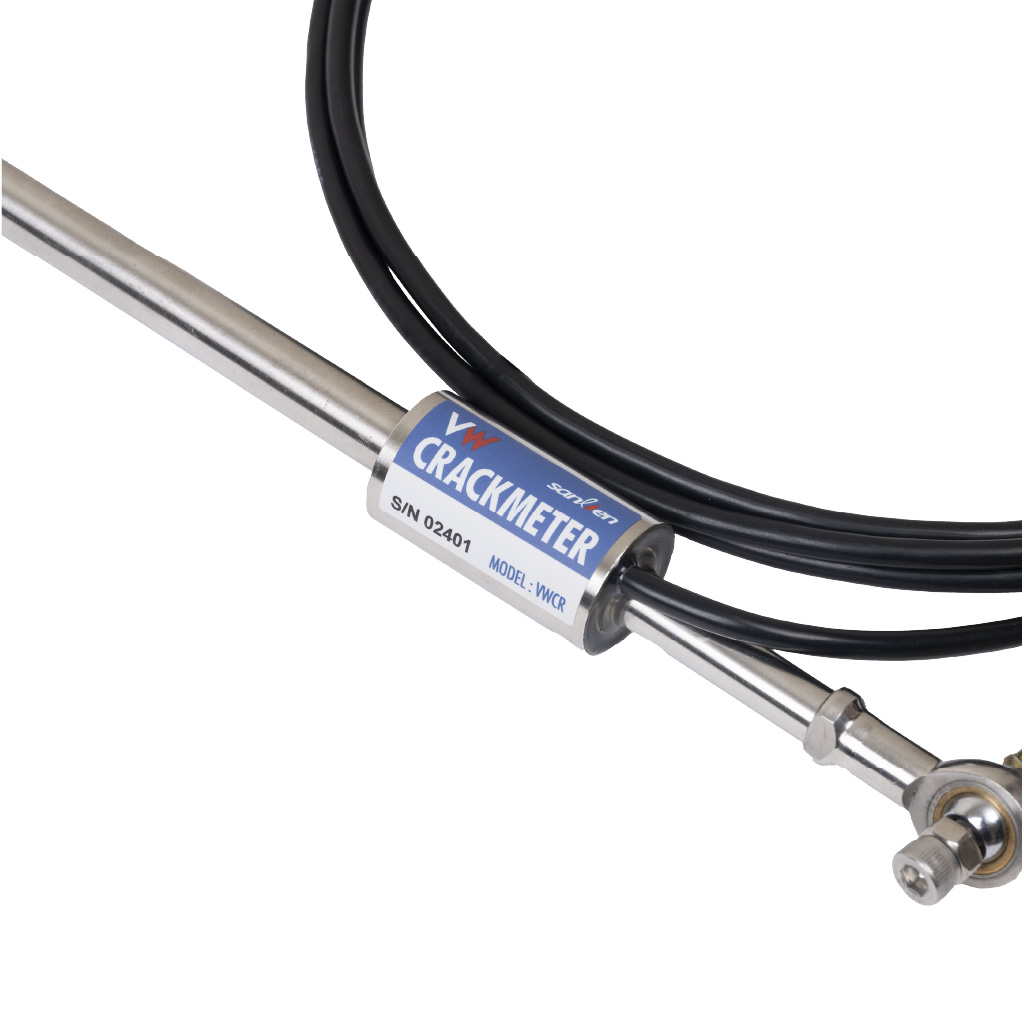

VW Crackmeter
The Sanlien VW Crackmeter is designed for precise crack measurement. Comprising a vibrating wire and a stainless steel tension spring, this instrument ensures reliable, long-term monitoring even in harsh conditions.
With a special 4-core shielded cable, the VW Crackmeter maintains accuracy, unaffected by variations in cable length. As cracks open or close, the connecting rod shifts within the transducer body, altering the spring tension and modifying the resonant frequency of the wire to deliver precise readings.
Download Materials
Product information:
Applications
- Structural monitoring for buildings, bridges, dams and pipelines
- Inner global universal joint allows for some displacement
- Measuring both the opening and closing of cracks or joints
Key Features
- High accuracy and long-term stability
- Reliable performance in demanding environments
- Waterproof and durable design
- Compatible with manual or remote reading
- Integral thermistor for temperature monitoring
Technical Specifications
- Range: 12.5, 25, 50, 100, 150, 200, 250, 300 mm
- Temperature Range: -20°C to 80°C
- Resolution: 0.025% F.S.
- Accuracy: ±0.1% F.S.
- Dimensions: Dia.12 mm (sensor) Dia. 25 mm (coil)
