Vibration Meter

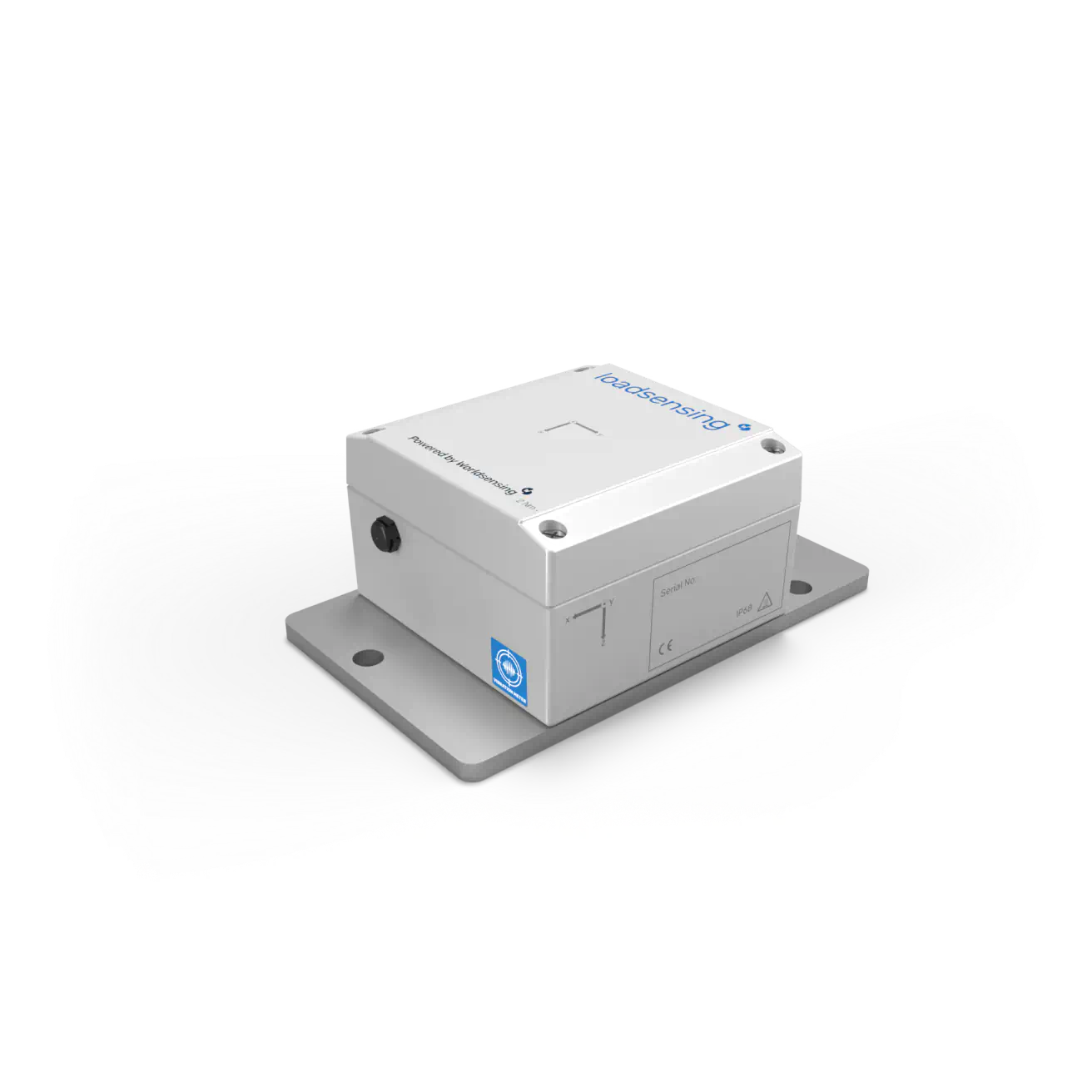

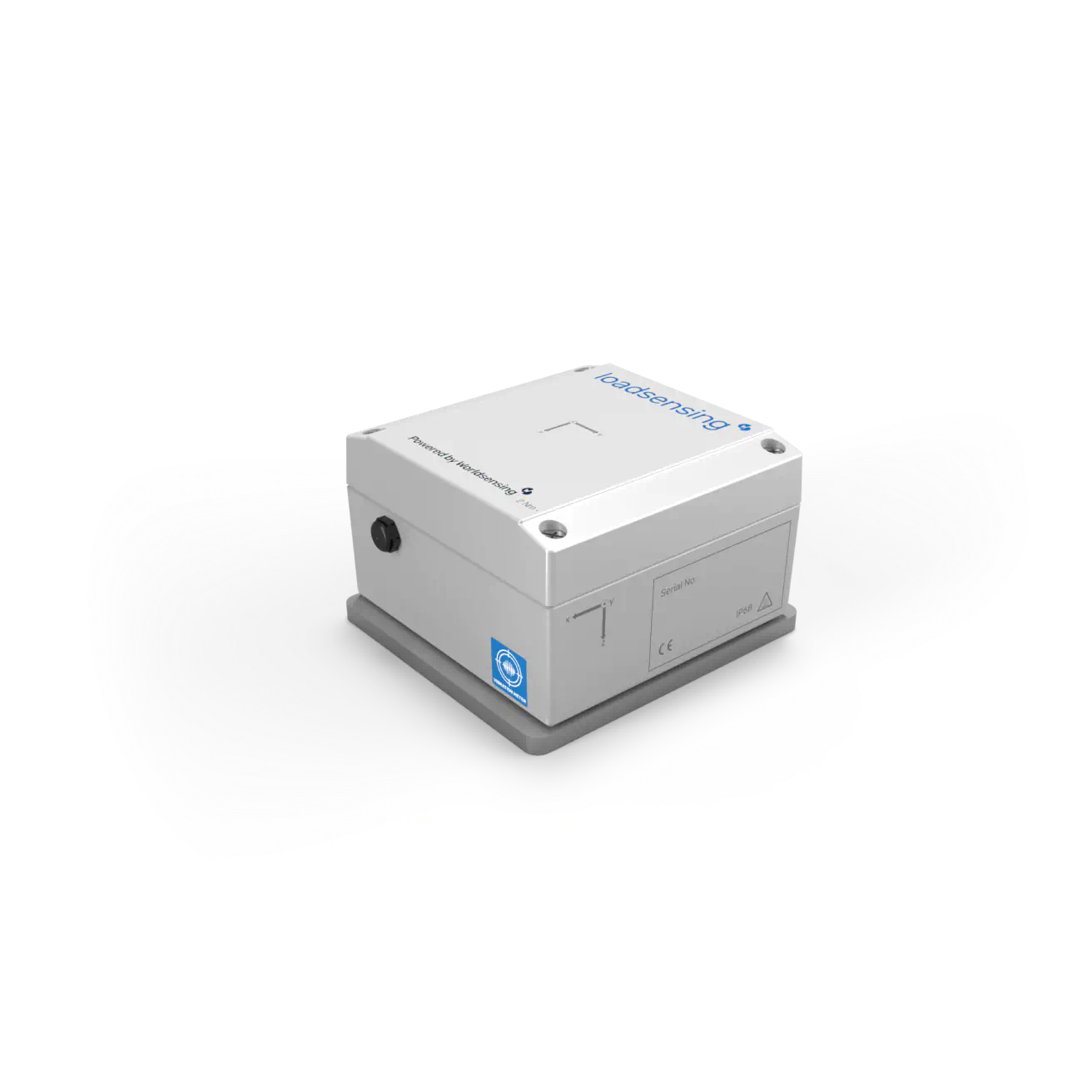

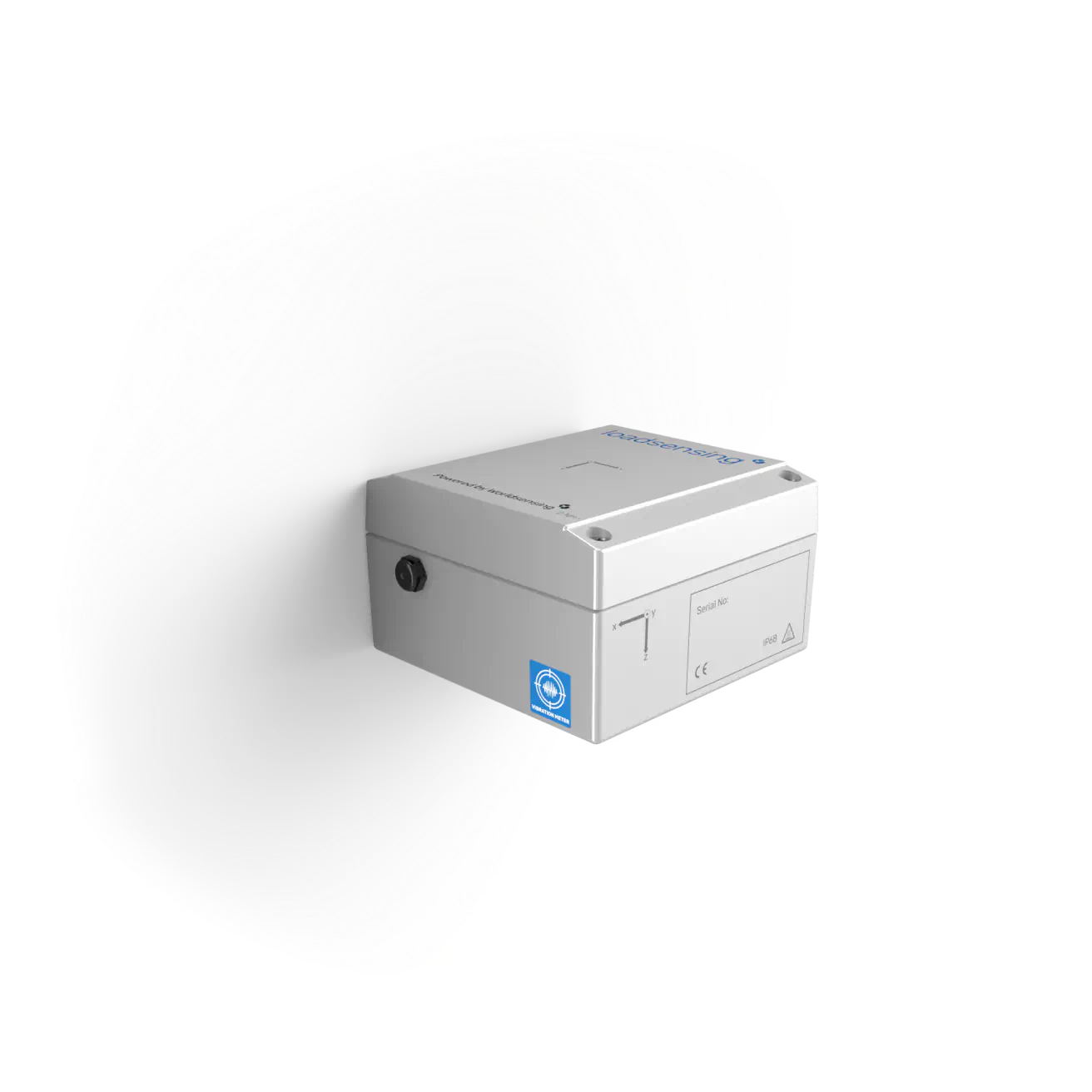

The Worldsensing Vibration Meter is a wireless 3-axis MEMS accelerometer designed for continuous, long-term vibration monitoring in construction, tunneling, and infrastructure environments. With a sampling rate of up to 1000 Hz derived from a 4k Hz signal, it delivers high-precision vibration measurements. Its built-in edge algorithm detects threshold breaches for vibration-based events using LAW/PPV and frequency, ensuring accurate and timely alerts.
Offering up to 1.5 years of battery life and extended communication ranges underground, the Vibration Meter provides a reliable for vibration monitoring.

Download Materials

Datasheet

Product information:

Key features

Two operational modes (PPV and MTVV) provide processed vibration data that complies with the majority of vibration regulations

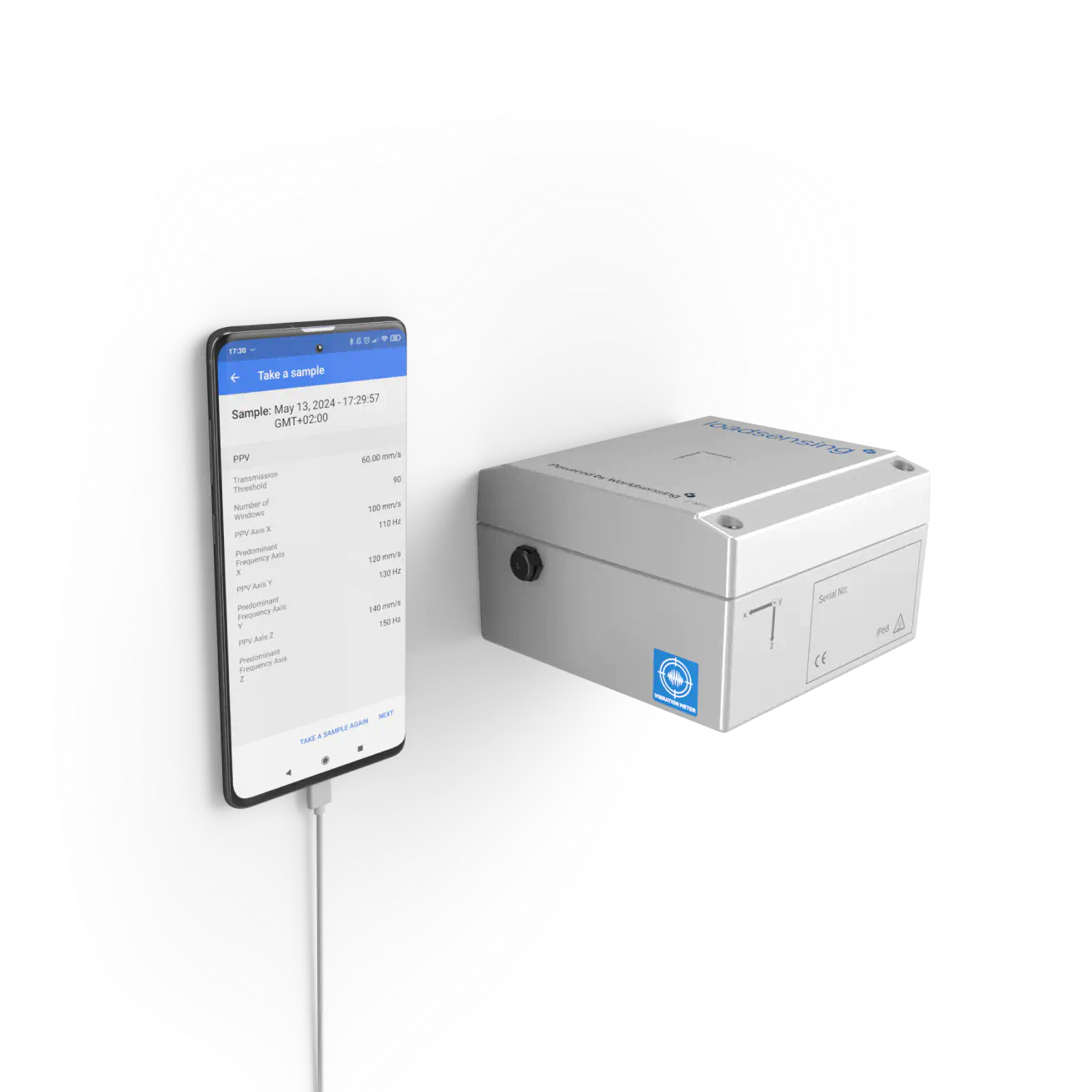

Configurable thresholds and reporting periods using both CMT or the Worldsensing App
Alert mode uses the secondary threshold to have highly critical events reported automatically in a shorter reporting period
Waveform data of events exceeding the alert threshold is stored in the device’s internal memory
Great communication ranges underground, with up to 10 km using repeaters
Compatible with Worldsensing’s single-net and multi-net configurations

Applications

Monitor the impact of vibrations created by industrial activities
Monitor the impact of industrial activities on surrounding infrastructure

Technical Specifications

Sensor type: 3-axis MEMS accelerometer
Operation modes: PPV-based and MTVV-based
Sampling rate: 1000 Hz derived from a 4k Hz signal
Noise floor: 22.5 μg/√Hz
Original frequency band: 0.5 - 250 Hz
Power source: 1 x 3.6 V D-size replaceable battery
Data transmission: LoRa radio communications (ISM sub GHz)
Operating temperature: -40º C to 80º C
Weather protection: IP68
System configuration: Locally via Worldsensing App or remotely using CMT Edge on single-net deployments and CMT Cloud on multi-net deployments

PPV-based operation mode specifications

Reported parameters: PPVx,y,z (mm/s), fx,y,z (Hz), T (ºC), PVS (mm/s)
Range (velocity): 0-60 mm/s (±0.01 mm/s)
Frequency output range: 1 -100Hz (±0.5 Hz)
