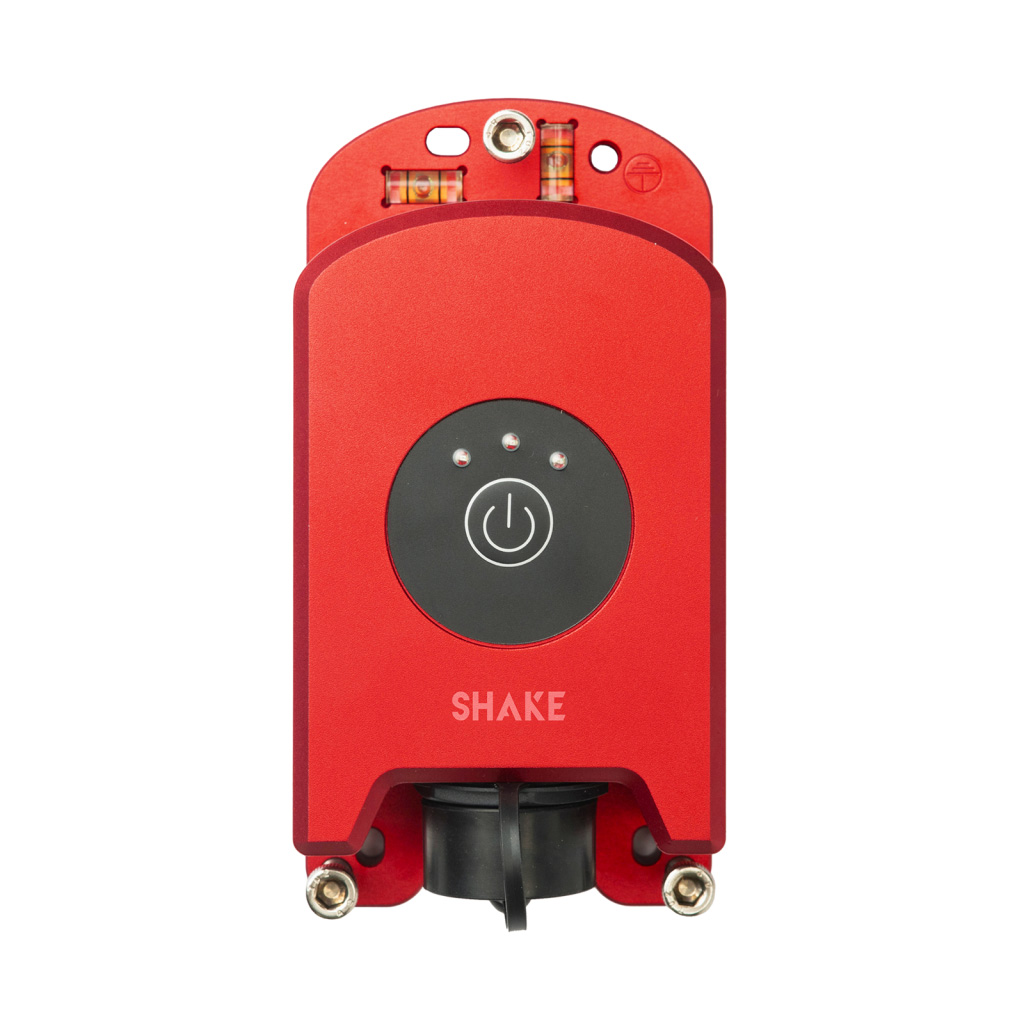

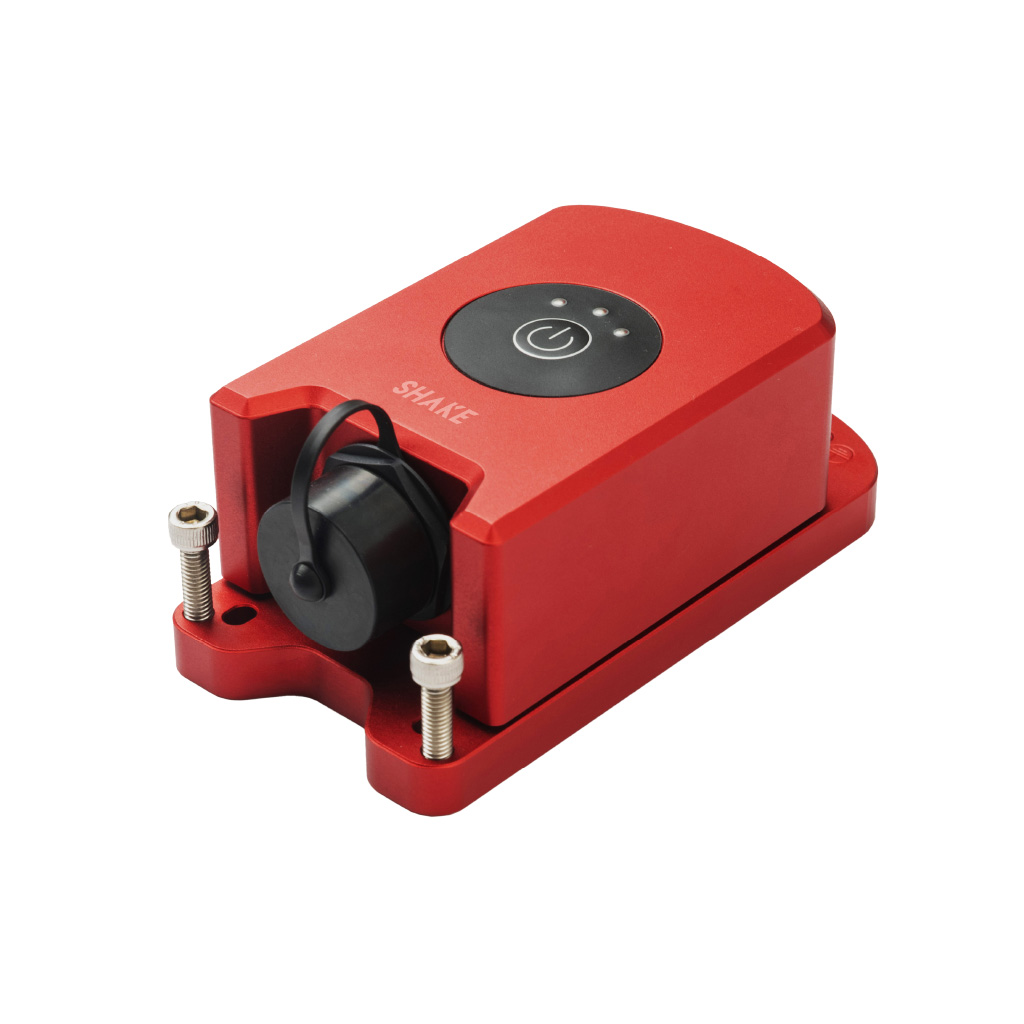

SHAKE SD300
Tri-axial MEMS Accelerometer
The Sanlien SHAKE SD300 is a tri-axial digital MEMS accelerometer designed for structural health diagnostics (SHD) and vibration monitoring. It features a high-performance MEMS sensor and a powerful CPU that enables Real-time Data Stream and continuous monitoring.
Multiple units can be connected to a PX01/CUBE datalogger for real-time recording and event forwarding, or integrated with SanDAS software for waveform viewing, data recording, and post-event analysis. The SHAKE SD300 offers a flexible and efficient solution for evaluating structural safety, detecting early-stage fatigue, and supporting comprehensive risk management for buildings, bridges, and other infrastructures.
Download Materials
Product information:
Applications
- Structural Health Monitoring (SHM)
- Cable-stayed bridge monitoring
- Vibration monitoring
- Infrastructure life-cycle assessment
- Ideal for building or bridge monitoring
- Post-earthquake structural safety evaluation
Key Features
- Built-in Web GUI for easy configuration
- Compatible with SanDAS software for data recording and analysis
- Supports Ethernet PoE for plug-and-play
- Real-time data recording and event forwarding via PX01/CUBE
- Time synchronization via NTP
- Rugged IP67 waterproof design for outdoor use
Technical Specifications
- Sensor Type: Tri-axial digital MEMS accelerometer
- Measuring Range: ±2 g, ±4 g (factory configured)
- Dynamic Range: 100 dB
- Sample Rate: 100 SPS, 200 SPS, 500 SPS, 1000 SPS
- Self-Noise: 22.5 μg / √Hz
- Shock Resistance: 5000 g (0.1ms)
- Digital Resolution: 24 bit
- Communication: RJ-45 PoE
- LED Display: Power, status, link
- Mount Mode: Horizontal / vertical (adjustable with PX01)
- System Configuration: Via web interface
- Time Synchronization: NTP (Network Time Protocol)
- Power Supply: PoE (Power over Ethernet, 12VDC)
- Power Consumption: ≦1 Watt
- Operating Temperature: -20°C to 70°C
- Relative Humidity: 5% – 90% RH (Non-condensed)
- Waterproof: IP67
- Weight: 550 g
- Dimension (L x W x H): 137 x 75 x 55 mm
