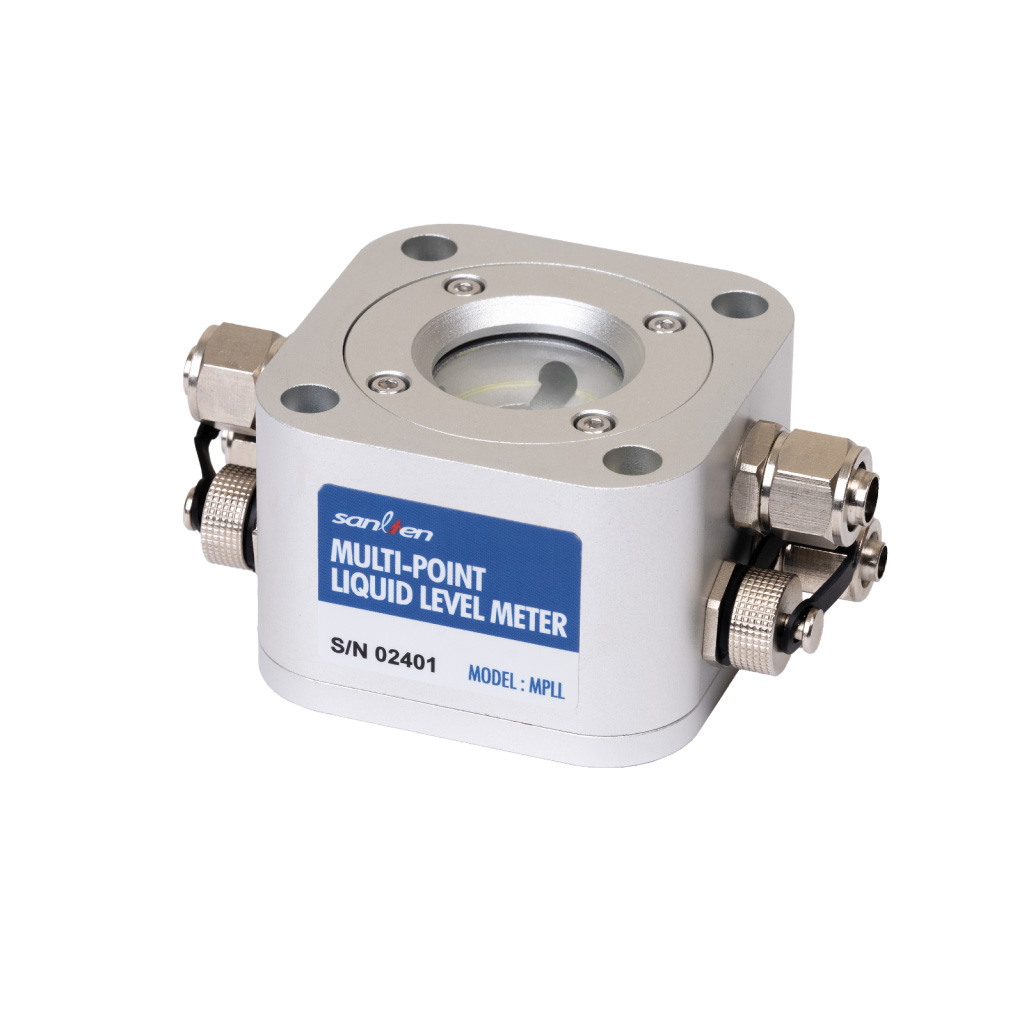

Multi-Point Liquid Level Meter
The Sanlien Multi-Point Liquid Level Meter is a hydraulic static level meter that utilizes liquid pressure measurements to calculate liquid level height.
Compact and durable, it features a small footprint, high precision, and exceptional long-term stability, making it suitable for a wide range of monitoring applications.
Equipped with an RS-485 communication interface and intuitive host software, the instrument allows users to configure parameters such as range, filtering, and sampling rate.
Download Materials
Product information:
Applications
- Measurement values between observation and reference points are read during settlement
- Calculations based on these measurements provide the settlement height of the observation point
- Ideal for long-term monitoring for bridges, tunnels, buildings and pits
Key Features
- Customizable measuring range
- Low power consumption for continuous monitoring
- Robust aluminum alloy casing
- Waterproof design for field durability
- Suitable for integration and development across various system requirements
Technical Specifications
- Product Function: Vertical displacement (settlement) measurement
- Power Consumption: Working current 18 mA
- Installation Method: Screw fixing
- Communication: RS-485 Modbus
- Measurement Range: 1000 mm
- Operating Temperature: -25 °C to 85 °C
- Accuracy: 0.05% F.S.
- Temperature Compensation: -20 °C to 70 °C
- Resolution: 0.01 mm
- Dimensions (LxWxH): 68 x 68 x 47 mm
- Power Supply: DC 5-12 V
