CUBE
Onsite Control & Display Interface

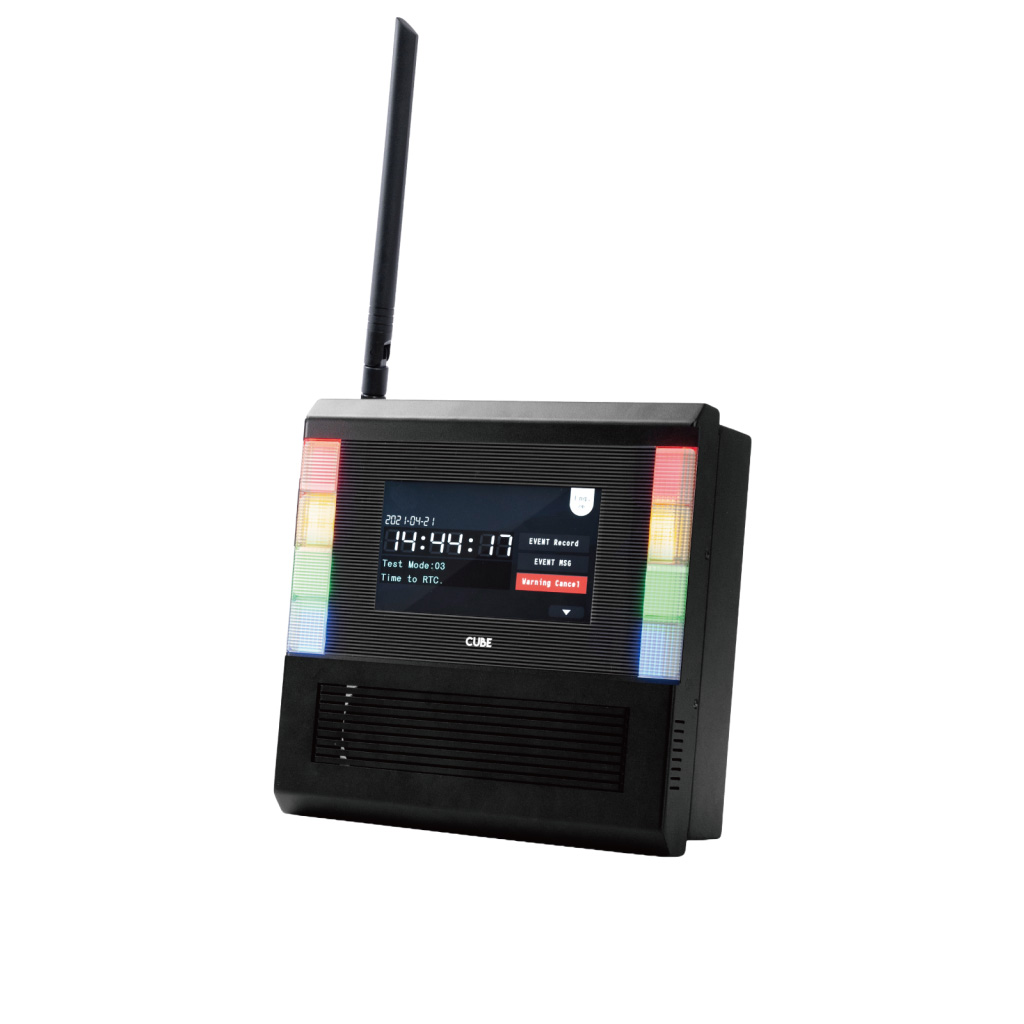

CUBE is a powerful onsite earthquake early warning command center, alarm device and datalogger, featuring visual, voice, and dynamic text display via its 4-phase LED indicator, built-in speaker, and 7-inch touch screen. It supports Modbus protocol for users to integrate into the SCADA, MES, or other management programs. The SeedLink protocol is also supported in CUBE for 3rd-party accelerographs to integrate. With its N-of-M voting algorithm, it ensures reliable event detection. The built-in HAZUS-based Rapid Structural Health Diagnostic (RSHD) algorithm provides a quick structural assessment within one minute of a felt earthquake.
Download Materials
Product information:
Applications
- Earthquake Early Warning System (EEWS)
- Structural Health Monitoring (SHM)
- Rapid Structural Health Diagnostic (RSHD)
- Best suited for manufacturing plants, commercial buildings, and residential complexes
Key Features
- 7-inch touchscreen with LED indicators and built-in speaker
- Easy access by built-in Web GUI
- Onsite early warning
- Regional early warning
- Modbus protocol
- HAZUS quick structural damage assessment algorithm
- RSHD cloud service available upon request
- IoT connectivity
- N-of-M voting algorithm
Technical Specifications
- Indicator: 4-color LED indicator
- Time Synchronization: NTP
- Display: Industrial-class 7″ touch interface
- Power Consumption: 12W@24VDC
- Working Temperature: -20°C to 70°C
- Speaker: High-dB speaker 4Ω
- RTC Accuracy: ±60 sec/year, supporting NTP synchronization
- Relative Humidity: 5 – 90% RH, no condensate
- Storage: 32 GB (up to 64GB)
- Weight: 5.3 kg
- Relay: 4 sets
- Dimension (W x H x D): 290 x 290 x 100 mm
