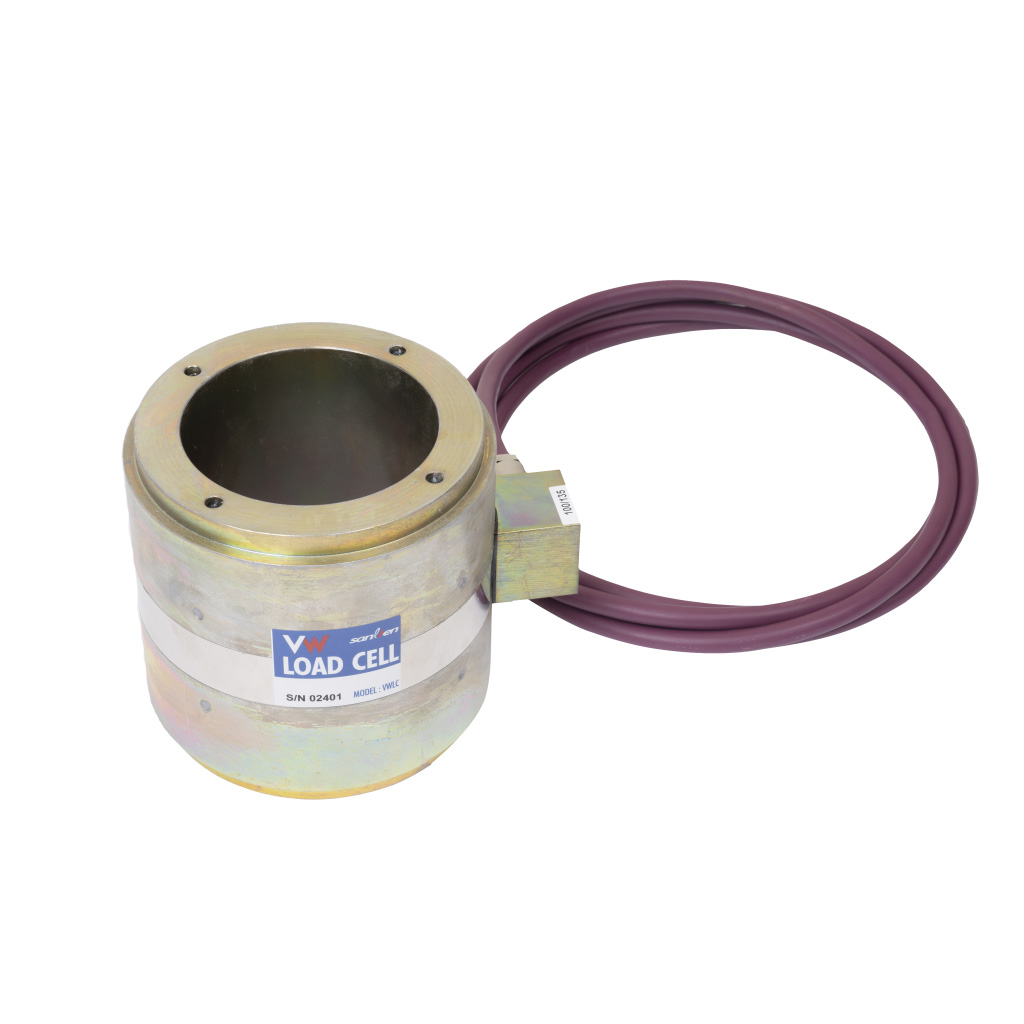

VW Load Cell
The Sanlien VW Load Cell delivers high-precision direct load measurement for piles, rock bolts, and cable anchors.
It features a series of up to 6 vibrating wire gauges, arranged parallel to the cell axis and evenly spaced radially within a cylindrical housing.
The VW Load Cell can be integrated into monitoring systems by directly wiring it to a data logger or connecting it via a sheathed cable to a readout unit through a switched terminal unit.
Download Materials
Product information:
Applications
- Monitoring loads in tie-backs and rock bolts within excavation walls
- Tracking tensions in cable anchors and tendons
- Measuring loads in piles and tunnel supports
- Assessing loads in arch tunnel supports
- Monitoring loads in concrete dam tie-downs
- Best suited for excavation walls, concrete piles, diaphragm wall and tunnel linings
Key Features
- High accuracy and long-term stability
- Reliable performance in demanding environments
- Waterproof and durable design
- Designed with a hole in the center to accommodate rockbolts, tendons, or anchor cables
- Optional top and bottom load plates allow use as a solid load cell
- Compatible with manual or remote reading
- Integral thermistor for temperature monitoring
Technical Specifications
- Range: 500、1000、2000、3000、4000、5000 kN
- Accuracy: ±0.25% F.S.
- Over Range: 125% F.S.
- Temperature Range: -20 °C to 80 °C
- Resolution: 0.025% F.S.
Related products
VW Earth Pressure Cell
The Sanlien VW Earth Pressure Cell is designed for the precise measurement of total pressure…

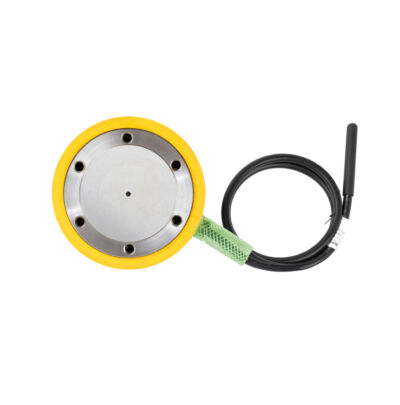

Annular/Solid Load Cell
