VW Earth Pressure Cell

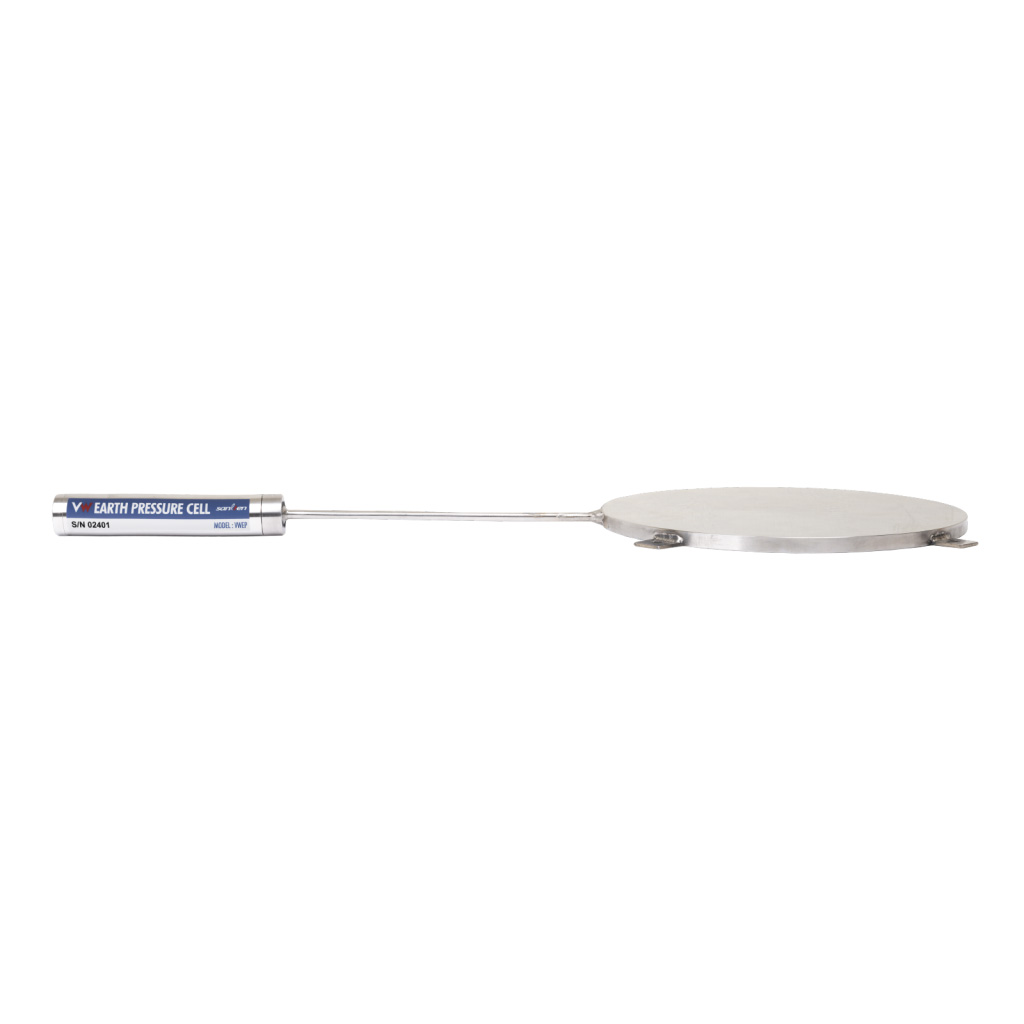

The Sanlien VW Earth Pressure Cell is designed for the precise measurement of total pressure within earth fills and embankments. Constructed with two circular stainless steel plates welded around their edges, the cell houses a narrow chamber filled with de-aired oil.

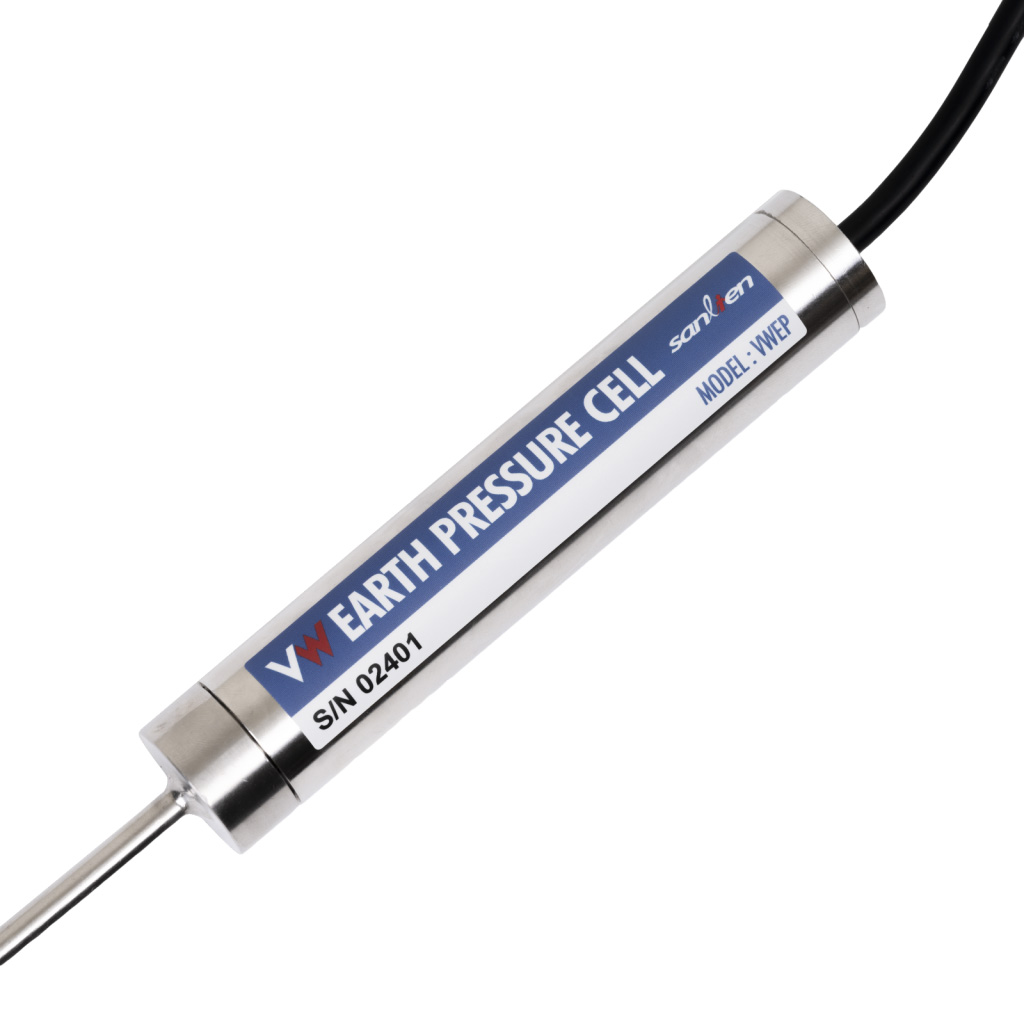

Variations in earth pressure compress the plates, increasing oil pressure accordingly. This pressure change is detected by a vibrating wire pressure transducer, connected to the plates through a short length of steel tubing, ensuring precise and stable readings over time.
Download Materials
Product information:
Applications
- Measuring total pressure in earth fills and embankments
- Provides direct total pressure measurement, combining soil effective pressure and pore water pressure
- Monitoring excavation walls, fills & embankment and diaphragm wall tunnels linings
Key Features
- High accuracy and long-term stability
- Robust design for demanding environments
- Accommodates manual or remote reading
- Integral thermistor for temperature monitoring
- Built-in over-voltage surge arrester for protection against electrical damage
Technical Specifications
- Range (MPa): 0.35/0.5/0.7/1.0/2.0/3.0/5.0
- Temperature Range: -20°C to 80°C
- Resolution: 0.025% F.S.
- Over-range Capacity: 50% F.S.
- Accuracy: ±0.1% F.S.
- Dimensions: Dia. 230 mm
