Tiltmeter

The Worldsensing Tiltmeter is a 3-axis wireless sensor engineered to measure relative inclination changes, either on the ground or in structures. It provides a cost-effective and reliable solution for monitoring track geometry in railway projects in combination with other geospatial monitoring techniques.
With battery life of up to 25 years and a communication range reaching 15 km, the Tiltmeter ensures long-term, maintenance-free performance in remote or hard-to-access sites. Its robust design and high precision make it ideal for continuous monitoring of structural deformation, ground movement, and differential settlement across slopes and infrastructure.

Download Materials

Datasheet

Product information:

Applications

Monitor cant, twist and height variation in rail tracks
Monitor settlement, heave and building response to tunneling
Monitor static deflections of piles, piers, and decks
Early warning for surface movements

Key Features

External antenna for full range capabilities or internal antenna for applications such as railway tracks Measures 3-axis inclination relative to gravity, with a full range of ± 90⁰
Standard deviation transmitted with each tilt measurement to enable noisy data filtering
High precision due to individual device calibration
Calibration parameters are accessible through the app

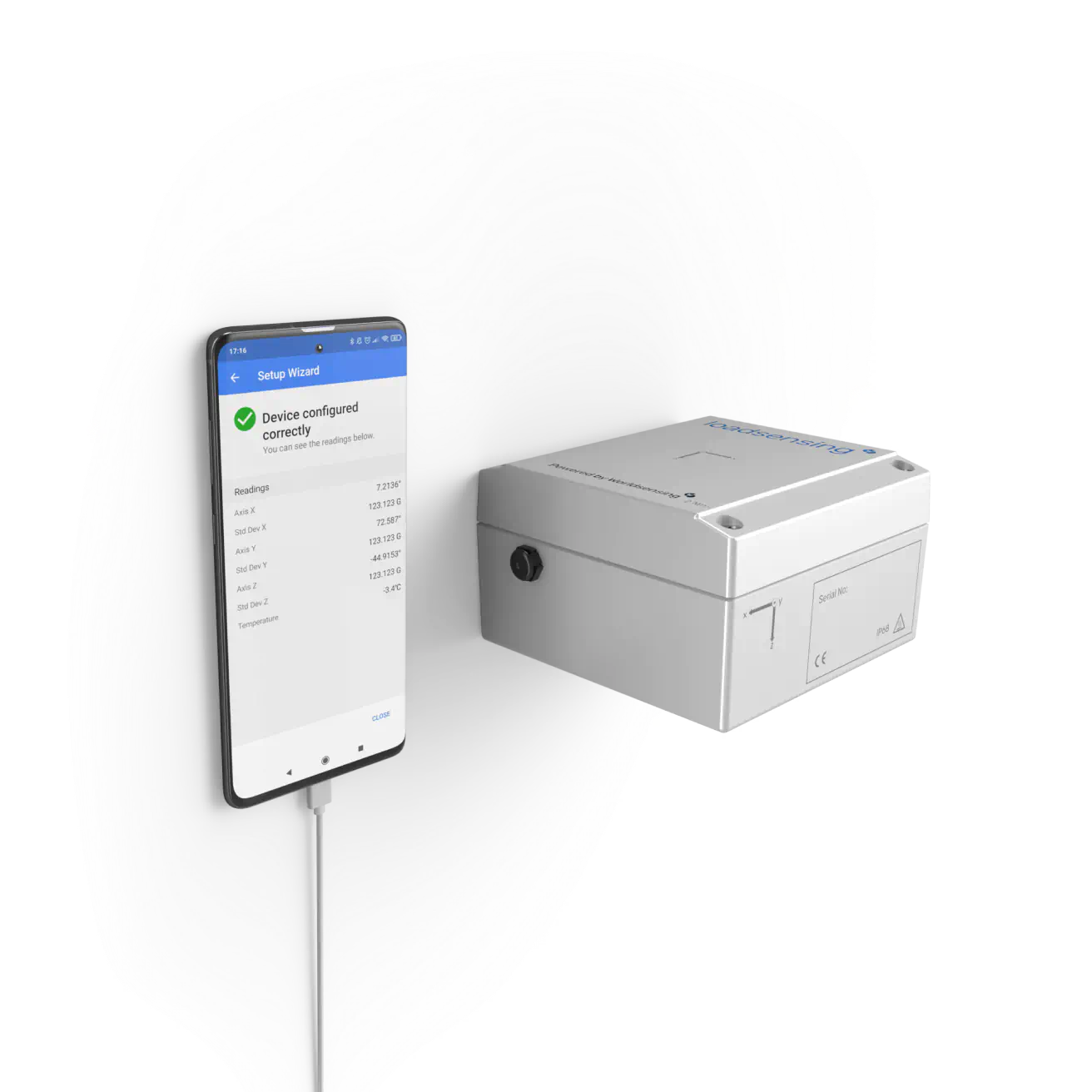

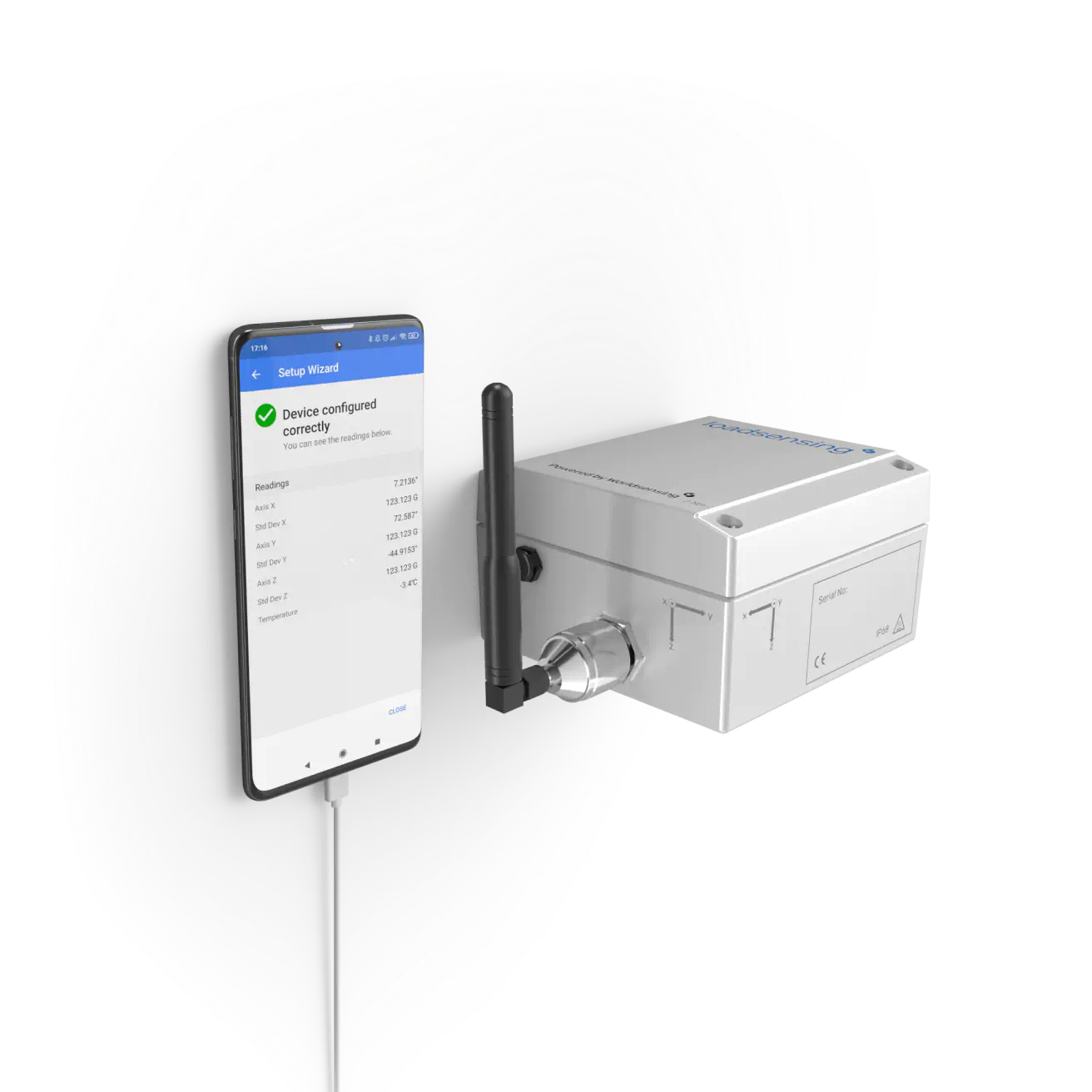

Setup wizard enables quick configuration of multiple tiltmeters within the same project using saved settings.

Variants

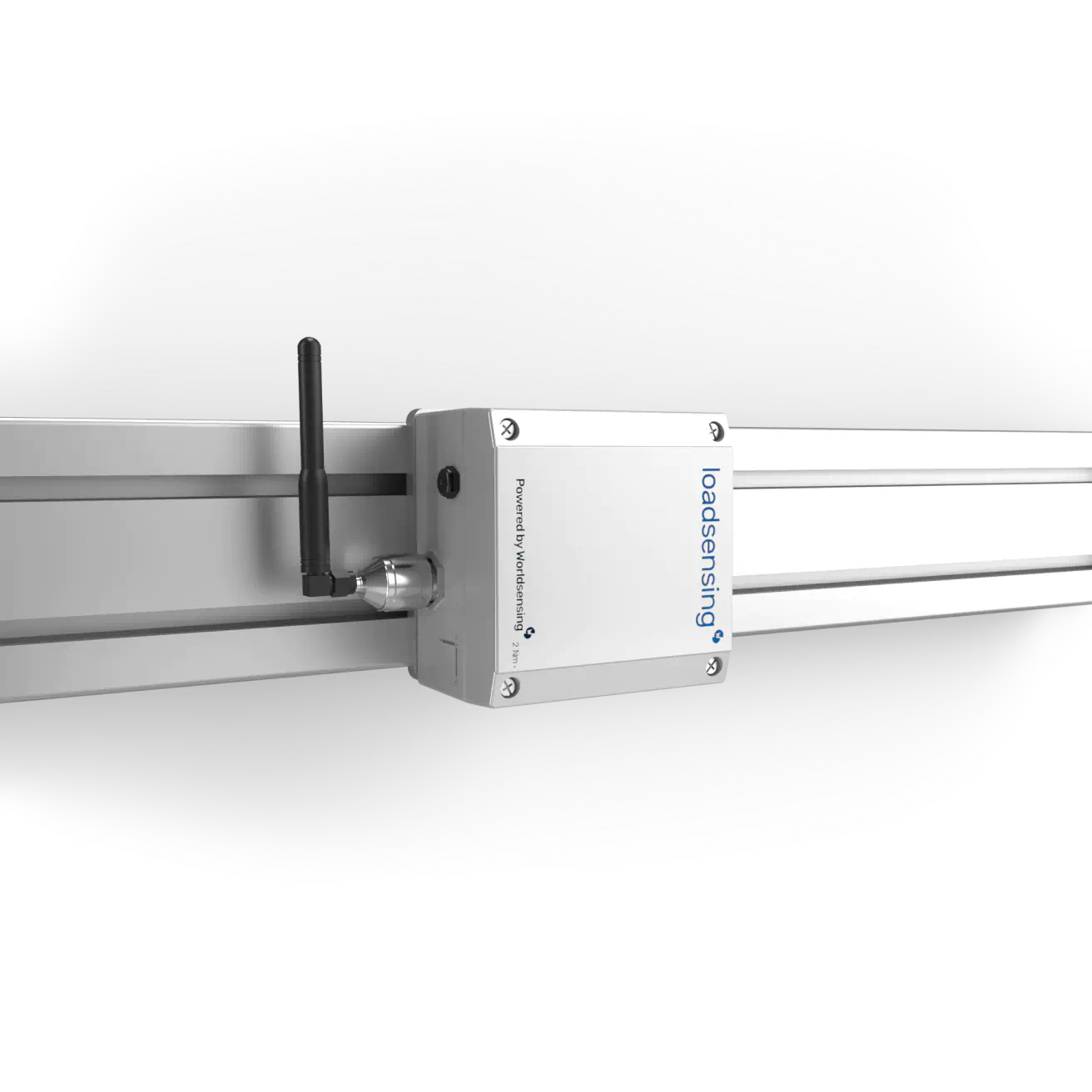

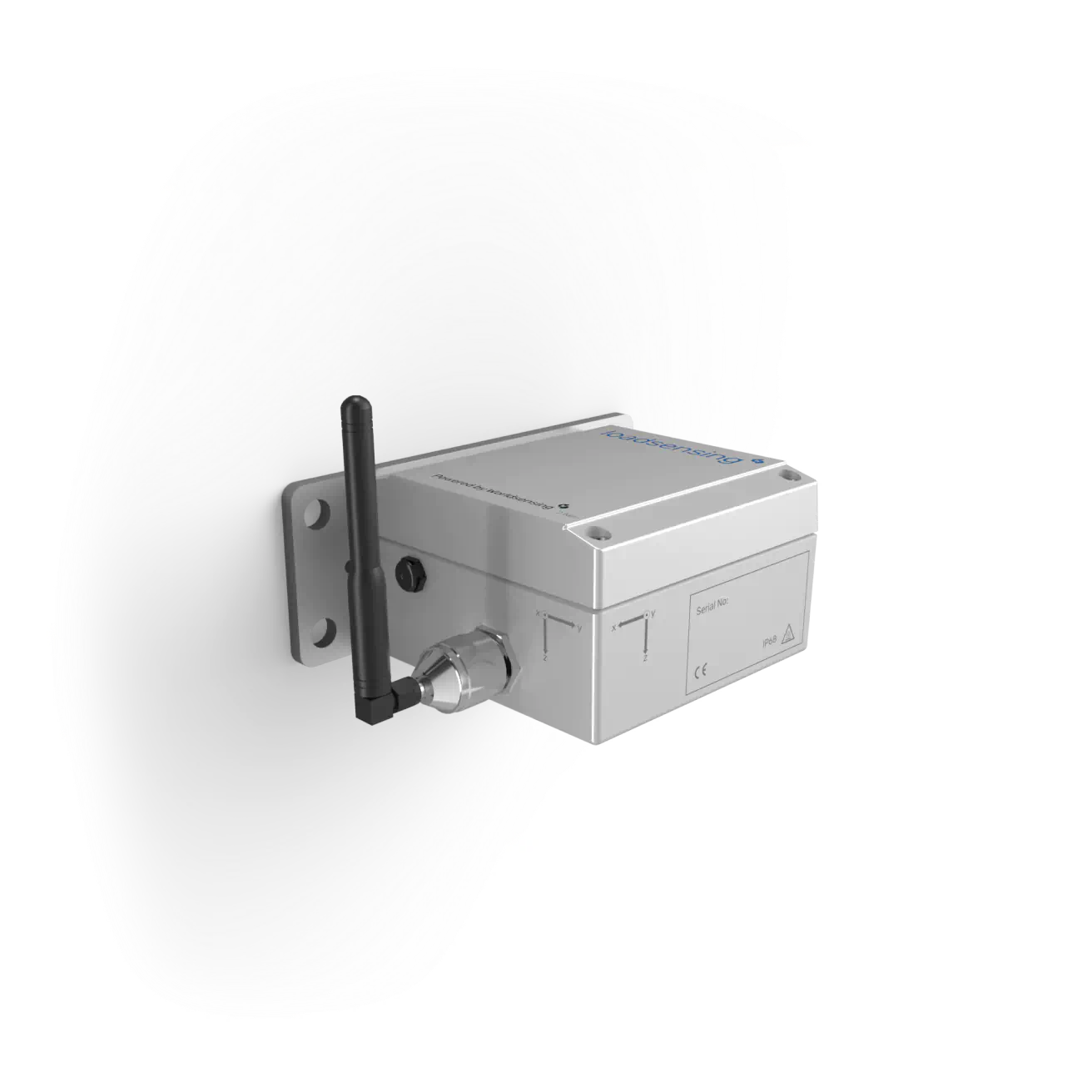

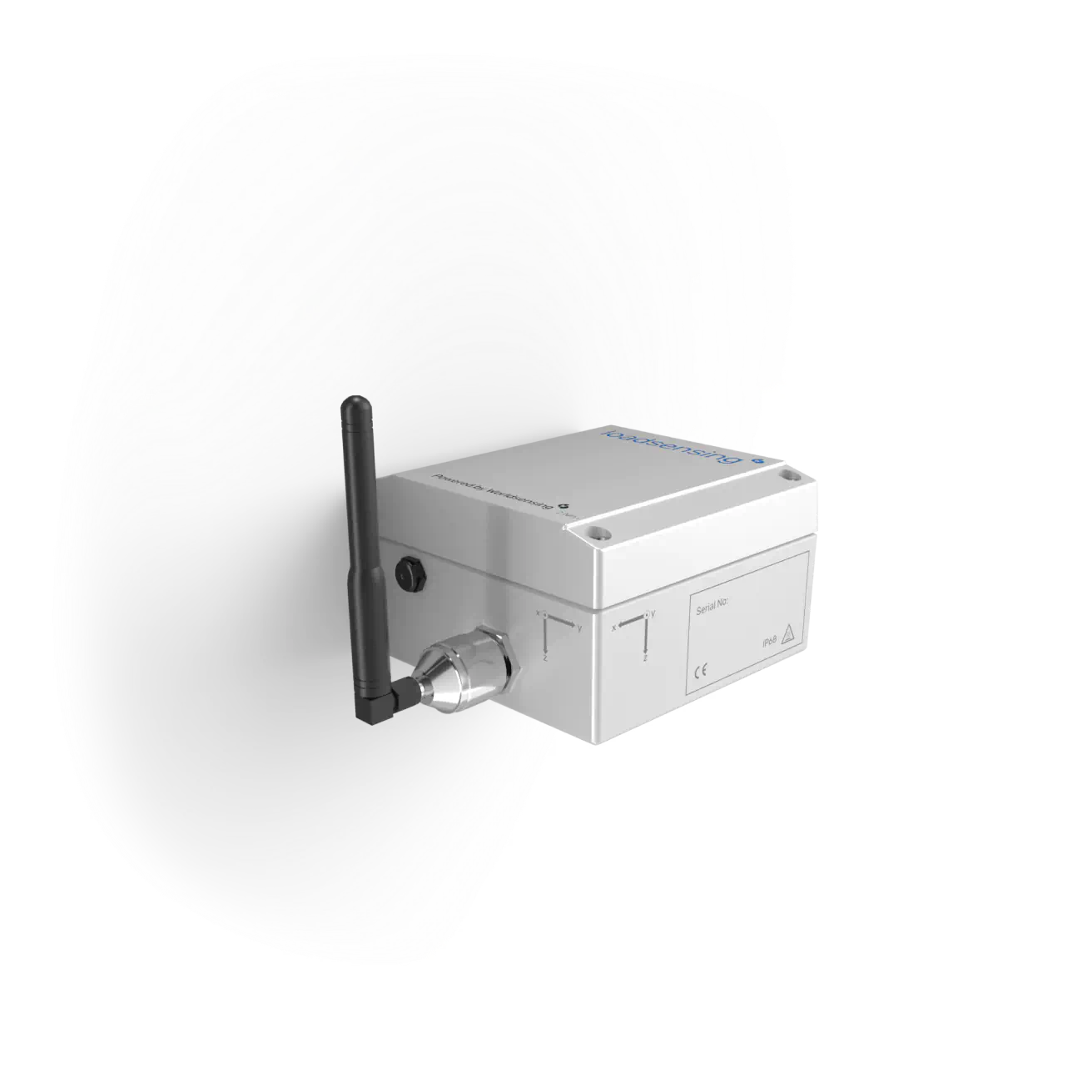

LS-G6-TIL90-X with external antenna for high precision applications

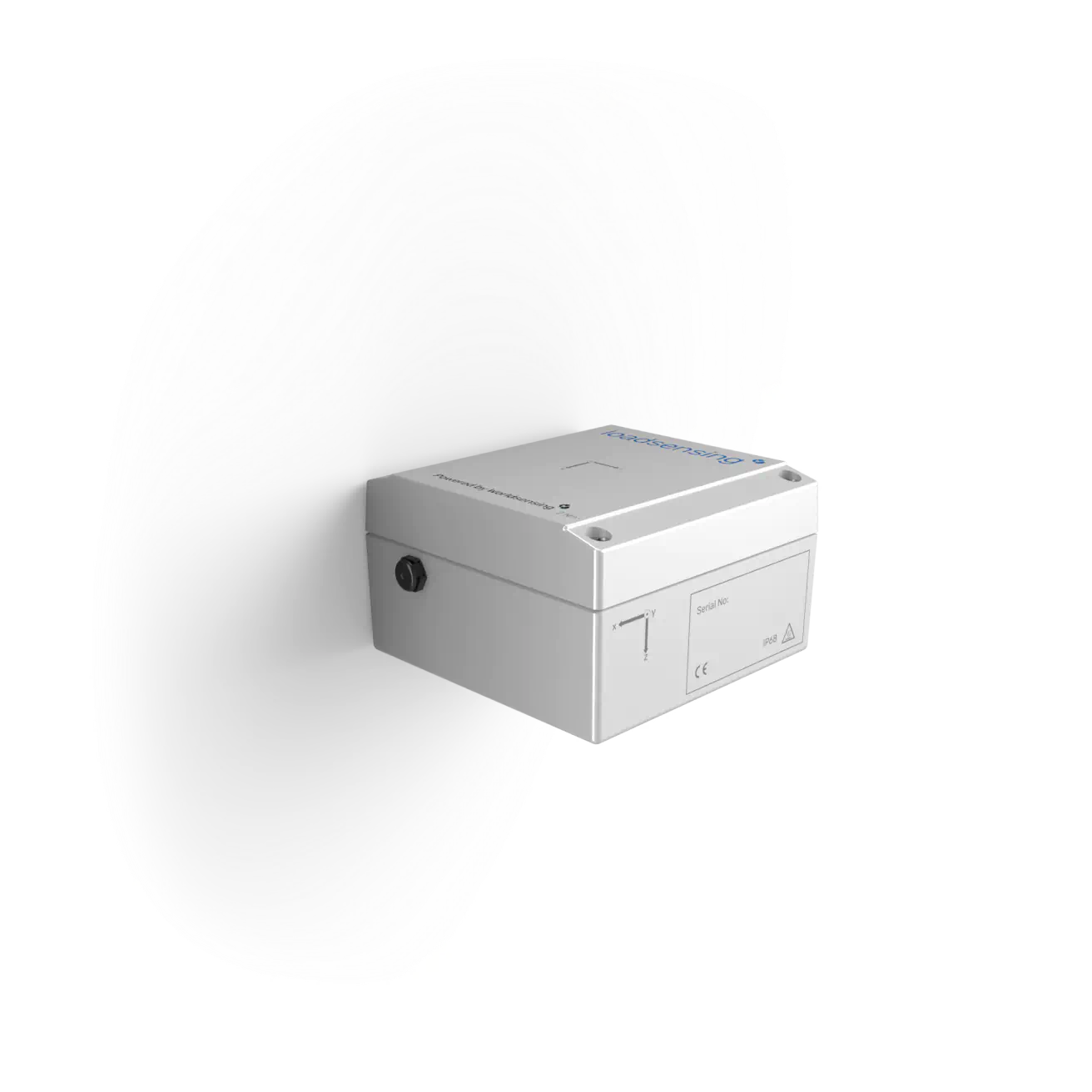

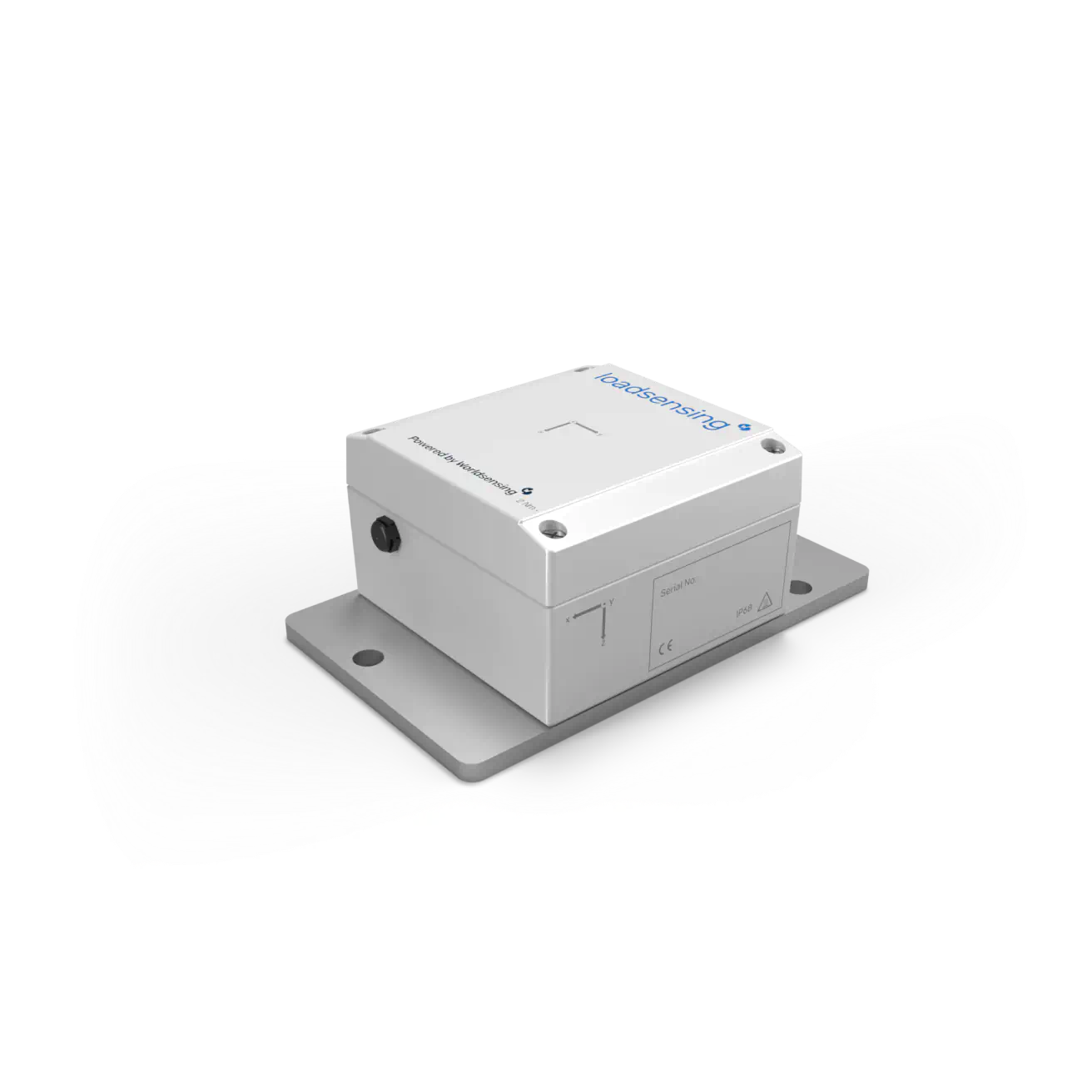

LS-G6-TIL90-I with internal antenna for rail track monitoring

Technical Specifications

Sensor type: 3-axis MEMS accelerometer and integrated thermometer
Range: ±90º
Secondary sensor: Integrated temperature sensor
Power source: 2 x 3.6 V C-size replaceable batteries
Data transmission: LoRa radio communications (ISM sub GHz)
Operating temperature: -40º C to 80º C
Weather protection: IP68
System configuration: Device setup and configuration via Worldsensing App. Remote configuration using CMT Edge on sigle-net deployments and CMT Cloud on multi-net deployments
