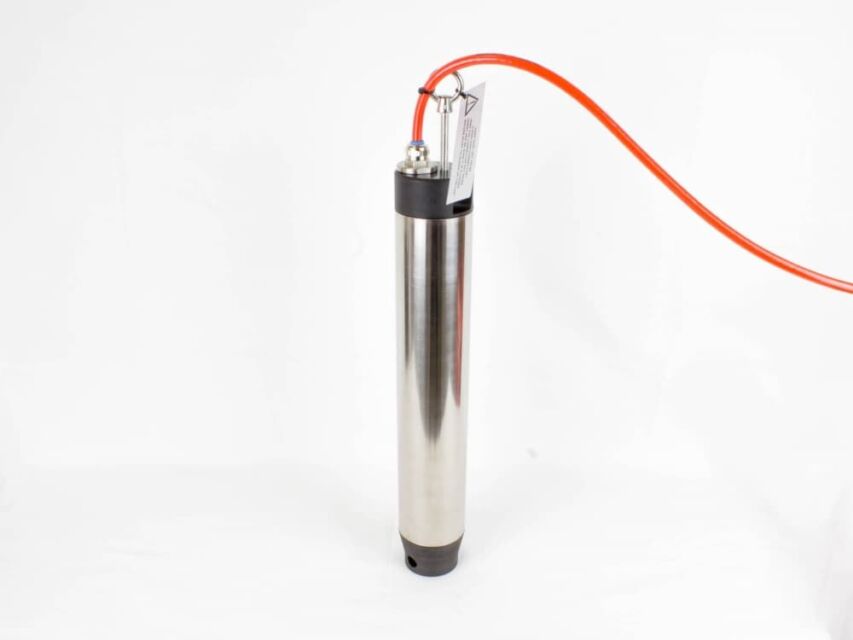

SS-BHV

The SS-BHV is a carrier designed to embeds different kinds of sensor like velocimeters (SS-45/20 or SS-10/08/02) and accelerometers (SA-10 or MEMS). The mechanical (passive spring) blocking system allows control of the sensor orientation up to 10-15 m from the surface. Other motorised lock systems allow deployment at high depth.

Download Materials

Datasheet

Product information:

Key Features

Mono or Triaxial version available
Dynamic range up to 160dB
Extended bandwidth
Robust suspension system
Slot at bottom for single bolt mounting
Wall, floor, ceiling mount available upon request
Low power consumption
Response files are available through IRIS NRL librar

Applications

Observatory grade earthquake seismology
Structure health monitoring
Operational Modal Analisys
Microseismic network
Dams monitoring
Soil exploration

Technical specifications

Number of axes: 1, 2 or 3 in X, Y, Z or any combinations of the three
Orientation: horizontal or vertical (wall mount) to be specified at order
Levelling: manual, with adjusting knobs
Casing: solid block of aluminum CNC milled and treated against corrosion
Dimensions: 70mm
Highness: from 700 to 1500mm
Weight: 8kg (borehole hole lock version + cable weight, ask for details)
Protection grade: IP68
Tolerated humidity: 0-100%
Temp. operative range: -20 to +70°C
Bandwidth/sensitivity:
- SS45 typical 4.5Hz (with digitizer useable band 0.2-100Hz)→
- SS20 typical 2.0Hz (with digitizer useable band 0.1-100Hz)→
- SS10 typical 1.0-50Hz (1.0-100Hz optional) 400 or 800 V/m/s
- SS05 typical 0.5-50Hz (0.5-100Hz optional) 400 or 800 V/m/s
- SS02 typical 0.2-50Hz (0.2-100Hz optional) 400 or 800 V/m/s
