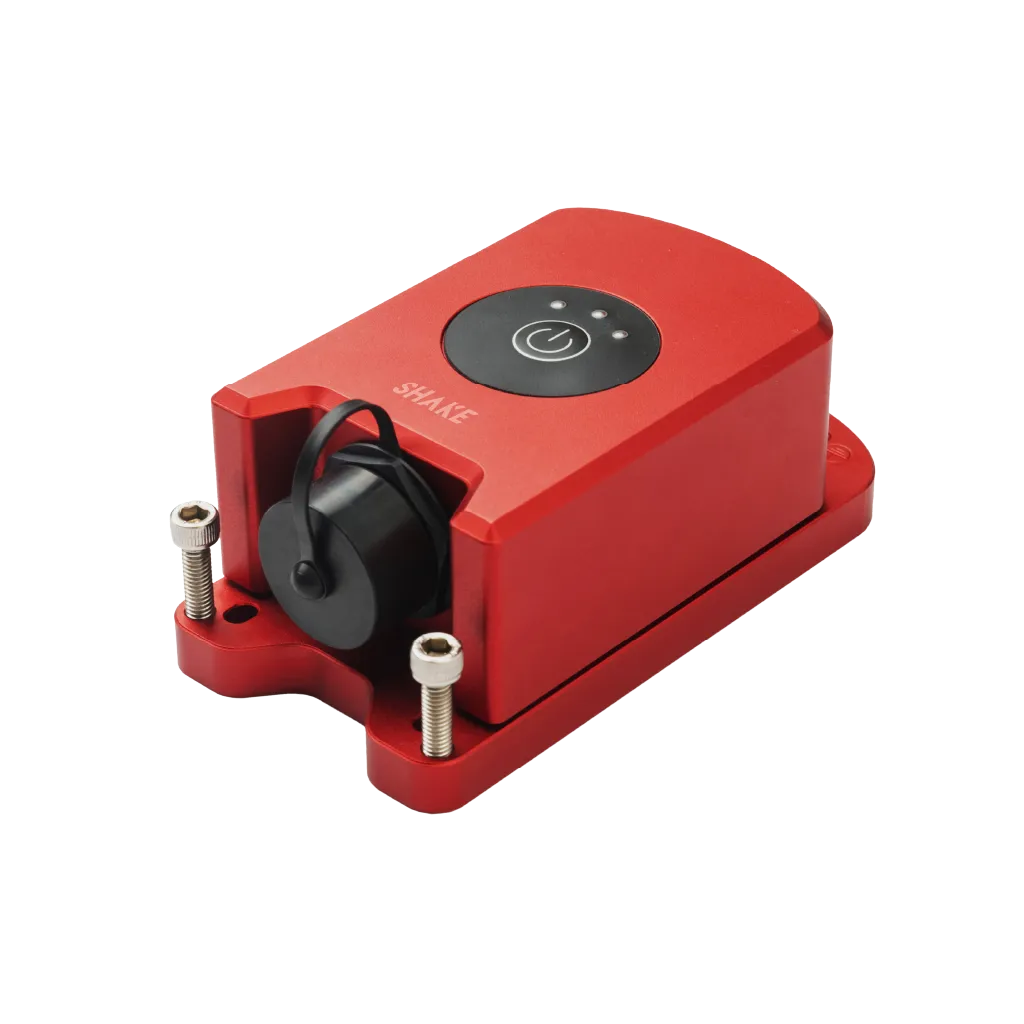

SHAKE QD332
Tri-axial Digital QUARTZ Accelerometer
SHAKE QD332 is a tri-axial digital QUARTZ MEMS accelerometer designed for structural health diagnostics (SHD) and vibration monitoring. Embedded with a quartz MEMS sensor, the IP67 waterproof enclosure allows it to be deployed in challenging outdoors.
Multiple SHAKE QD332 can be connected to a PX01/CUBE, a data logger for real-time data recording and event forwarding, or by SanDAS software on a PC/laptop for waveform viewing and data recording.
Download Materials
Product information:
Applications
- Structural Health Monitoring (SHM)
- Cable-stayed bridge monitoring
- Vibration monitoring
- Infrastructure life-cycle assessment
- Monitoring early-stage fatigues
Key Features
- Built-in Web GUI for easy configuration
- Ideal for Building or Bridge Monitoring
- Advanced CPU capability
- SanDAS Software for Data Analysis
- Support Ethernet PoE for Plug-n-play
- Time Synchronization via NTP
- Waterproof IP67
Technical Specifications
- Sensor Type: Tri-axial digital Quartz MEMS accelerometer
- Measuring Range: ±2 g, ±4 g (factory configured)
- Dynamic Range: 132 dB
- Sample Rate: 100 SPS, 200 SPS, 500 SPS, 1000 SPS
- Self-Noise: 0.5 μg / √Hz
- Shock Resistance: 1000 g (0.2 ms)
- Digital Resolution: 24 bit
- Communication: RJ-45 PoE
- LED Display: Power, status, link
- Mount Mode: Horizontal / vertical (adjustable with PX01)
- System Configuration: Via web interface
- Time Synchronization: NTP (Network Time Protocol)
- Power Supply: PoE (Power over Ethernet, 12VDC)
- Power Consumption: ≦1 Watt
- Operating Temperature: -20°C to 70°C
- Relative Humidity: 5% – 90% RH (Non-condensed)
- Waterproof: IP67
- Weight: 660 g
- Dimension (L x W x H): 137 x 75 x 55 mm
