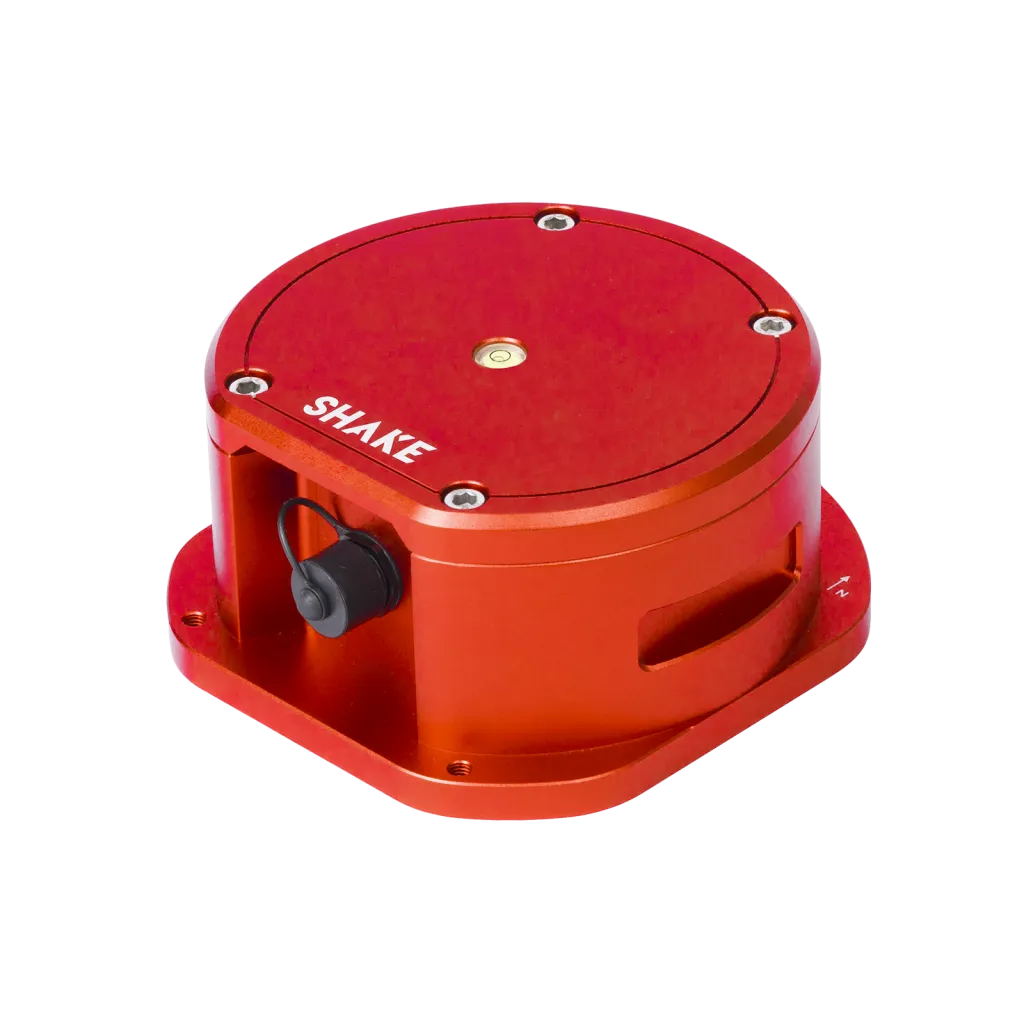

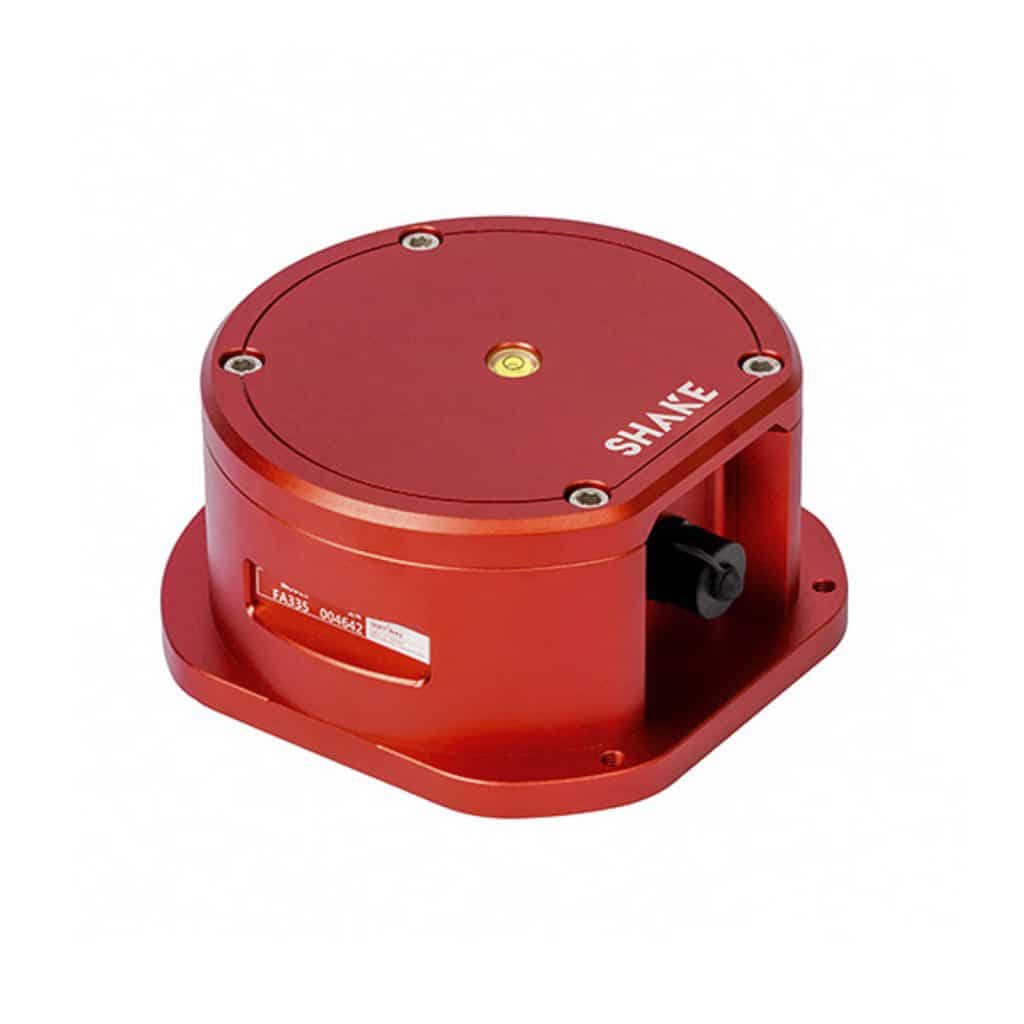

SHAKE FA335
Analog Accelerometer
SHAKE FA335 is a tri-axial force balance accelerometer suitable for bridge deck vibration monitoring. The high-dynamic resolution provides accurate data generated by micro-tremors, loading of heavy traffic, structural vibration as well as earthquakes. SHAKE FA335 can be also applied into high-rise building health and strong-motion monitoring.
Download Materials
Product information:
Applications
- Bridge Safety & Cord Health
- Short/Long-term Building Health
- Earthquake Regional Array & Local Standalone Station
- Steel Cord Vibration Monitoring
- Structural Vibration Monitoring
- Strong-motion Monitoring
Key Features
- Applicable to Various Recorders
- Voltage Output
- Waterproof IP67
Technical Specifications
- Sensor Type: Tri-axial FBA
- Measuring Range: ±2 g
- Dynamic Range: >150 dB (from 0.1Hz to 20Hz with 2g full scale)
- Bandwidth: DC – 100 Hz
- Output: ±10 V fully differential (50ohm)
- Sensitivity: 5 V/g
- Nonlinearity: <0.1%
- Cross Axis Sensitivity: <0.5%
- Power Supply: 10 – 30 VDC
- Power Consumption: 80mA@12VDC
- Waterproof: IP67
- Operating Temperature: -20 °C to 70 °C
- Weight: 2.6 kg
- Dimension (L x W x H): 158 x 145 x 74 mm
