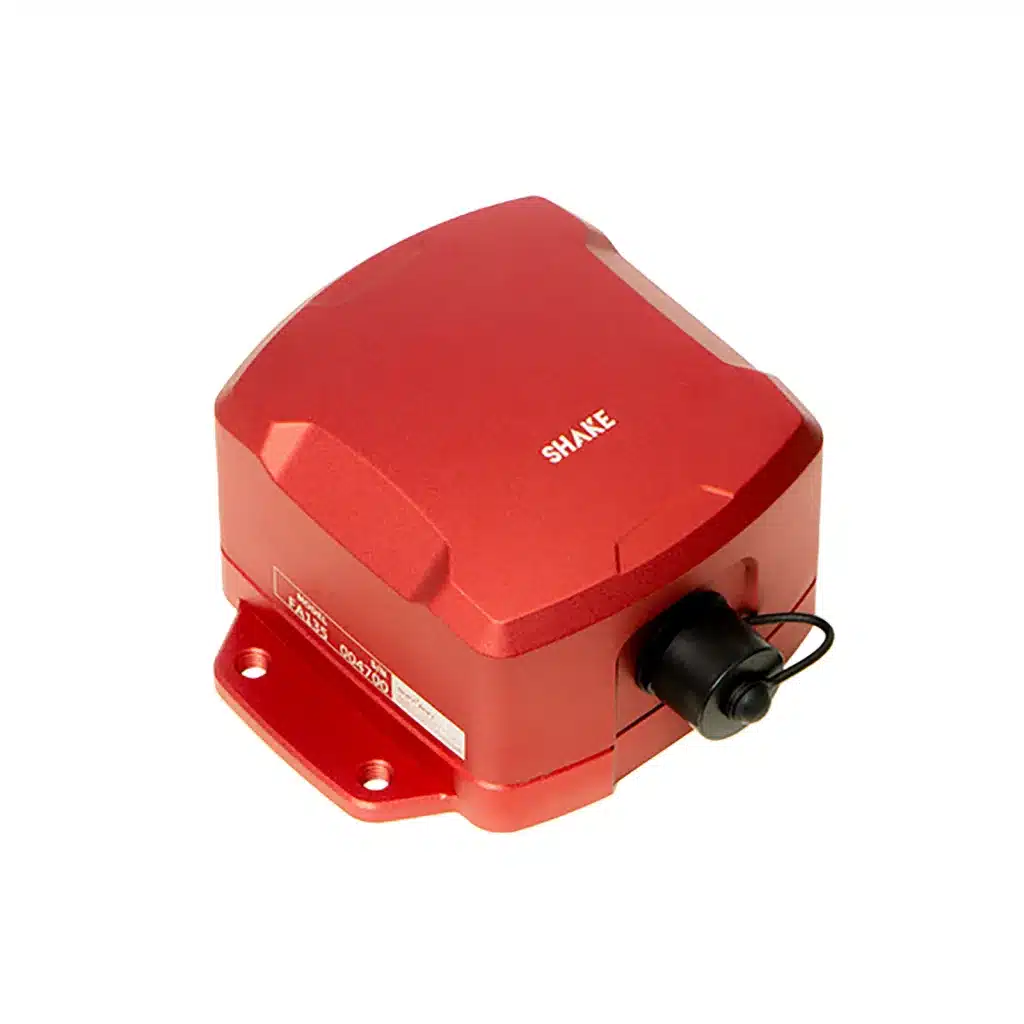

SHAKE FA135
Analog Accelerometer
SHAKE FA135 is a uni-axial force balance accelerometer designed for structural health on buildings or cable force measurement on steel-cord bridges. The lightweight and IP67 waterproof housing brings quick development on the surface of objects.
Download Materials
Product information:
Applications
- Bridge Safety & Cord Health
- Short/Long-term Building Health
- Earthquake Regional Array & Local Standalone Station
- Steel Cord Vibration Monitoring
- Structural Vibration Monitoring
- Strong-motion Monitoring
Key Features
- Applicable to Various Recorders
- Voltage Output
- Waterproof IP67
Technical Specifications
- Sensor Type: Uni-axial FBA
- Measuring Range: ±2 g
- Dynamic Range: >150 dB (from 0.1Hz to 20Hz with 2g full scale)
- Bandwidth: DC – 100 Hz
- Output: ±10 V fully differential (50ohm)
- Sensitivity: 5 V/g
- Nonlinearity: <0.1%
- Cross Axis Sensitivity: <0.5%
- Power Suppy: 10 – 30 VDC
- Power Consumption: 50mA@12VDC
- Waterproof: IP67
- Operating Temperature: -20 °C to 70 °C
- Weight: 611 g
- Dimension (L x W x H): 109 x 88 x 54 mm
