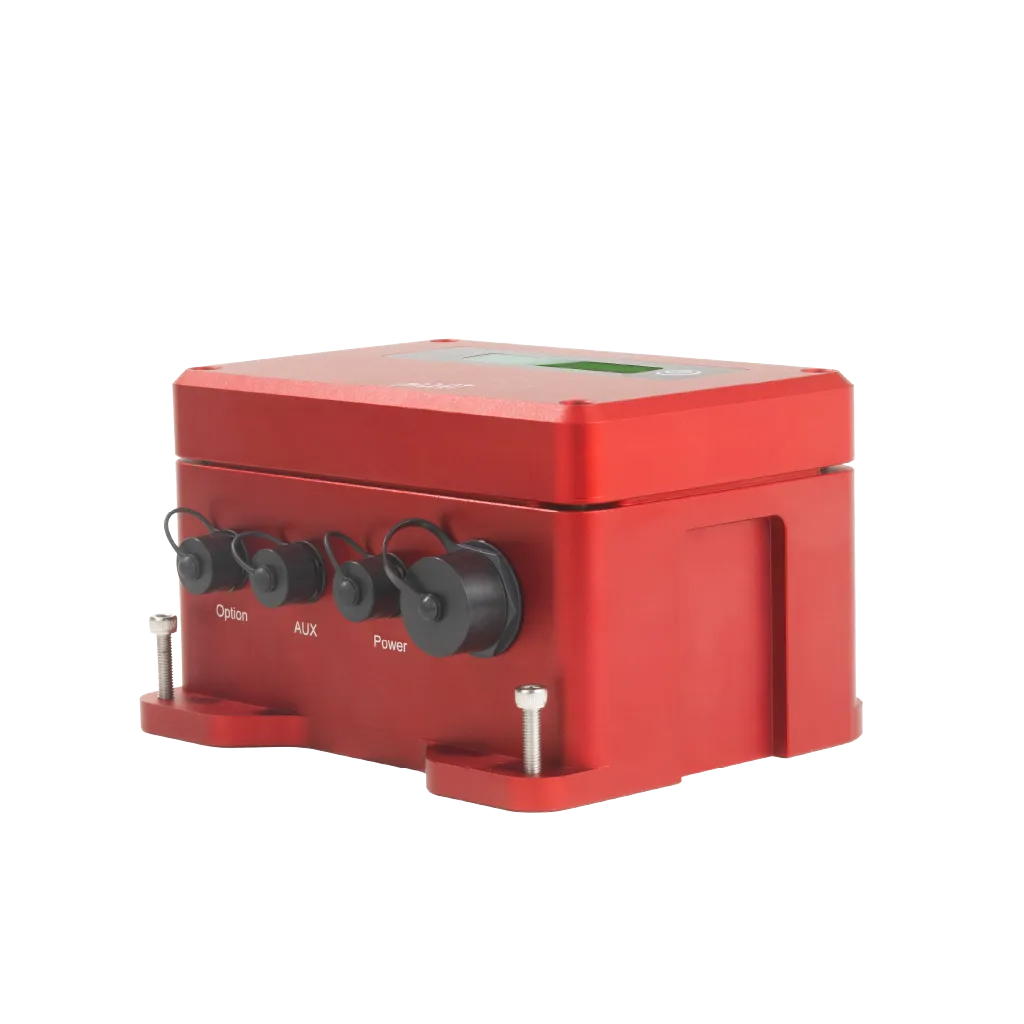

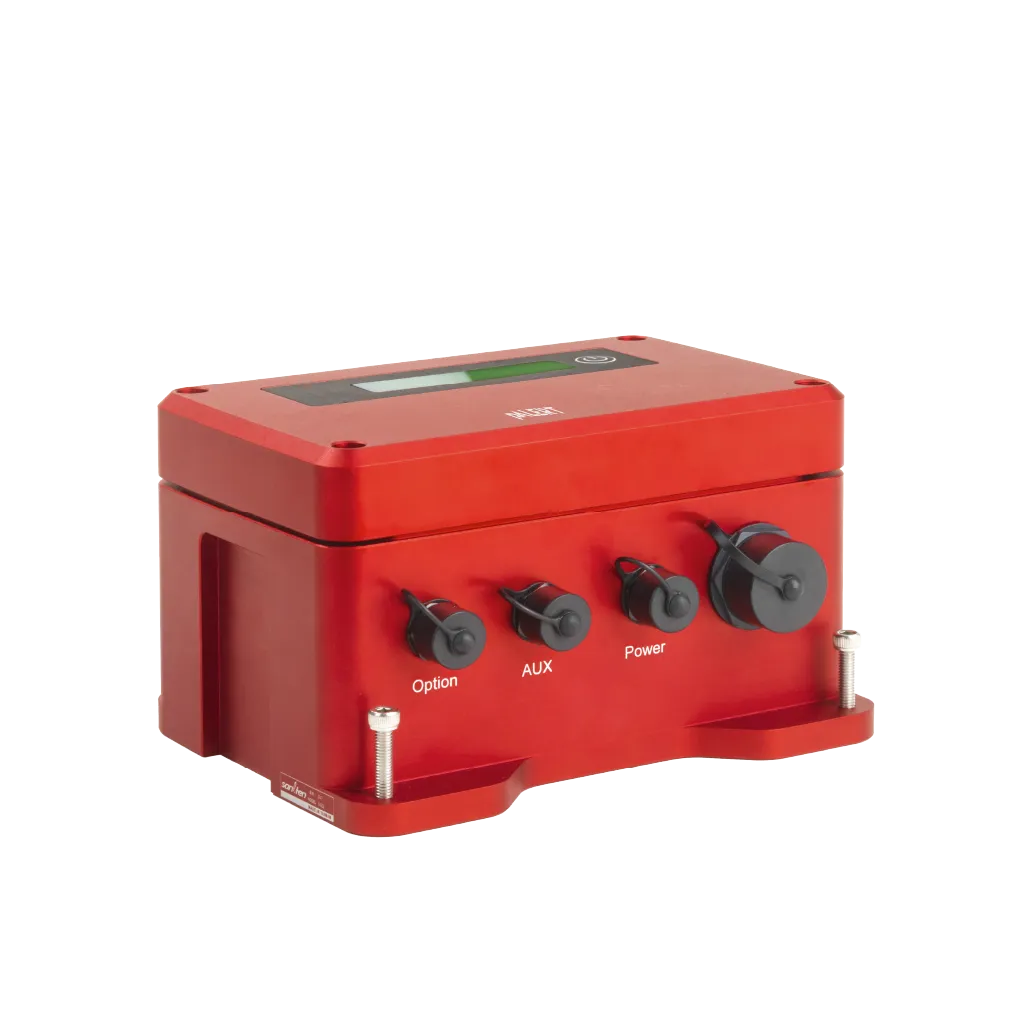

pALERT F330

Force Balance Accelerometer

pALERT F330 features a high-precision triaxial force-balanced accelerometer to enhance its performance which offers three trigger logics (Pd, PGA, STA/LTA) and filtering options, including high-pass and low-pass filters to reduce non-natural seismic noise.

It incorporates Pd seismic early warning technology, which issues alerts before the arrival of shear waves, reducing earthquake-related disasters. It can estimate S-wave destructiveness when the P-wave displacement exceeds a threshold within 3 seconds.

Download Materials

Datasheet

Product information:

Applications

Earthquake Early Warning System (EEWS)
Structural Health Monitoring (SHM)
Industrial risk management enhancement
Automatic shutdown for disaster reduction
Protection of personnel on production lines
Industrial infrastructure monitoring
Manufacturing plants monitoring
Residential buildings and public facilities monitoring

Key Features

On-site Early Warning
Regional Early Warning
Modbus Protocol
NTP Server or Client
LTE-M
Web GUI
Instantly upload earthquake warning information to three servers
Waveform records can be accessed via a browser for analysis
Synchronize with GPS or NTP network time for precise timekeeping
Supports various seismic intensity scales

Technical Specifications

Sensor Type: Tri-axial force-balance accelerometer
Output Sampling Rate: 50 sps, 100 sps, 200 sps, 500 sps, 1000 sps
Measuring Range: ±0.5 G, ±1G, ±2 G, ±4 G (selectable)
Weight: 4.37 kg
Dynamic Range: >130 dB
Display: LCD screen with 2 x 20 characters
Frequency Range: DC – 200 Hz
Storage Capacity: 32 GB (expandable to 64 GB)
Nonlinearity: 0.03%
Dimension (W x L x H): 206 x 179 x 120 mm
Resolution: 4 channels with 24-bit resolution
Seismic Event Record Time: Configurable up to 200 s
Cross-Axis Interference: ≦±0.1%
Communication: RJ-45 network connection with compatibility for Modbus communication protocol
