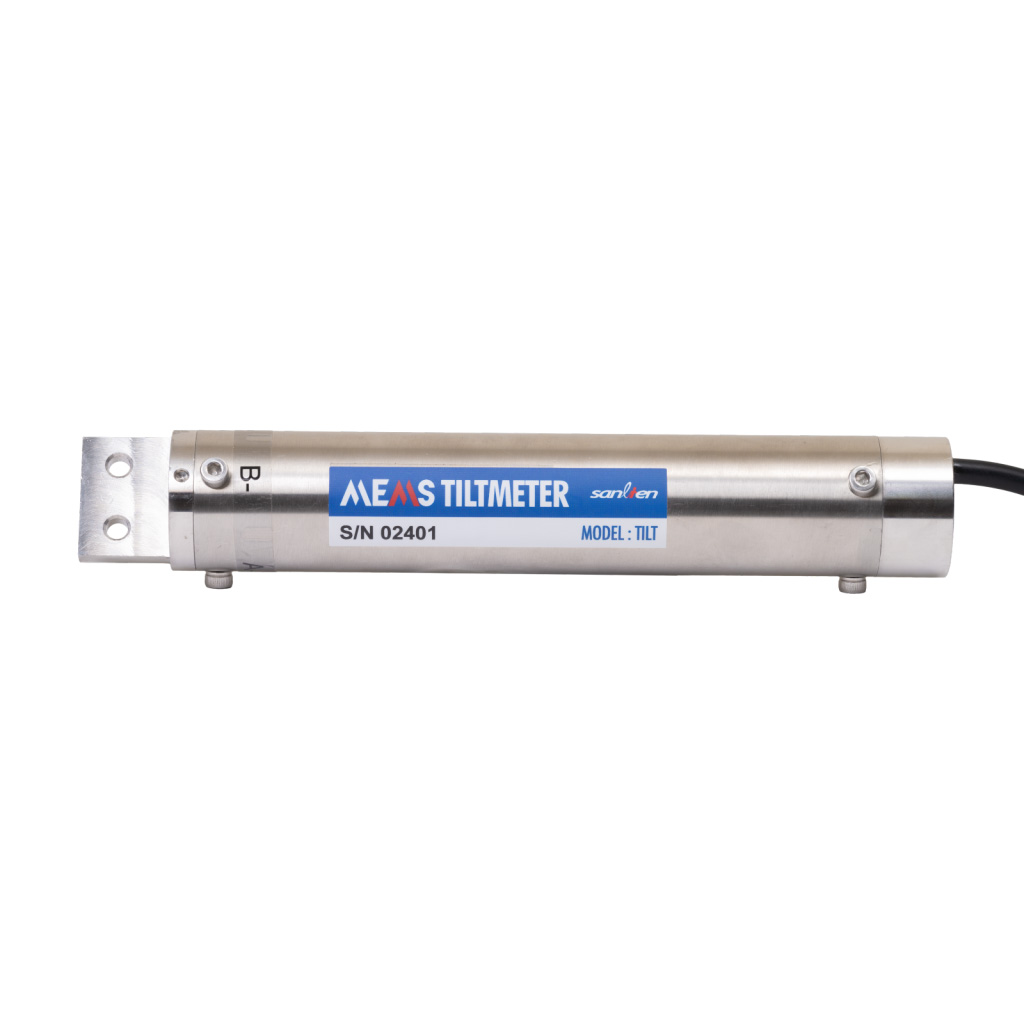

MEMS Tiltmeter
The Sanlien MEMS Tiltmeter is designed for precise tilt measurement on vertical or horizontal surfaces, enhancing structural monitoring.
Featuring a high-range MEMS sensor for accuracy and sensitivity, it delivers an output of ±4 V at ±15° through advanced signal conditioning.
Compact, robust, and highly versatile, the MEMS Tiltmeter can be securely attached to structures and is capable of driving long cables without degradation, ensuring reliable performance in long-term monitoring applications.
Download Materials
Product information:
Applications
- Measuring tilt in various structures, including buildings, dams, embankments, slopes, retaining walls and open pits
Key Features
- Accurate and precise measurement
- Available in uniaxial and biaxial versions
- In-built temperature compensation
- Supports manual or remote data acquisition
- Robust design for harsh environments
Technical Specifications
- Range: ±15° (Vertical) / ±15° (Horizontal)
- Input Voltage: 12 VDC
- Resolution: <10 arc seconds
- Operating Temperature: -20 °C to 80 °C
- Accuracy: ±0.1% F.S.
- Dimensions: Φ34 mm x 215 mm
- Sensor Output: ±4V@±15°
