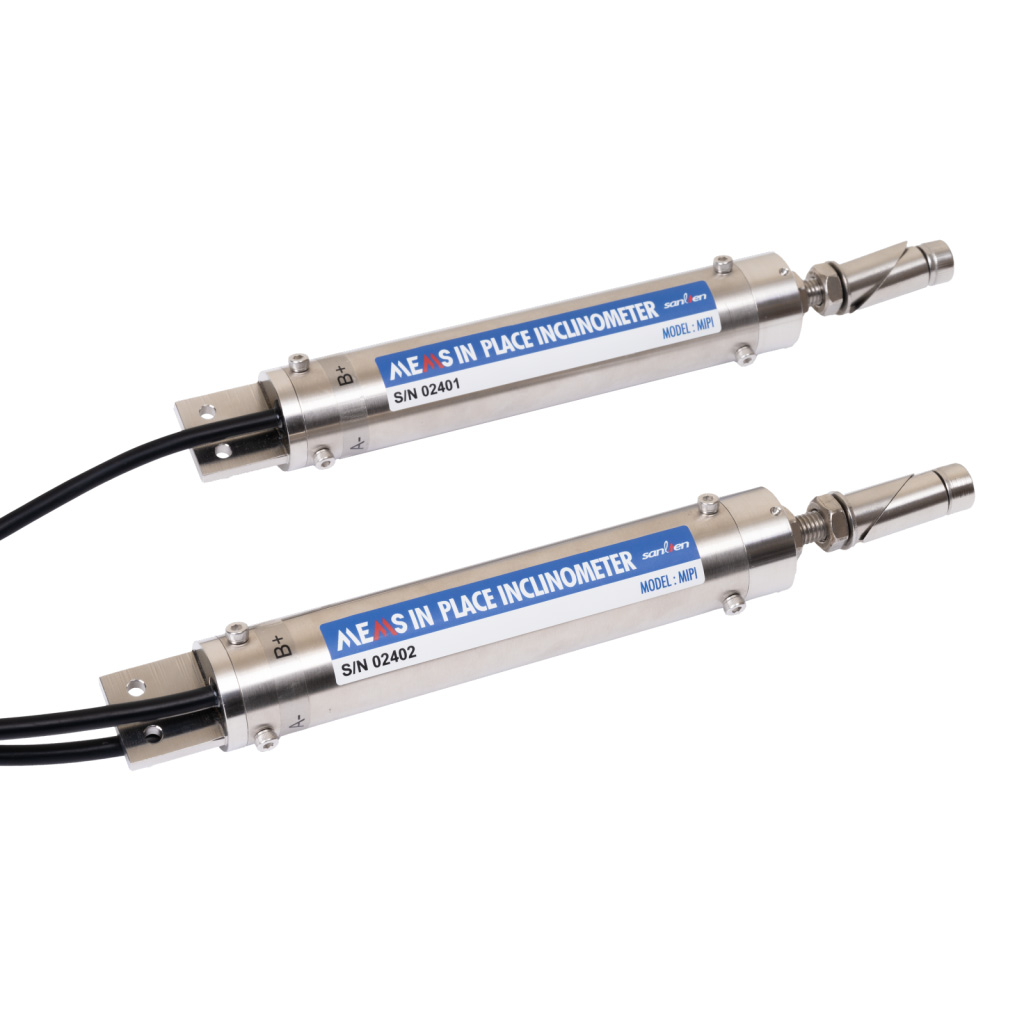

MEMS In-Place Inclinometer
The Sanlien MEMS In-Place Inclinometer (IPI) is designed to measure lateral shifts in the ground or within structures.
It comprises a sequence of MEMS tilt sensors (uni or biaxial) mounted onto stainless steel tubing sections joined by universal joints.
MEMS IPI system includes the Smart Model, equipped with a data acquisition system for enhanced monitoring capabilities and streamlined data collection.
Download Materials
Product information:
Applications
- Detecting slope movement and landslides
- Identifying shear and slip zones
- Monitoring diaphragm or sheet pile walls
- Measuring bending in piles
- Monitoring settlement and deformation in concrete slabs and tank bases
Key Features
- Accurate and precise measurements using MEMS sensors
- Available in uniaxial and biaxial versions
- In-built temperature compensation
- Enables remote monitoring of horizontal movement within a vertical borehole
- Supports manual or remote data acquisition
- Robust design for long-term durability
Technical Specifications
- Range: ±15° (Vertical) / ±15° (Horizontal)
- Sensor Output: ±4V@±15°
- Resolution: <10 arc seconds
- Input Voltage: 12 VDC
- Accuracy: ±0.1% F.S.
- Minimum Casing: Internal diameter : 56 mm
- Operating Temperature: -20 °C to 80 °C
- Dimensions: Φ32 mm x 215 mm
