K20 Edge Repeater

Worldsensing K20 Edge Repeater extends the network range of single-net deployments by retransmitting data from connected nodes to the main gateway. Data can travel across multiple repeaters in hops before reaching the gateway, significantly increasing communication range. The field-proven tree network technology has been tested for both straight and curved tunnels in underground mines.

Download Materials

Datasheet

Product information:

Key Features

Up to 10 km of radio coverage for underground monitoring systems depending on site conditions
Highly scalable network allowing for a single gateway to manage hundreds of devices under single-net deployments
Seamless communication between Edge devices and Edge gateway through the repeater
Compatible with CMT Edge for full network, device and data management
Carrier class design featuring wireless radio performance, purpose-built IP67 rugged enclosure and flexible modularity

Applications

Idea for complex geographical topologies, such as underground environments, tunnels or inside dam galleries

Variants

K20 Edge Repeater

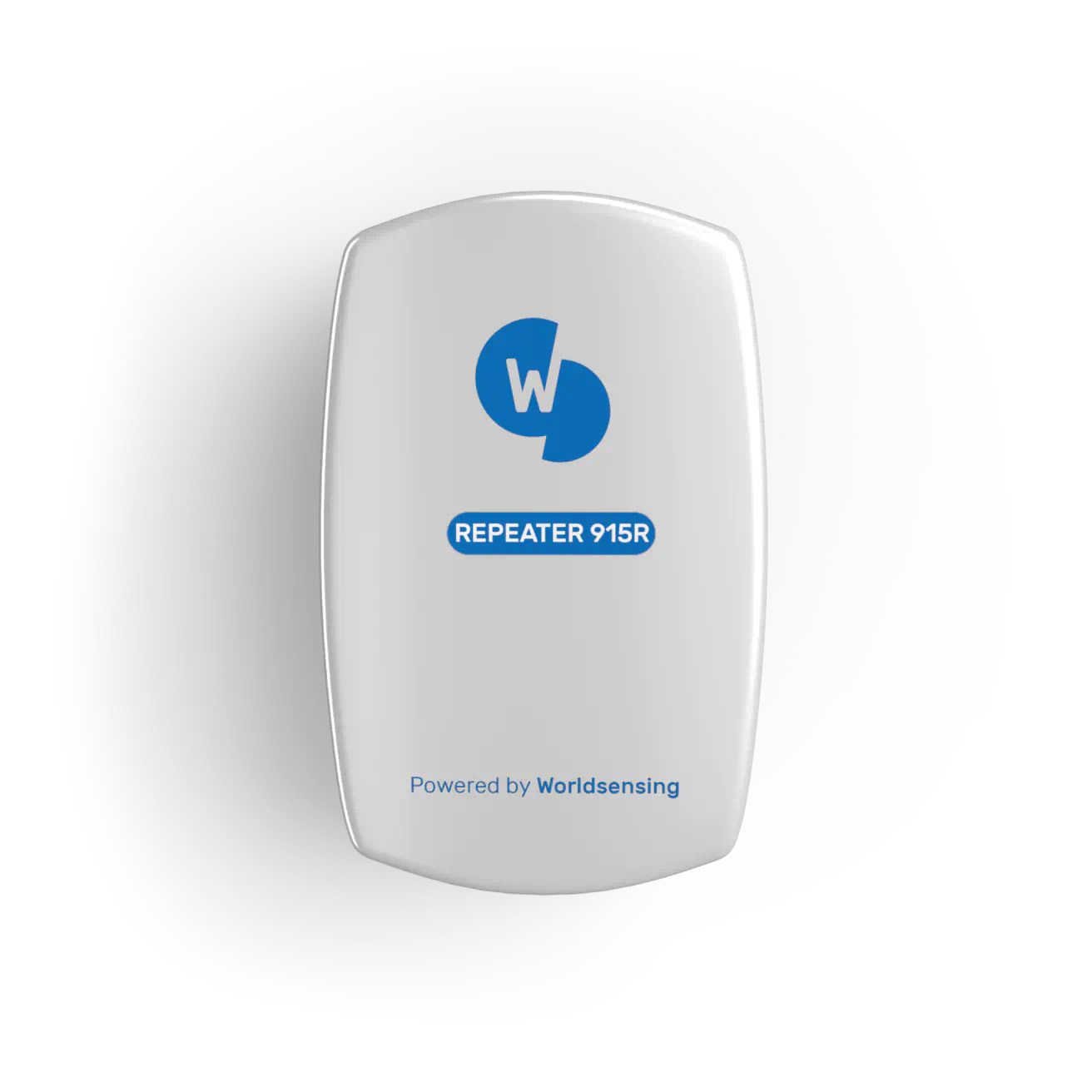

K20 Edge Repeater 915R

Technical Specifications

Radio communication protocol: LoRa
Supported unlicensed bands: 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America)
Antenna: Integrated internal antennas GPS, 4G, LoRa (peak gain=2,6dBi)
Maximum distance between hops: 150 m to 3 km / 0.1 mi to 1.83 m
Maximum number of hops: 8 hops
Power options: PoE both mode A and mode B (802.3af specifications); 5V through SB; PoE injector for indoor included in the kit
Mean power consumption: 4.5 W
Weather protection: IP67
Operating temperature: -40°C +60°C

Sensitivity

Node to Repeater/ Gateway: Down to -137 dBm (SF11)

Repeater to Repeater/ Gateway: Down to -127 dBm (SF7)

Communications performance

	Message Rate	Probability of transmission success
Default network	3.125 messages/min	> 99.7% μ ± 3σ
High demand network	8 messages/min	> 98.758% μ ± 2.5σ
