DMS-24
Dynamic Datalogger

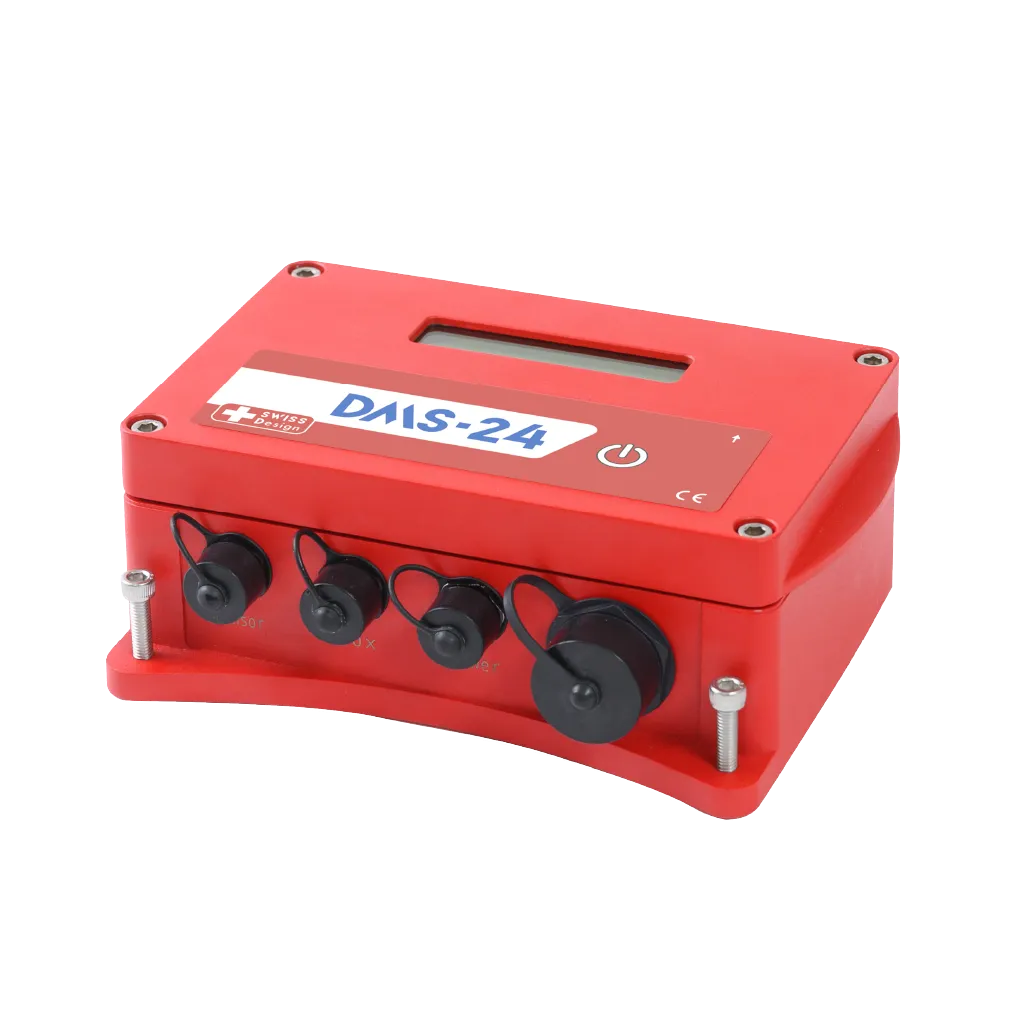

The Sanlien DMS-24 Dynamic Datalogger is a high precision datalogger with exceptional dynamic range exceeding 120dB.
For optimal performance, the DMS-24 is recommended to be paired with our advanced force balance accelerometers ‒ SHAKE FA135 and SHAKE FA335.
Download Materials
Product information:
Key Features
- Dynamic Offset
- Enhanced user experience by built-in web graphical user interface (GUI)
- Easy access to device settings and real-time data visualization
- Allowing users to fine-tune data logging parameters according to specific requirements
- Support for Modbus TCP and MQTT protocols
- Support real-time of local intensity scale
- Time synchronization via NTP
Applications
- Earthquake Early Warning System (EEWS)
- Rapid Structural Health Diagnostic (RSHD)
- Bridge monitoring
Technical specifications
- Sensor Type: Tri-axial FBA Accelerometer
- Sampling Rate: 50 sps, 100 sps, 200 sps, 400 sps
- Channel of Sensor: 4
- Offset Drift: 0.000001 g/°C
- Measuring Range: ±2 g
- Communication: RJ-45
- Selectable Sensitivities: 100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable)
- Operation Temperature: -20°C to 70°C
- Selectable Sensitivities: 5 V/g
- Storage: 16 GB (option to 64GB)
- Power Supply: 12 VDC
- Built-in Watch Dog Function: 10 s
- Full Scale Output: ±10 V fully differential at 50 ohm
- Network Module: 10/100Base -TX Ethernet Controller
- Bandwidth: DC – 100 Hz
- Algorithms: Pd, PGA, STA/LTA
- ADC Resolution: 24 bit
