Digital Data Logger

The Worldsensing Digital Logger is a robust, low-power, long-battery life device that connects to a wide catalog of digital sensors, streaming data wirelessly to information systems. Featuring long battery life and extended communication range, it provides a reliable solution for remote monitoring in isolated areas.

Download Materials

Datasheet

Product information:

Key Features

RS485 port Compatible with Modbus RTU and other proprietary protocols
Supports a wide range of digital sensors:
- Geotechnical sensors such as IPIs and MPBX
- Structural sensors such as load cells, liquid settlement systems and level sensors
- Environmental sensors such as weather stations, water quality probes and water level sensors

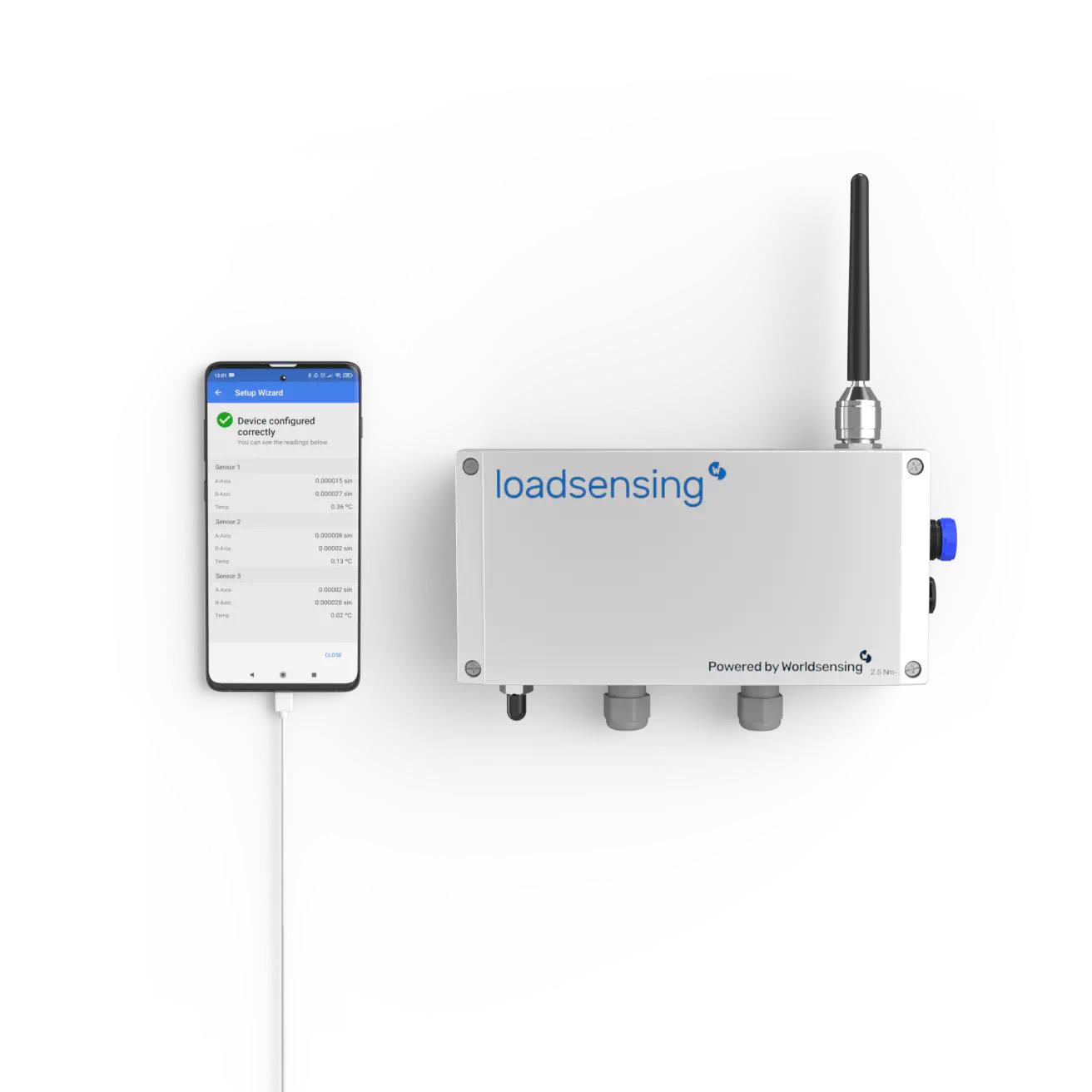

Advanced device management through mobile app for auto-setup, voltage threshold setup and addresses configuration
Compatible with other proprietary protocols from main geotechnical, structural and environmental sensor manufacturers
Long range wireless communication
Low power consumption for extended battery life
Seamless integration with digital sensors from leading geotechnical, geospatial, environmental and process sensor manufacturers

Applications

Geotechnical monitoring
- In-ground vertical and lateral displacement and deformations
- In-ground displacement between anchors within a borehole
- Stress changes in rock
- Pore water pressure and level
- Soil water tension and moisture
Structural monitoring: Loads and movement in beadings and joints
Environmental monitoring: Comprehensive weather parameters

Technical Specifications

Input types: RS485 full or half duplex supported
Output power: Regulated 12 V DC up to 200 mA in continuous operation. Maximum startup current peak
of 1.5 A, up to 50 ms
Supported protocols: MODBUS RTU and proprietary protocols
