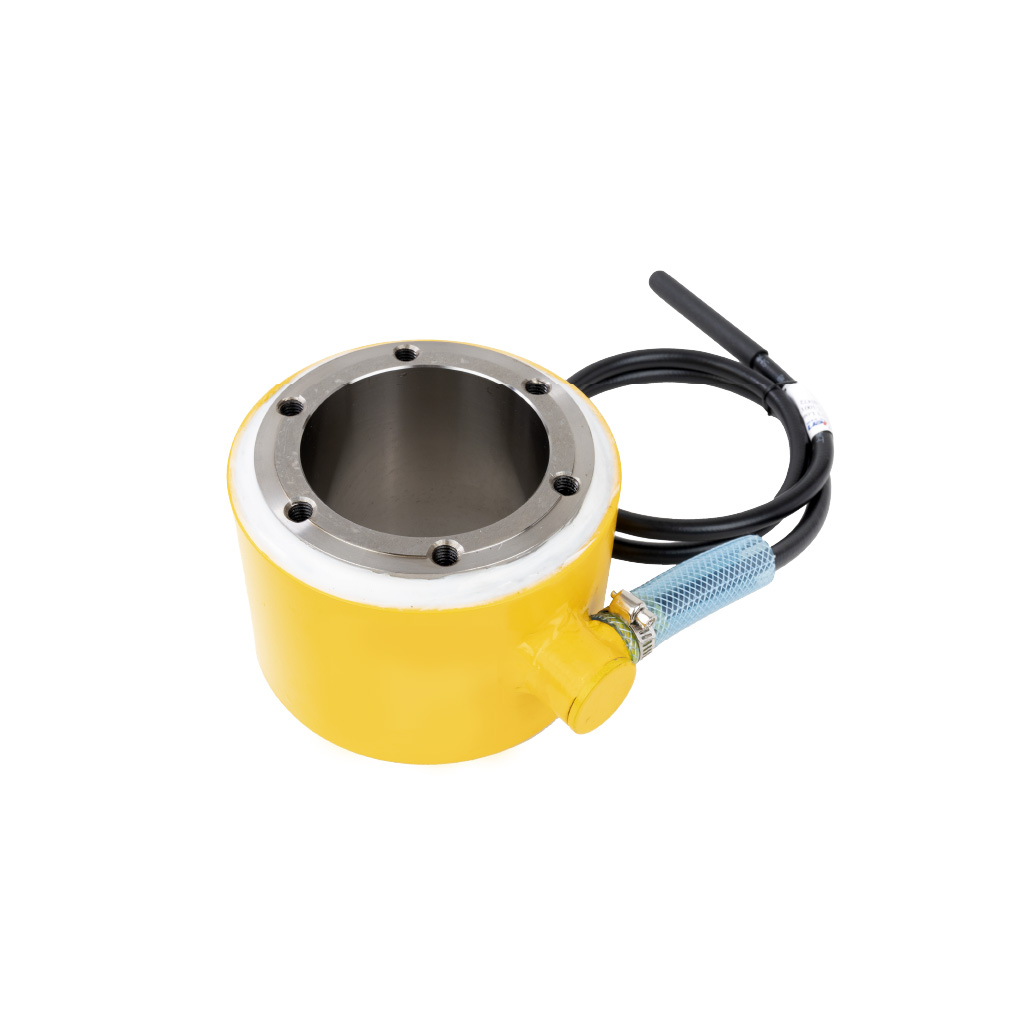

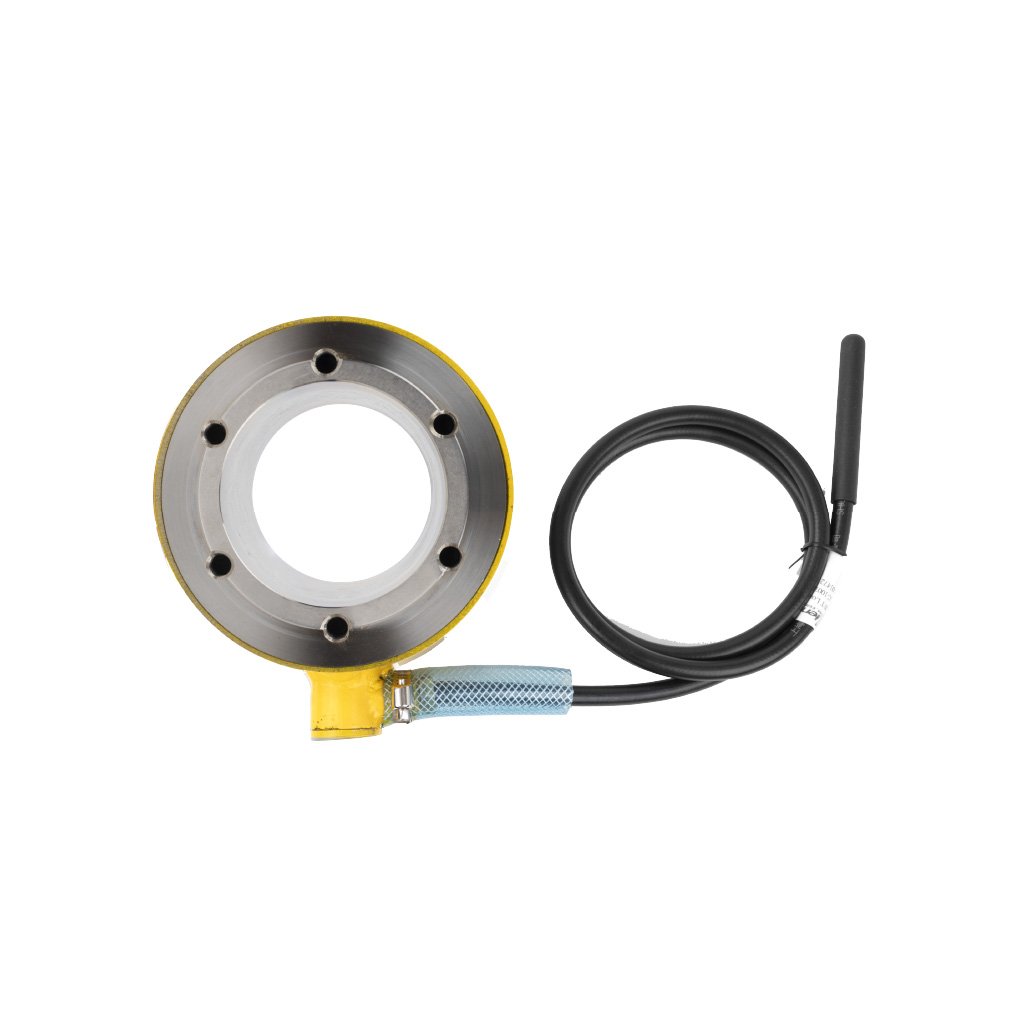

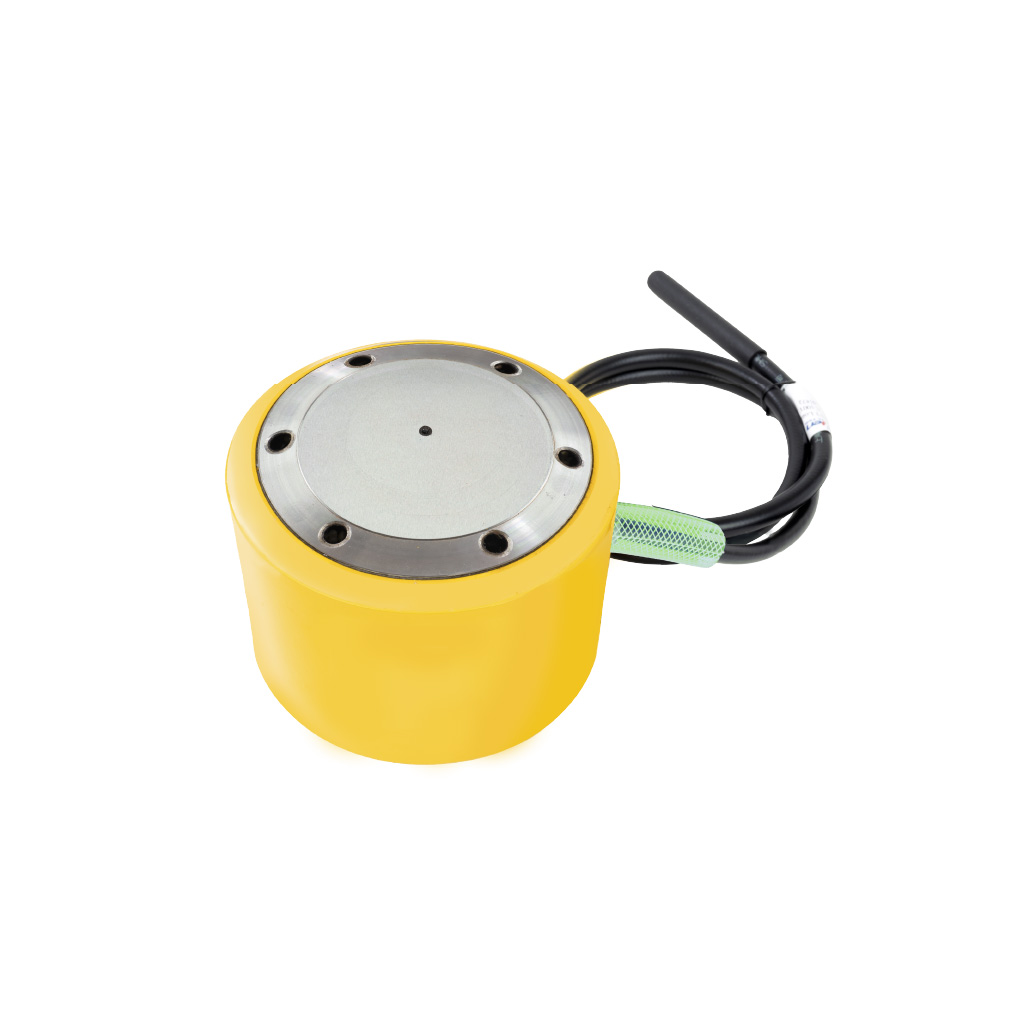

Annular/Solid Load Cell
The Sanlien Annular / Solid Load Cell is a reliable solution for accurate axial force measurement. Engineered with four active resistors, 350-ohm strain gauges evenly attached to the sensing element, the load cell delivers reliable and accurate readings. The serial bridge gives an output signal of the axial force measurement system, applicable to load tests of respective stresses.
Download Materials
Product information:
Applications
- Measurement of sectional stress of anchor bolt loading
- Measurement of sectional stress of prestressed anchors
- Measurement of sectional stress of tunnel bolts
- Wide range of applications in oil and gas, transportation, and construction.
Key Features
- Compatible with various dataloggers
- Load range from 10 to 1000 tons
- High accuracy and reliability
- Resistance to side load and bending
- Durable design for long-term reliability

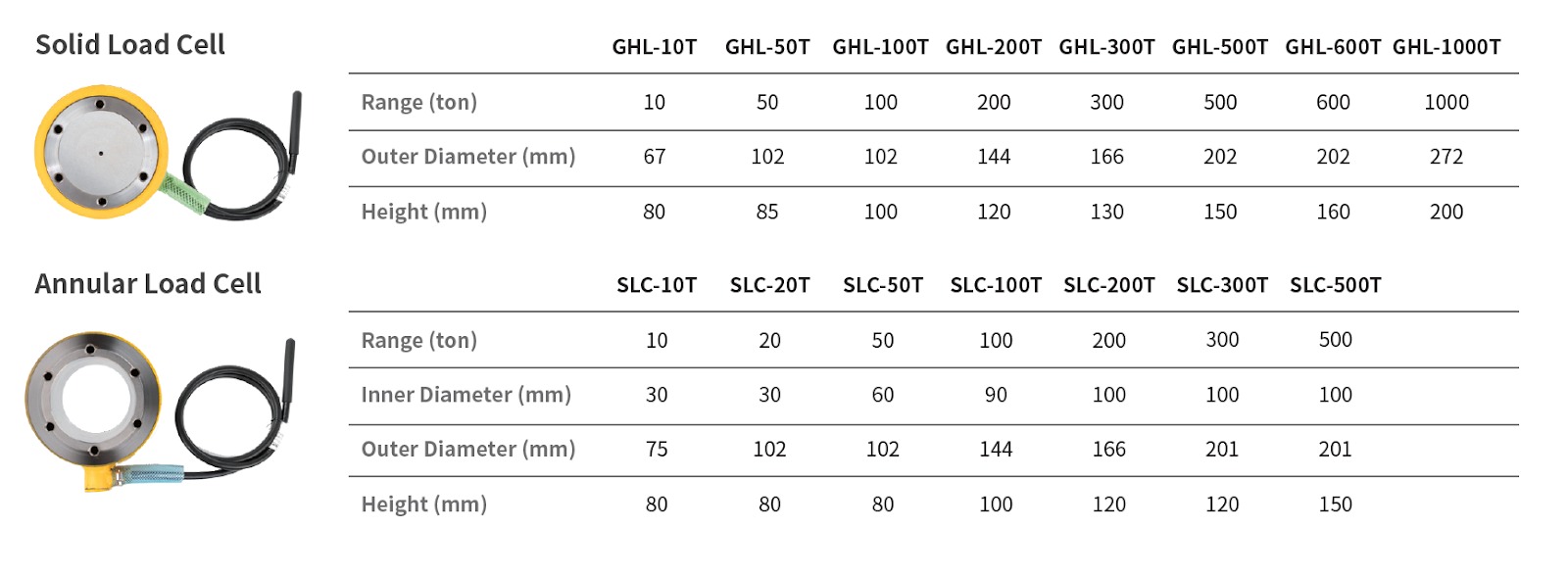

Technical Specifications
- Sensor Type: Resistant
- Max Pressure: 150 % R.O.
- Measuring Range: 10 – 1000 ton
- WorkingTemperature: -20°C to 100°C
- Nonlinearity: ±1% R.O.
- Inputs Resistance: 350 Ω ± 3.5 Ω
- Repeatability: 0.3 % R.O.
- Output Resistance: 350 Ω ± 5 Ω
- Rated Output: 2 mV/V ±1 %
- Insulation Resistance: 2000 MΩ
- Recommended Voltage: 2 – 10V
