Key Features

• Supports private, single-network local deployments and redundant, multi-network cloud deployments with Worldsensing’s CMT software
• Provides connectivity in areas without internet coverage using LoRa/LoRaWAN radio communications
• Extended radio range of up to 15km coverage with multi-spreading factor technology for better coverage and network efficiency
• Global LoRa coverage supporting ISM sub-GHz unlicensed radio bands for all international regions
• Highly scalable with up to 30 messages per minute on a single-gateway deployment using an Edge Gateway and up to 300 messages per minute on multi-gateway deployment using a Cloud Gateway
• Carrier class design featuring wireless radio performance, purpose-built IP67 rugged enclosure and flexible modularity

Applications

• Ideal for outdoor construction sites, tailings dams, bridges, buildings, and railway tracks
• Ideal for remote monitoring sites, tunnel and mining operations, large-scale geotechnical networks, and civil infrastructure projects

Variants

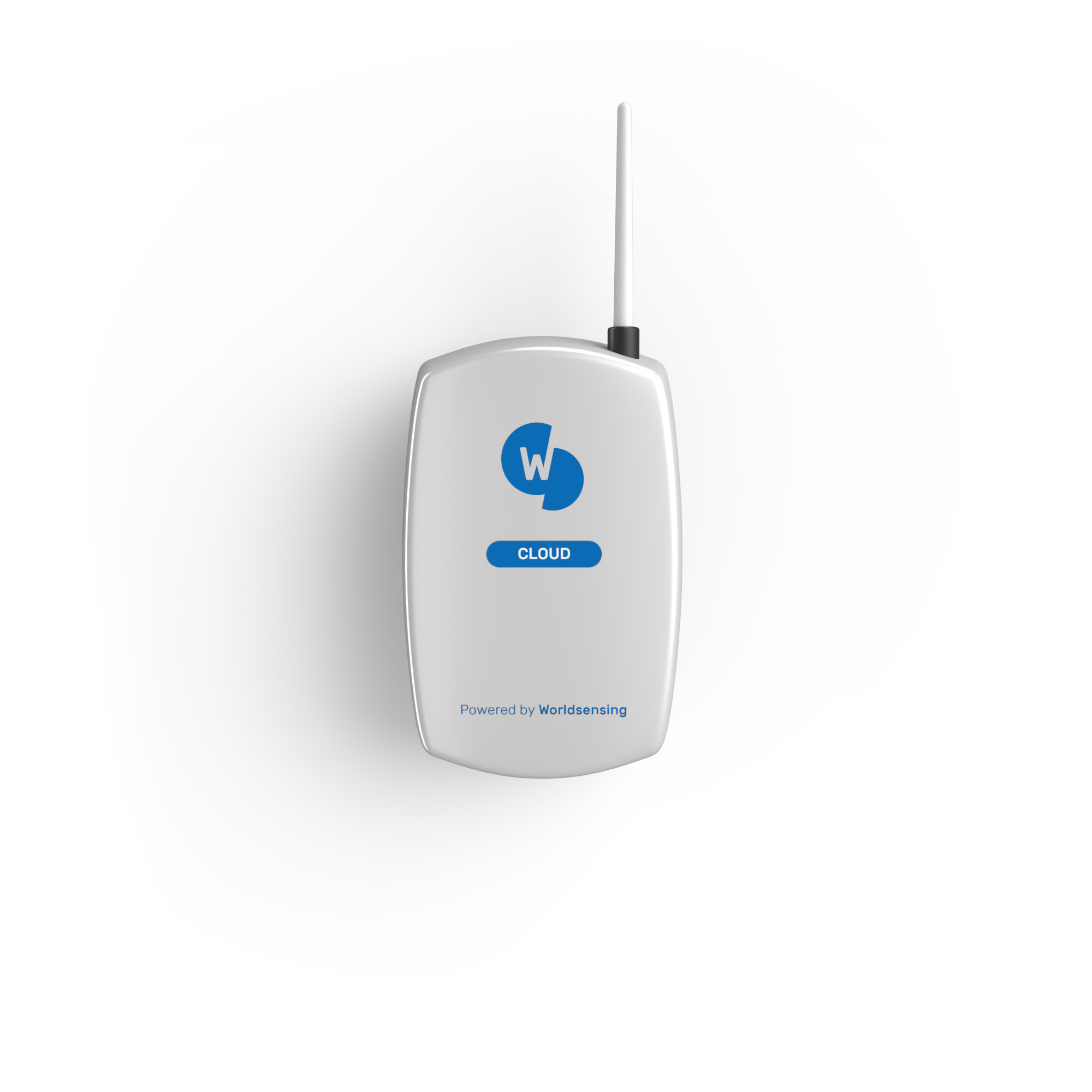

• 4G Rugged Gateway Cloud

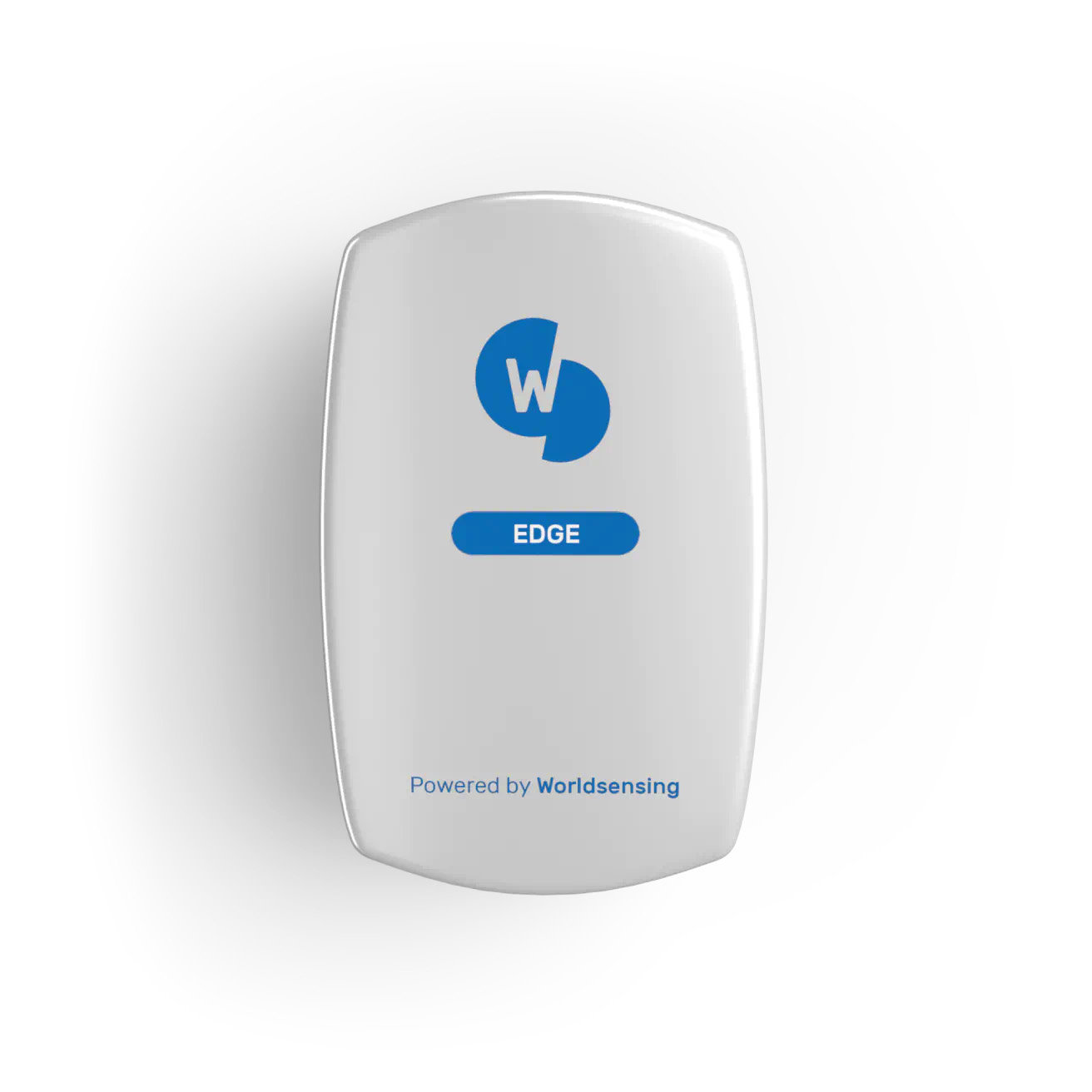

• 4G Rugged Gateway Edge
• 4G Rugged Gateway Edge 915R

Technical Specifications

• Radio communication protocol: LoRa/LoRaWAN
• Backhaul connectivity: 4G Worldwide module with 3G/2G fallback; Ethernet (RJ45)

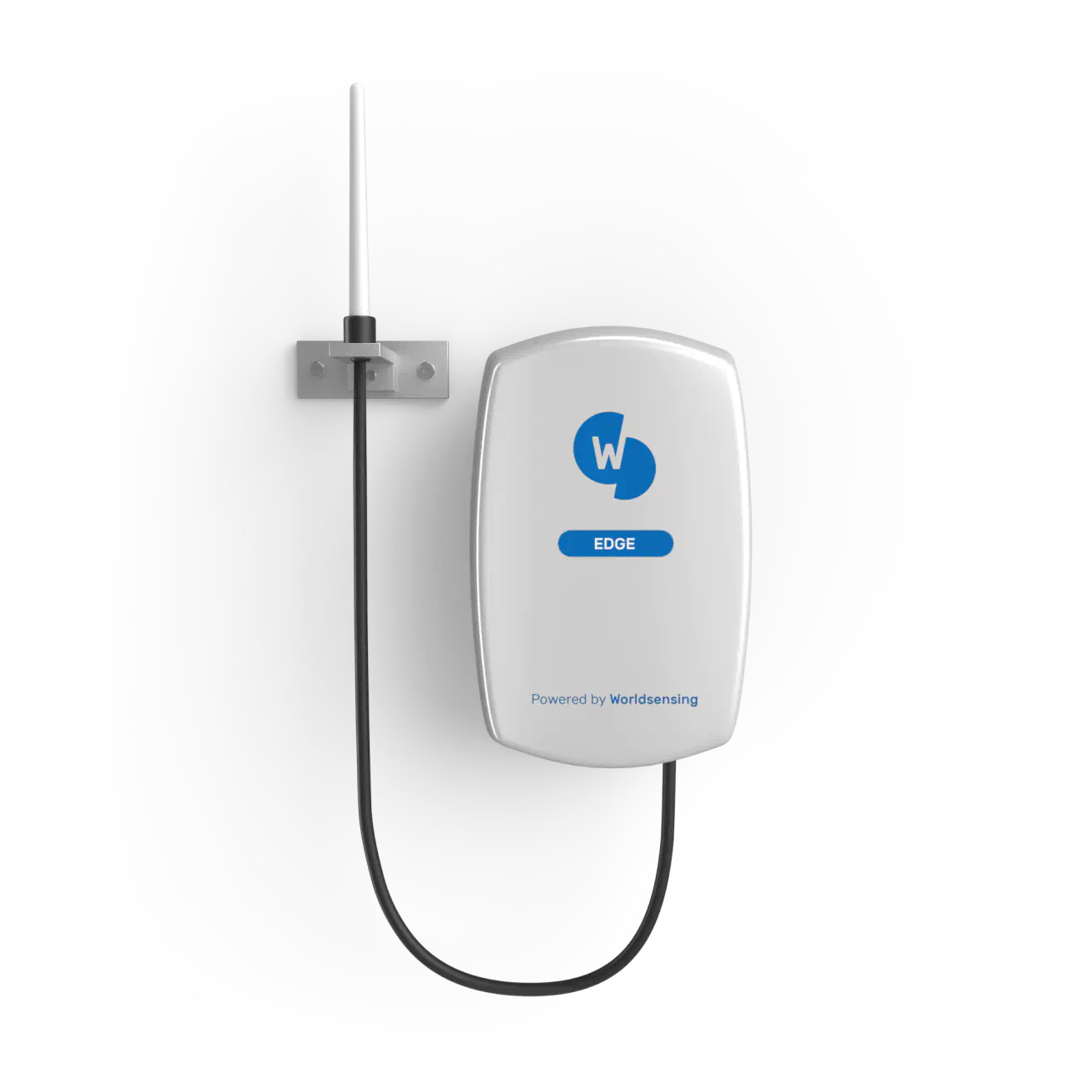

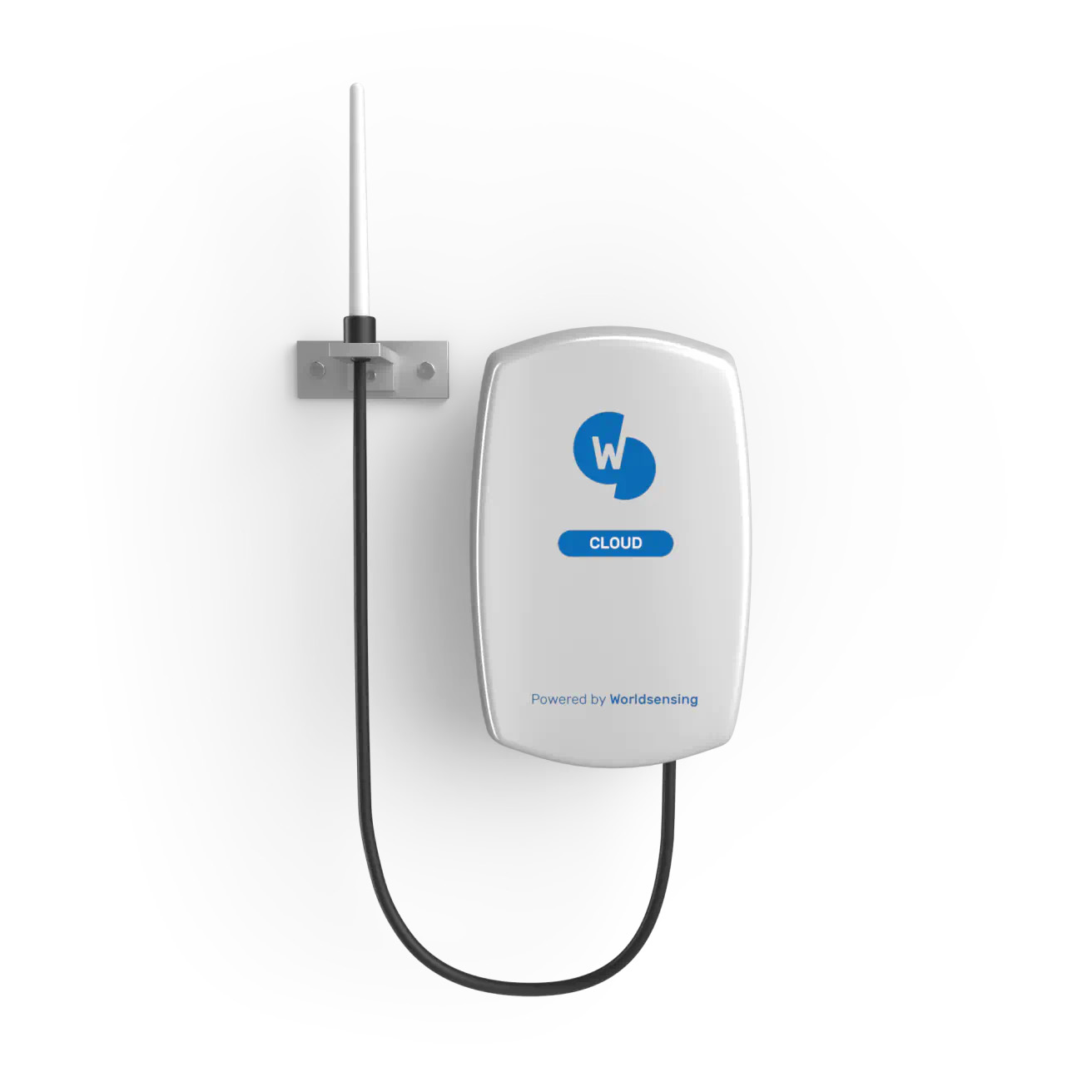

• Antenna: Integrated internal antennas GPS, 4G, LoRa (peak gain=2,6dBi), Optional external antenna
• Supported unlicensed bands: 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America)
• Rx sensitivity: -141 dBm (SF12)
• Weather protection: IP68
• Operating temperature: -40°C +60°C
• Local access: Via USB-C port

Device interfaces

Ethernet: Waterproof RJ45

Cellular: Waterproof Mini SIM Card slot

Power requirements

Power options: PoE both mode A and mode B (802.3 af specifications)
5V through USB-C
PoE injector for indoor use included in the kit
Mean power consumption: 4.5 W
