ALPHA

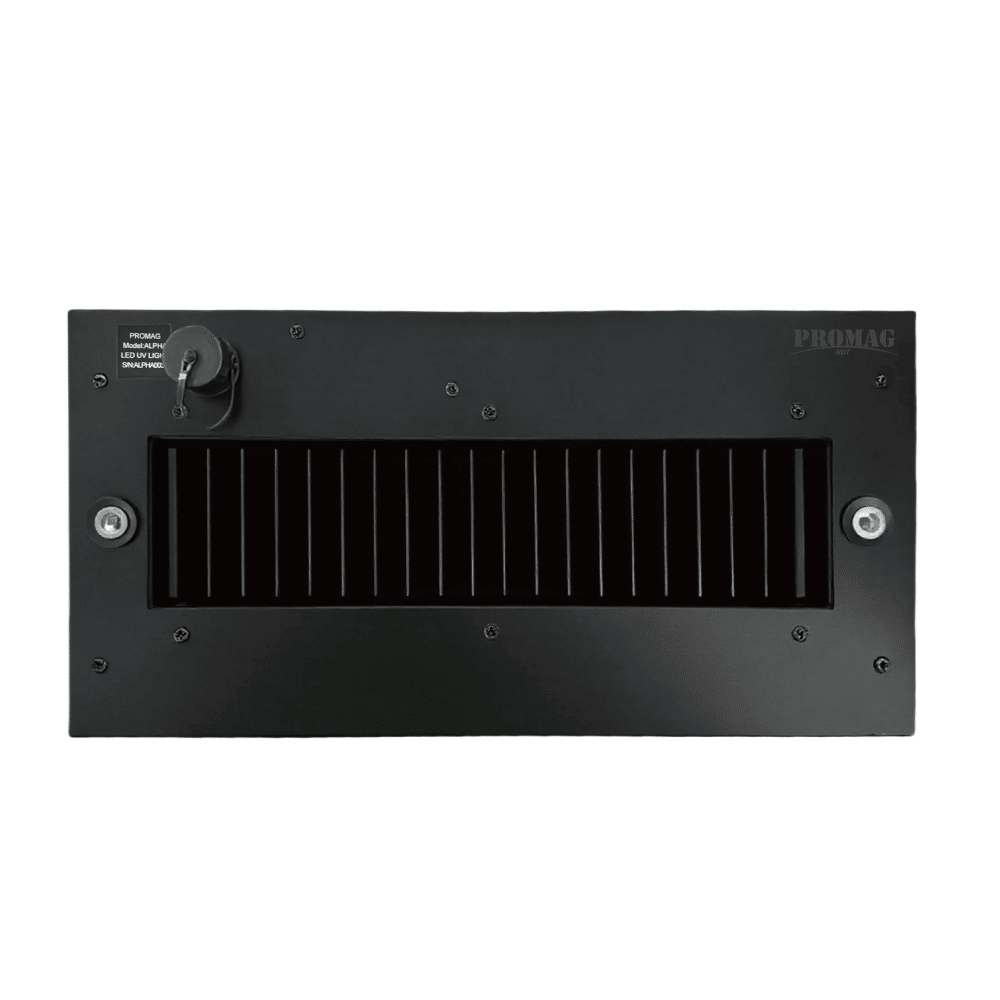

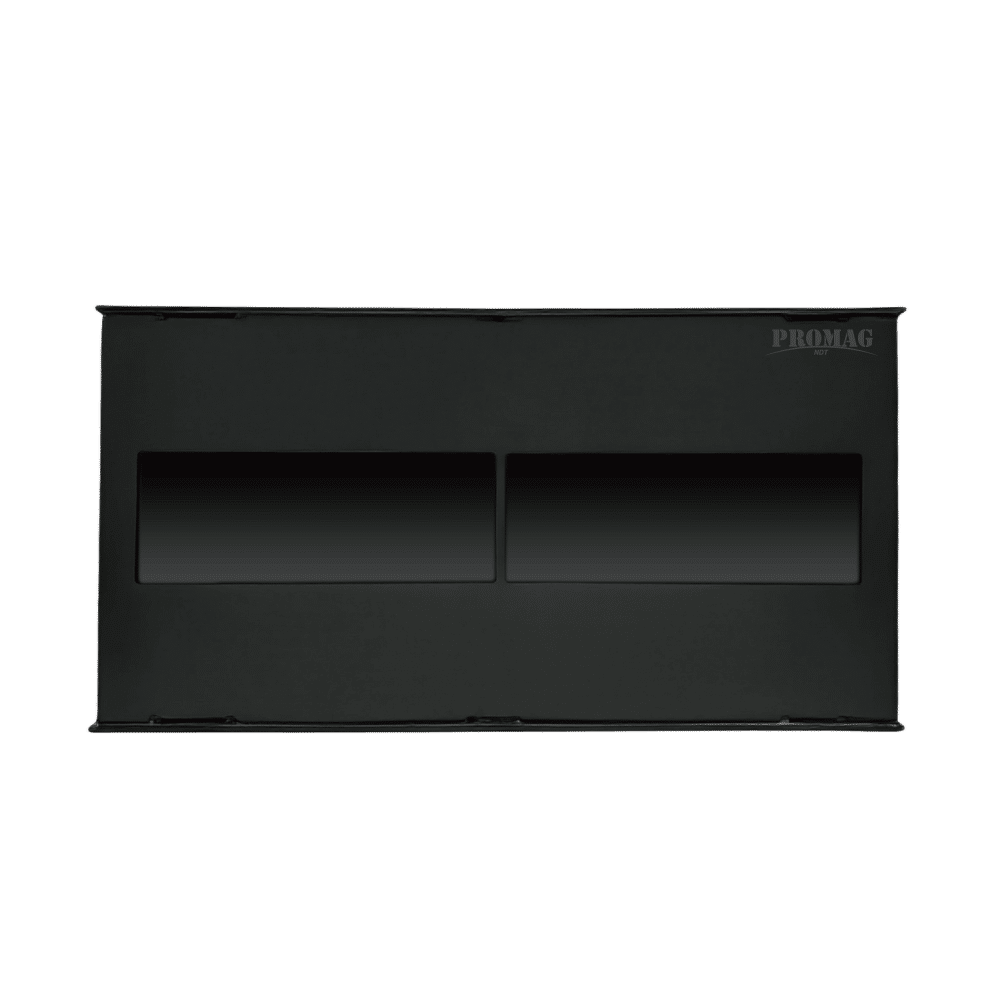

The PROMAG ALPHA LED UV-A Overhead Lamp is a versatile inspection lighting solution designed for applications requiring dependable performance, flexibility, and ease of operation. Delivering uniform UV-A illumination and precise intensity monitoring, it supports accurate inspection processes across a variety of industrial environments.

Download Materials

Datasheet

Product information:

Key Features

Tested and certified to comply with ASTM E3022-18
Remote control functionality allows convenient operation and adjustment
Powerful and uniform illumination, suitable for both confined spaces and large inspection areas
IP64 rating ensures dust-tight & water-resistant for field durability
Energy-efficient operation with low heat generation
Safe and pure UV-A emission with no UV-B or UV-C output
Lifespan of over 30,000 hours under normal operating conditions
Optimized UV-A spectrum at 365 ± 5nm for highly accurate inspections
Lightweight and compact design for easy installation and integration
Digital intensity display enables precise monitoring

Applications

Non-Destructive Testing (NDT) inspections
Fluorescent Penetrant Inspection (FPI)
Aerospace component inspection
Manufacturing quality assurance and quality control
Weld and surface defect detection
Inspection of small components and large assemblies
Laboratory and industrial inspection environments

Technical Specifications

Power Supply: Mains powered
Light Source: LED UV-A
Dimension(L×W×H): 33×17×9 cm (12.99×6.69×3.54 in)
Weight: 2,400g (5.29 lb)
Visible Light in UV-A Mode (38cm): ≤2 foot-candles (20 lux)
Power Requirements: 90–240 VAC

*The outcome may vary depending on the actual usage conditions.
*Once the product is disassembled, the waterproof warranty is void.

S/N	P7728	P7732	P7736
Type	ALPHA-AS1 (UV-A Only)	ALPHA-SD (UV-A Only)	ALPHA-AD (UV-A + UV-A Adjustable+WH)
UV-A Intensity at 15'' (38cm)(μW/cm²)	<5,000	≥8,000	0~8,000
UV-A Coverage Area at 15in (38cm) at minimum 1000μW/cm²	15.75 x 13.8 ± 0.8 in ( 40 x 35 ± 2 cm )	23.65 x 19.7 ± 0.8 in ( 60 x 50 ± 2 cm )	23.65 x 19.7 ± 0.8 in ( 60 x 50 ± 2 cm )
RRES 90061	Yes
AITM6-1001	Yes
ASTM E3022	Yes	Yes	Yes
